- ➤ Used SCHRODER-FASTI FASTI 509-40-6 | Profile Bender

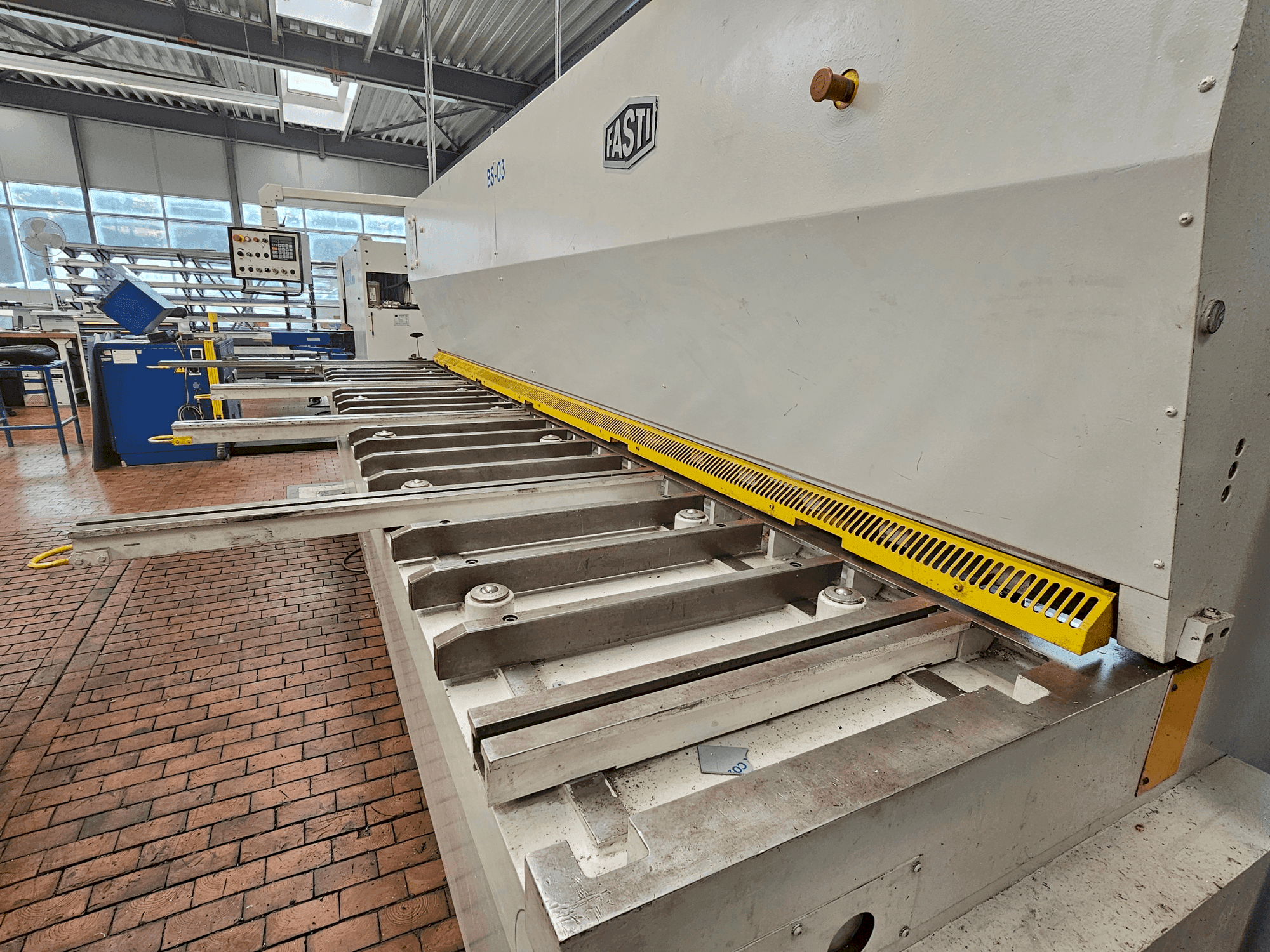

This SCHRODER-FASTI FASTI 509-40-6 was manufactured in 1997. A Hydraulic shearing machine capable of handling aluminum up to 8mm, steel up to 6mm, and stainless steel up to 3mm. Minimum stop dimension is 15mm. A solid choice for shaping various metals, the SCHRODER-FASTI FASTI 509-40-6 machine we have for sale. Contact us for further details.
Overview
- brand: SCHRODER-FASTI
- year: 1997
- MODEL: 509-40-6
- application type: Rolling
- Location: Germany
- machine type: Profile Bending Machine
Additional Information
Additional equipment
- Front-operated motorised fence
- Right-angled side stop 90° with tilt stop
- 2 drop cam stops in T-slot guide
- Table extensions with T-slots
- Operating tool
Machine Benefits
Technical Machine Benefits
- Minimum stop dimension: 15 mm
- Construction: all-steel welded construction
- Cutting technology: / double-edged, multi-part blades with 87° wedge angle / stepless cutting length adjustment / cutting gap adjustment (can be read to 1/100 mm using a dial gauge) / cutting line display with silhouette
- Drive: hydraulic with oil filling
- Control system: o electric control in accordance with din en 60204-1 / operating modes: single stroke, continuous stroke, partial stroke, jogging
- Projection on the side stand: 50 mm
- Dimensions (approx. ) for 509-40-6: a (total length): 4540 mm /b (table width): 1885 mm /c (table depth): 1645 mm/ d (cutting length): 4300 mm/ h (height of work surface): 2329 mm /k (total machine height): 1430 mm
- Side stand projection: 50 mm (standard)
- Foundation fastening: composite anchor hva m16x125 with mortar cartridges (drill Ø 18 mm) / concrete strength class min. B25 required.
- Cutting performance: shear angle: large angle = lower resistance, higher performance. / small angle = higher resistance, lower power // max. Sheet thickness: o dependent on material strength (see diagram in document). O recommended strip width: 12-15 × sheet thickness for low-torsion cuts
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
