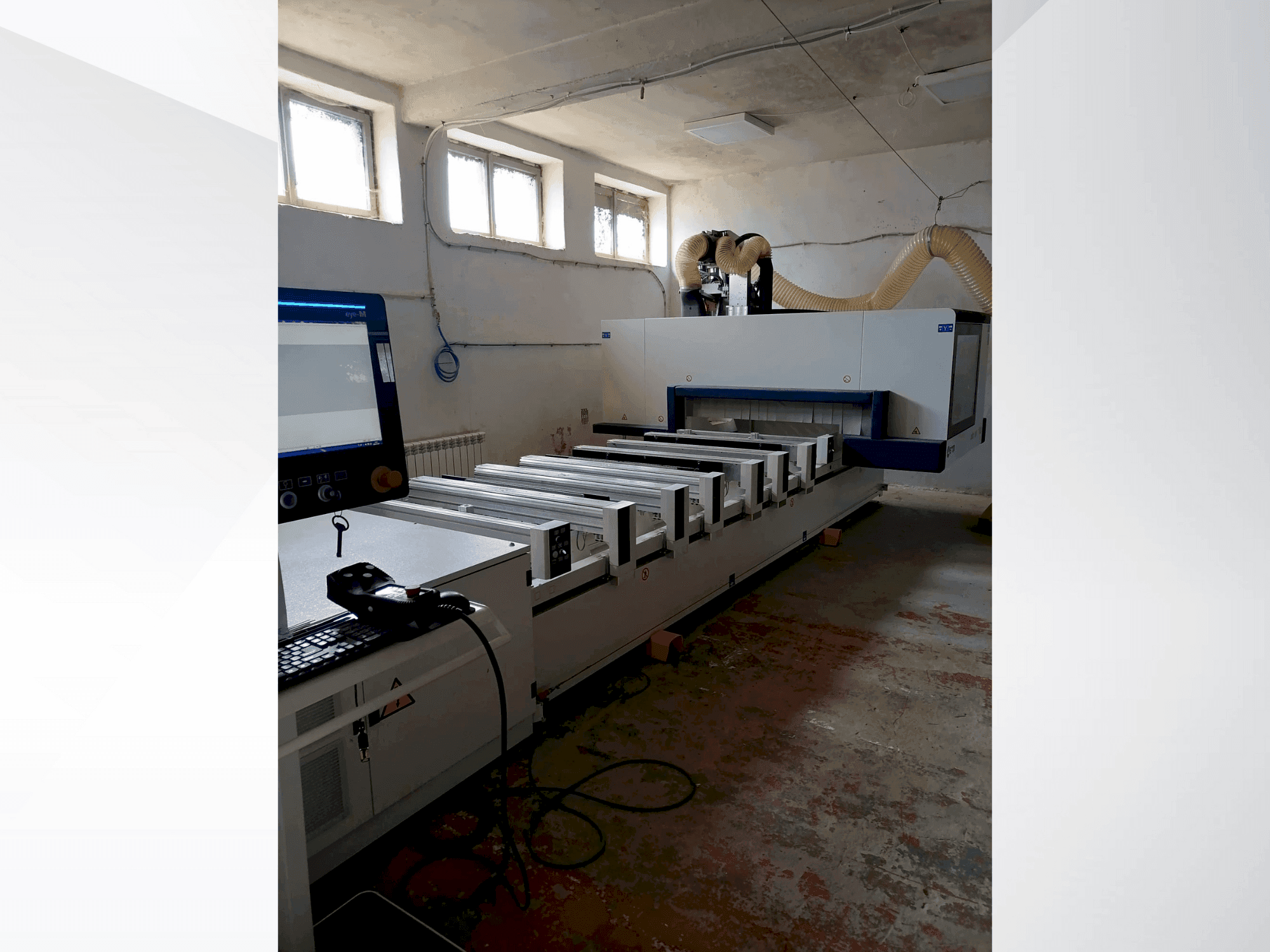

This 3-axis SCM Morbidelli M100 woodworking machine was manufactured in 2019. It features a working area of 3110x1320 mm, with a pass-through height of 180 mm. Equipped with a vertical milling spindle of 9.5 kW and a speed range of 1500-24000 rpm, it also includes a tool magazine with a capacity for 14 tools. The integrated saw and multiple drilling units enhance versatility. A great opportunity to buy this SCM Morbidelli M100 woodworking machine. Contact us for further details regarding this woodworking machine.
Overview
- brand: SCM
- year: 2019
- MODEL: Morbidelli M100
- production hours: 7300
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Router
- availability: Immediately
Technical Information - SCM Morbidelli M100
Main drive
- Spindle speed range: 1500-24000 (Vertical milling spindle), 8000 (Drilling Head) 1/MIN
- Spindle motor power: 9.5 kW
- Spindle bore: 10 mm
- Tool taper: HSK 63F
- Number of axis: 3
Movement
- X-AXIS Movement: 3110 mm
- Y-AXIS Movement: 1320 mm
- Z-AXIS Movement: 180 mm
Tools
- Max weight: 8 kg
- Max tool diameter: 280 mm (saw), 180 mm (cutter or angular unit)
Additional Information
- Technical Machine Benefits:
- - Drilling head f23l with 13 independent vertical spindles and 5 horizontal drilling units
- - Integrated saw along x-axis
- - Programmable right/left rotation air cooling system with coaxial fan ceramic bearings
- - Distance between positions: 7 positions at 110 mm, 7 positions at 130 mm
- - Positioning accuracy (repeatability) x/y/z-axis: ± 0. 003 mm
- Qualitative Machine Benefits:
- - Work table tv flex with areas of work: a (i offset) and d (l offset)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
