Used SEI LASER X-Type 1610 - 2016 - Laser Cutting Machine for sale | gindumac.com

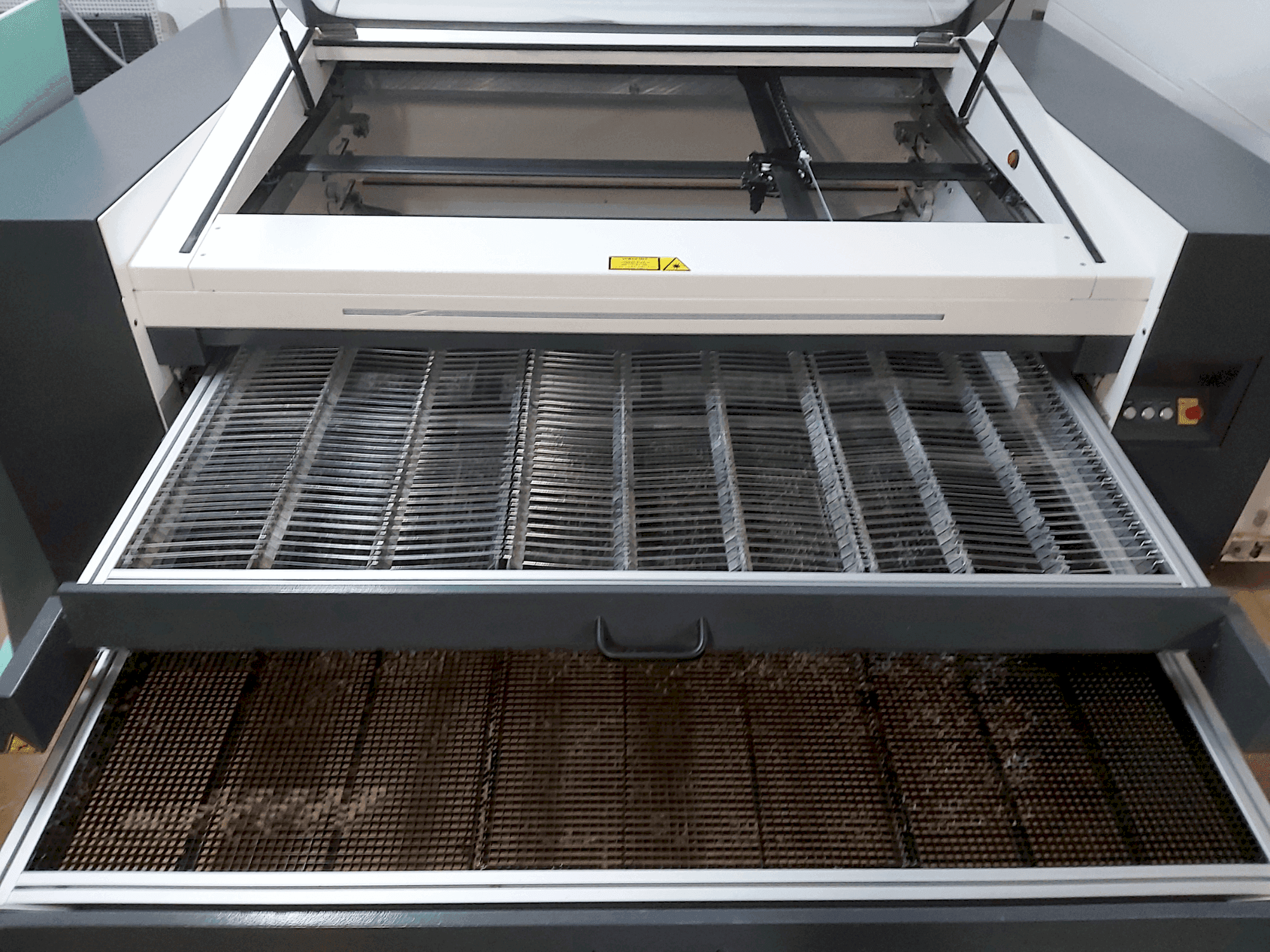

This 3-axis Sei SPA X-Type 1610 laser cutting machine was manufactured in 2016. It features dual tables allowing for simultaneous loading and unloading during processing, and a standard cutting head with a compressed air requirement of 6 bar. The machine can handle a maximum material weight of 40kg and includes a controlled motorized table stroke for precision. A great opportunity to buy this Sei SPA X-Type 1610 laser cutter. Reach out for more information about this machine.

Overview

brand: SEI
year: 2016
MODEL: SPA X-Type 1610
production hours: 270
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine

Additional Information

Additional equipment

Standard cutting head: compressed air 6 bar
Two tables for loading and unloading
Linear motors and carbon fiber traverses
Liquid cooling for laser source
A Herding Delta 1500-10/9 with multicoater

Machine Benefits

Technical Machine Benefits

Axis x-y; max. Working speed 3000mm
Axis x-y; max. Laser running speed 3000mm
Axis x-y accuracy 0. 001mm
Z-axis stroke: 210 mm with dual table, 80mm with mono table
Max. Scanning speed: 3000mm /s
The machine has 4 linear motors, two for the x-axis and two for the y-axis
According to the operating instructions: resolution x-y axes: 0. 001 mm / short-term repeatability: +/- 0. 01 mm
Precision of the camera system (optional, not currently installed in this machine): +/- 0. 1 mm per linear metre of displacement (after calibration of the ccd)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
