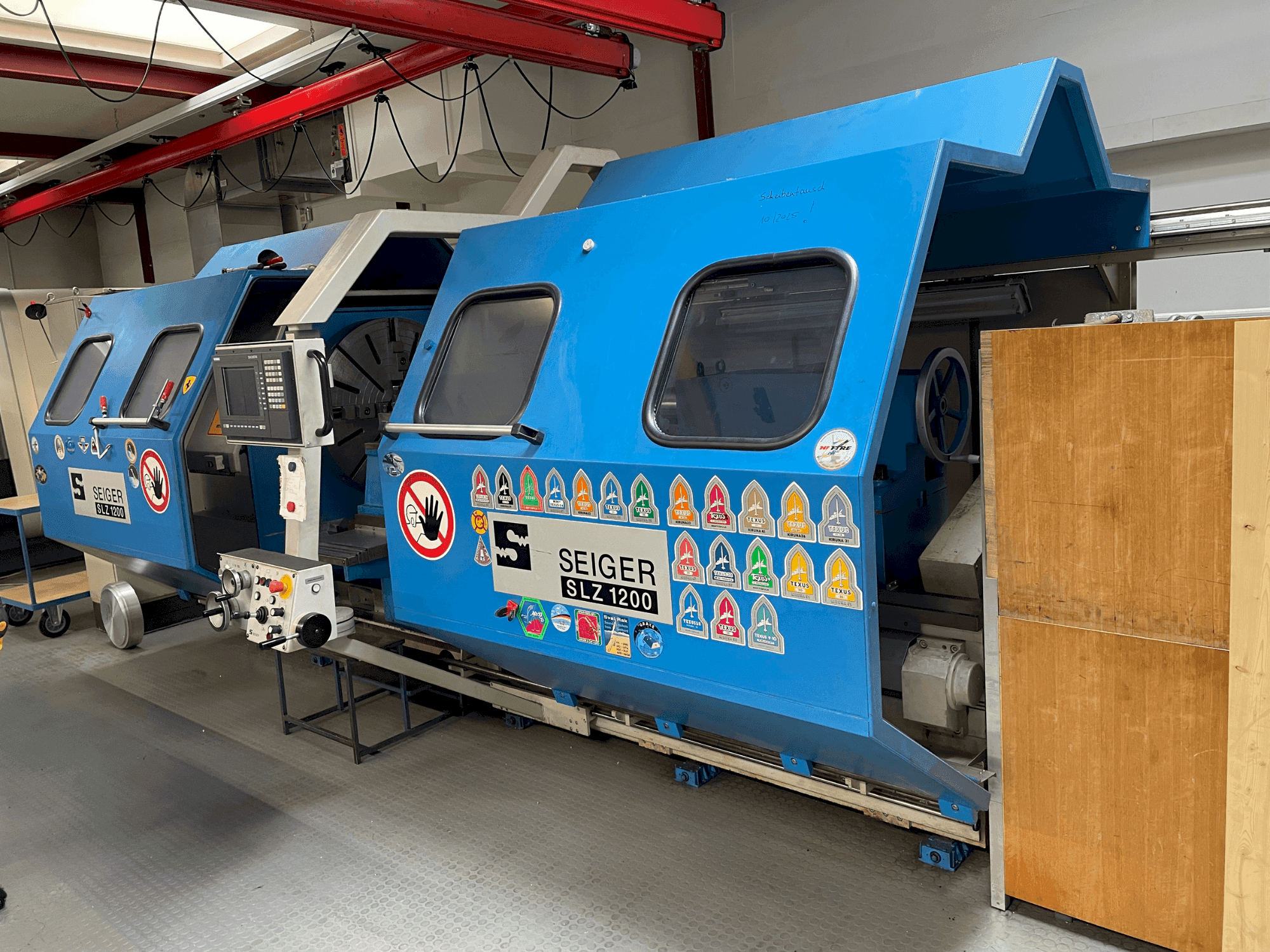

SEIGER - SLZ1200DE-TUR-SEI-1999-00001

Additional Equipment

• - Chip guard and movable protective hood with viewing window / Coolant device / Quadruple steel holder for single-handed operation
• - High accuracy and rigidity with cylindrical roller bearings / Automatic central lubrication of guideways and spindle nuts / Adjustable three-phase drives and servo drives for precision adjustments
• - Compliance with DIN 8608 and VDE 0100/0113 standards

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ac drive with 2-stage gearbox / drive power: 37/52 kw / total speed range: 3. 55-710 1/min / total speed range: 3. 55-710 1/min
  • - Feed drive: three-phase servo drive / feed force longitudinal: 30000 n / feed force flat: 20000 n / rapid traverse lengthwise/plane: 6/3 m/min
  • - Between the centers weight: 7000 kg / between the centers weight: 7000 kgzwith additional setting vice weight: 8500 kg / flying in the faceplate (with center of gravity distance 250 mm) weight: 2200 kg
  • - Working range center distance: 2000 mm / circulation over bed: 1250 mm / circulation over facing slide: 850 mm
  • - Turning tool cross-section (height x width): 40 x 40 mm / turning spindle spindle bore: 106 mm
  • - Tailstock quill: 160 mm / quill stroke: 315 mm / inner taper of the quill: mk 6
  • - Machine as transport unit with 3000 mm center distance: approx. 12000 kg
  • - Center distance 2000 mm: 7900 x 3500 x 2200
  • - Operating voltage: 400 v / 50 hz / control voltage: 24 v direct current / device supply voltage: 220 v/50 hz / protection class ip 54
