➤ Used Sepro Success 11 For Sale | gindumac.com

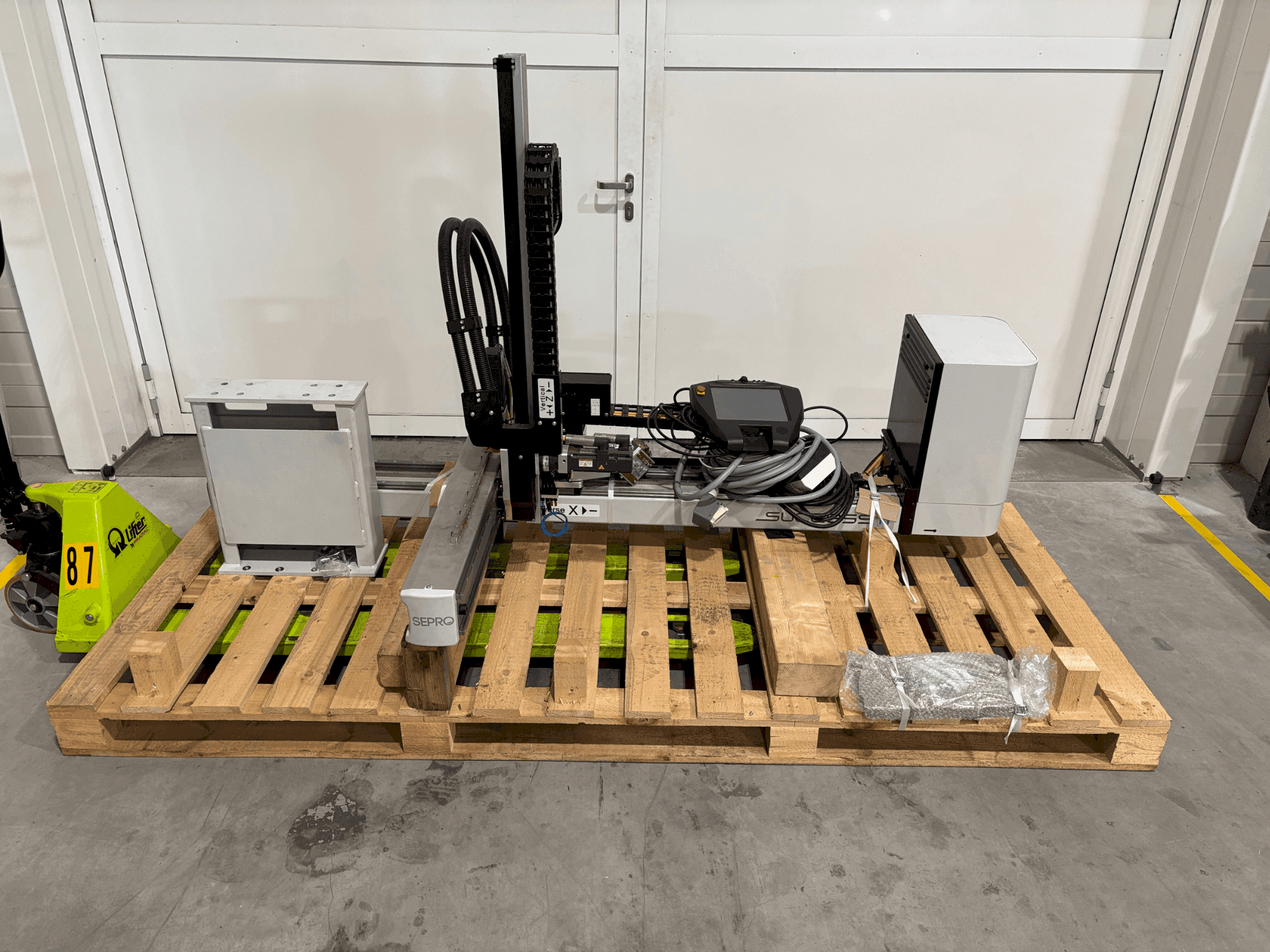

This Sepro Success 11 was manufactured in 2020. A demo unit with only 378 hours of use, it's in very good condition, having been used only for exhibitions. This work piece handling system features a Visual2 control system, operates within a temperature range of +5°C to +40°C, and follows Cartesian coordinates. Ideal for load transport applications. Contact us for more information about this machine.

Overview

brand: Sepro
year: 2020
MODEL: Success 11
production hours: 378
application type: Other Automation Equipment
Location: Germany
machine type: Work Piece Handling System

Technical Information - Sepro Success 11

Dimensions

Machine Weight: 203 kg

Additional Information

Additional information

External Dimensions (retracted): 2425 x 1190 x 1495 mm
Control System: Visual2
Operating Voltage: 3x400V to 3x480V±10%
Cabinet Weight/Dimensions: 36 kg / 400 x 360 x 636 mm
Cabinet Protection: IP22; IK07
Horizontal Travel (X-Axis): 1500 mm Stroke, 2.00 m/s Speed
Demolding Stroke (Y-Axis): 500 mm Stroke, 2.00 m/s Speed
Vertical Stroke (Z-Axis): 1000 mm Stroke, 3.00 m/s Speed
Rotation R1: 90° Pneumatic
Rotation R2: 180° or 0−90° Pneumatic
Pneumatic Operating Pressure (Nom.): 6 bar ±10%
Max. Permissible Pneumatic Pressure: 7 bar
Nominal Air Requirement: 140 l/min
Max. Momentary Air Requirement: 400 l/min
Sound Pressure Level (L Aeq): 70 dBA
Application Area: Load transport
Structure: Follows Cartesian coordinates
Operating Temperature: +5°C to +40°C
Max. Altitude: 2000 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
