Sigma - EK 110/50HR-MIL-SIG-1985-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Sigma EK 110/50 For Sale | gindumac.com

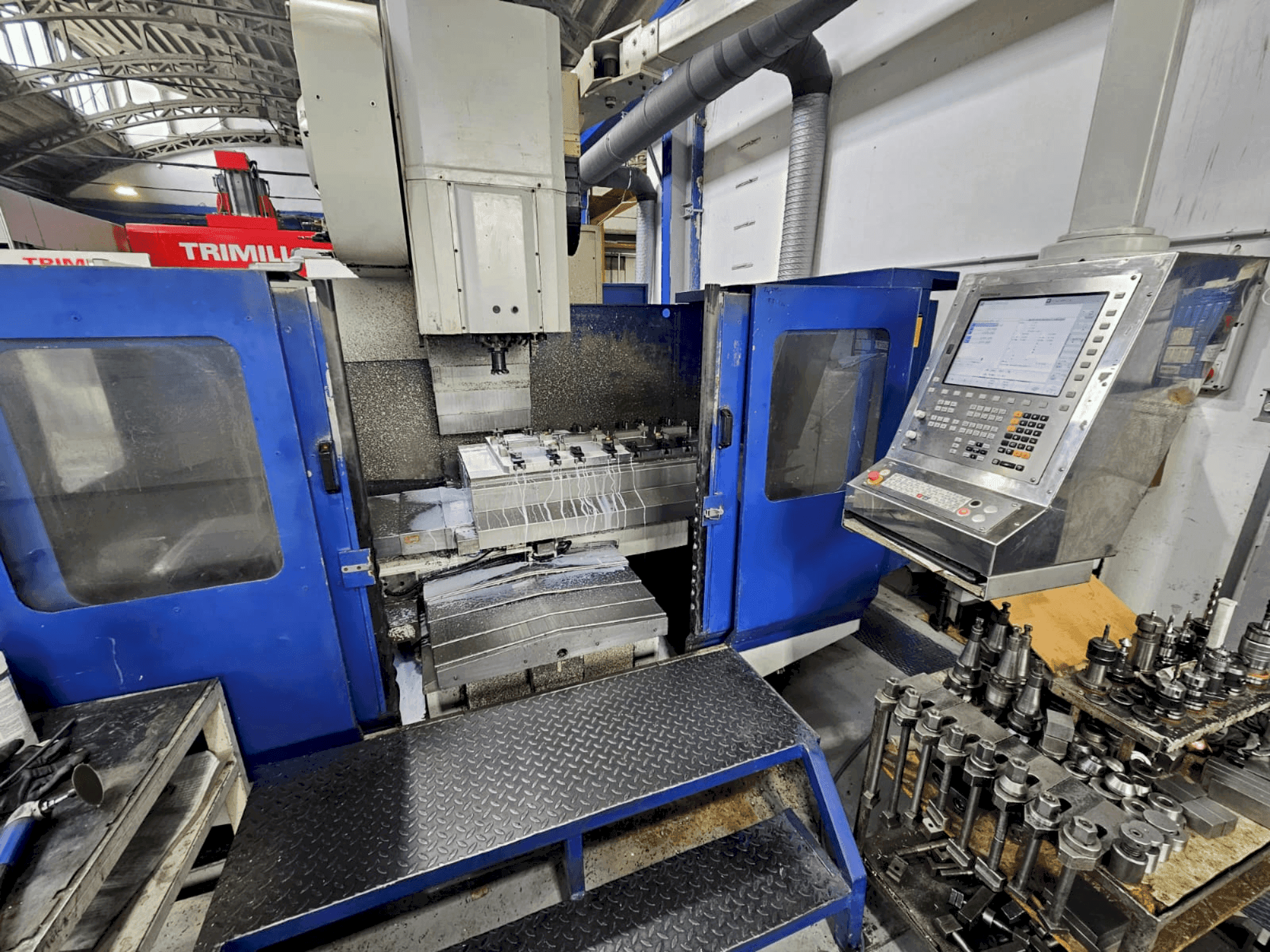

This 3-axis Sigma EK 110/50 CNC milling machine was manufactured in 1985 and fully refurbished in 2015. It features a robust table size of 1400 x 650 mm, capable of handling a maximum load of 2500 kg. Equipped with a high-capacity tool magazine holding up to 40 tools and rapid feed rates up to 15,000 mm/min, this machine ensures efficient and precise milling operations. If you are looking to get high-quality milling capabilities, consider the Sigma EK 110/50 machine we have for sale. Contact us for more information.
Overview
- brand: Sigma
- year: 1985
- MODEL: EK 110/50
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Sigma EK 110/50
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: tnc 320
Dimensions
- Machine Depth: 5900 mm
- Machine Height: 3266 mm
- Machine Weight: 12800 kg
- Table Length: 1400 mm
- Table Load: 2500 kg
- Table Width: 650 mm
Movement
- Number of Axes: 3
Additional Information
Additional equipment
- Tool Magazine: Type: Random with Fixed Position Double Clamps ISO 50 DIN 69871-A
- Tool Capacity: 40 tools
- Max Tool Diameter (with adjacent tools): 120 mm / Max Tool Length: 200 mm / Max Tool Weight: 20 kg
- Tool Change Time: Tool-to-Tool Time: 5 sec / Chip-to-Chip Time: 11 sec
- Connected Load: 36 kW / Coolant Pump Capacity: 250 l/min / Coolant Tank Capacity: 320 l
- Hydraulic Tank Capacity: 80 l / Compressed Air Consumption: 0.1 m³/h / Compressed Air Connection: 0.50-0.60 Mpa
- Spindle and Drive: Spindle Nose/Table Distance (min/max): 770 mm / Spindle Axis/Guides Distance (with telescopic cover): 715 mm
Machine Benefits
Qualitative Machine Benefits
- High precision and accuracy due to advanced optical measurement system and siemens controllers.
Technical Machine Benefits
- Cutting performance: material: steel 60-70 kg/mm² / maximum drilling diameter: 50 mm / maximum thread diameter: m40 / maximum chip removal rate (milling performance): 1000 cm³/min
- Measuring system: optical measurement system (heidenhain)
- T-slots: 5 x 18 x 125 mm, h12, medium h7
- Working feed (x/y/z axis): 0-10000 mm/min
- Rapid feed (x/y/z axis): 15000 mm/min
- Positioning accuracy: 0. 013 mm (x/y/z) / repetition accuracy: 0. 005 mm (x/y/z) / reverse error: 0. 002 mm (x/y/z)
- This machine was fully refurbished in 2015. It includes the itn 320 system, linear scales on all axes, and siemens controllers.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
