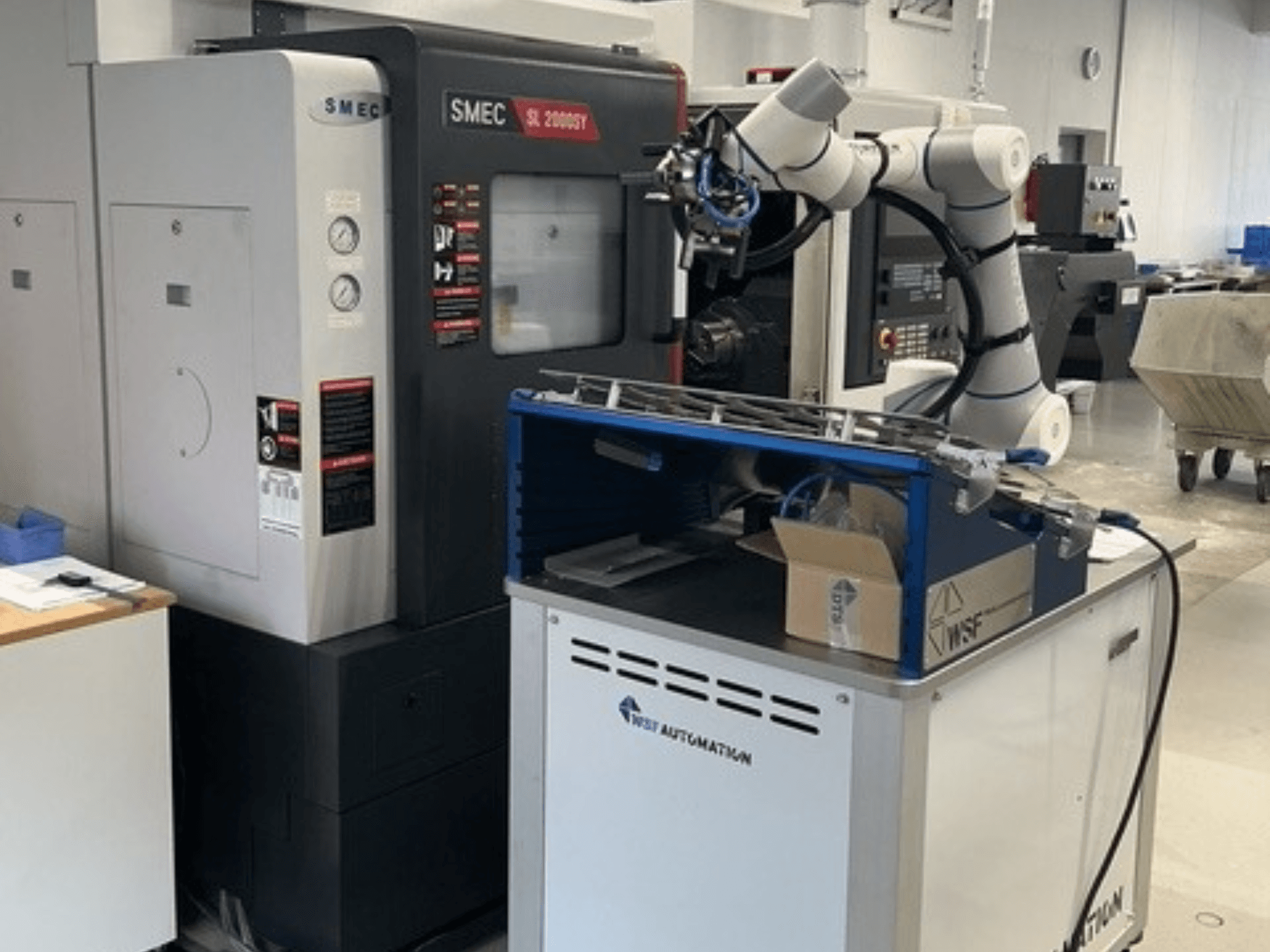

This 4-axis SMEC SL 2000 BSY + WSF Joker horizontal turning machine was manufactured in 2024. It features a swing diameter over bed of 650 mm, a maximum turning diameter of 395 mm, and a maximum machining length of 450 mm. The main spindle supports a maximum bar diameter of 68 mm and achieves speeds up to 4,500 rpm. Consider the opportunity to buy this SMEC SL 2000 BSY + WSF Joker horizontal turning machine. Contact us for more information.
Overview
- brand: SMEC
- year: 2024
- MODEL: SL 2000 BSY + WSF Joker
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - SMEC SL 2000 BSY + WSF Joker
Dimensions
- Machine Height: 2085 mm
- Machine Length: 2790 mm
- Machine Weight: 4200 kg
Movement
- B-axis Min: 580°
- Number of Axes: 4
- X-axis Travel: 235 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 580 mm
Technical Specification
- Spindle Power: 19.95 kW
- Spindle Speed: 4500 RPM
Additional Information
Working range
Swing diameter over bed: 650 mm
Swing diameter over cross slide: 540 mm
Max. turning diameter: 395 mm
Max. machining length (B): 450 mm
Main spindle
Chuck diameter: 210 (8") mm
Spindle nose standard: A2-6 ASA
Spindle bearing, inner diameter: 110 mm
Max. bar diameter: 68 mm
Spindle bore diameter: 76 mm
Max. torque: 212.9 Nm at 15 min⁻¹
Subspindle
Chuck diameter: 175 (6") mm
Spindle nose standard: A2-5 ASA
Spindle bearing, inner diameter: 90 mm
Max. bar diameter: 36 mm
Spindle bore diameter: 45 mm
Drive power: 9/7.5 kW
Max. torque: 67.9 Nm (S2 15 min⁻¹)
Max. speed: 6,000 rpm
Tool turret
Number of driven tool stations: 12
Tool holder: BMT55 kW
Drive power of driven tools: 9.3/4.9 min⁻¹
Max. speed: 5,000 rpm
Max. torque of driven tools: 35.1 Nm (S2 15 min⁻¹)
Cross-section of stationary tools: 25 x 25 mm
Cross-section of boring bar holder: Ø40 mm
Switching time station/station: 0.2 sec.
Axes and rapid traverse
X-axis servo motor: 3.0 kW; Max. rapid traverse X-axis: 18 m/min
Z-axis servo motor: 3.0 kW; Max. rapid traverse Z-axis: 30 m/min
B-axis servo motor: 3.0 kW; Max. rapid traverse B-axis: 24 m/min
Y-axis servo motor: 3.0 kW; Max. rapid traverse Y-axis: 12 m/min
Machine design
Slanted bed angle: 30 degrees
Electrical connection
Voltage: 400 V
Apparent power: 50 kVA
Pneumatics
Compressed air connection: 6 bar
Additional equipment
Chip conveyor
Cube capacity with chip conveyor: l
Conveyor pressure: 10 bar
Pump output: 2.2 kΩ
Cube capacity: approx. 14 l
Max. pressure: 35 bar
Net weight chip conveyor: approx. 1,000 kg
Transformer
Net weight transformer: approx. 300 kg
Robot/automation: WSF Joker
Payload: 12 kg
Reach: 1300 mm
Transport dimensions (L x W x H): 120 x 100 x 140 cm
Weight: approx. 300 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
