Sodick - VL 400QSK-EDM-SOD-2017-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Sodick VL 400Q Erosion Machine

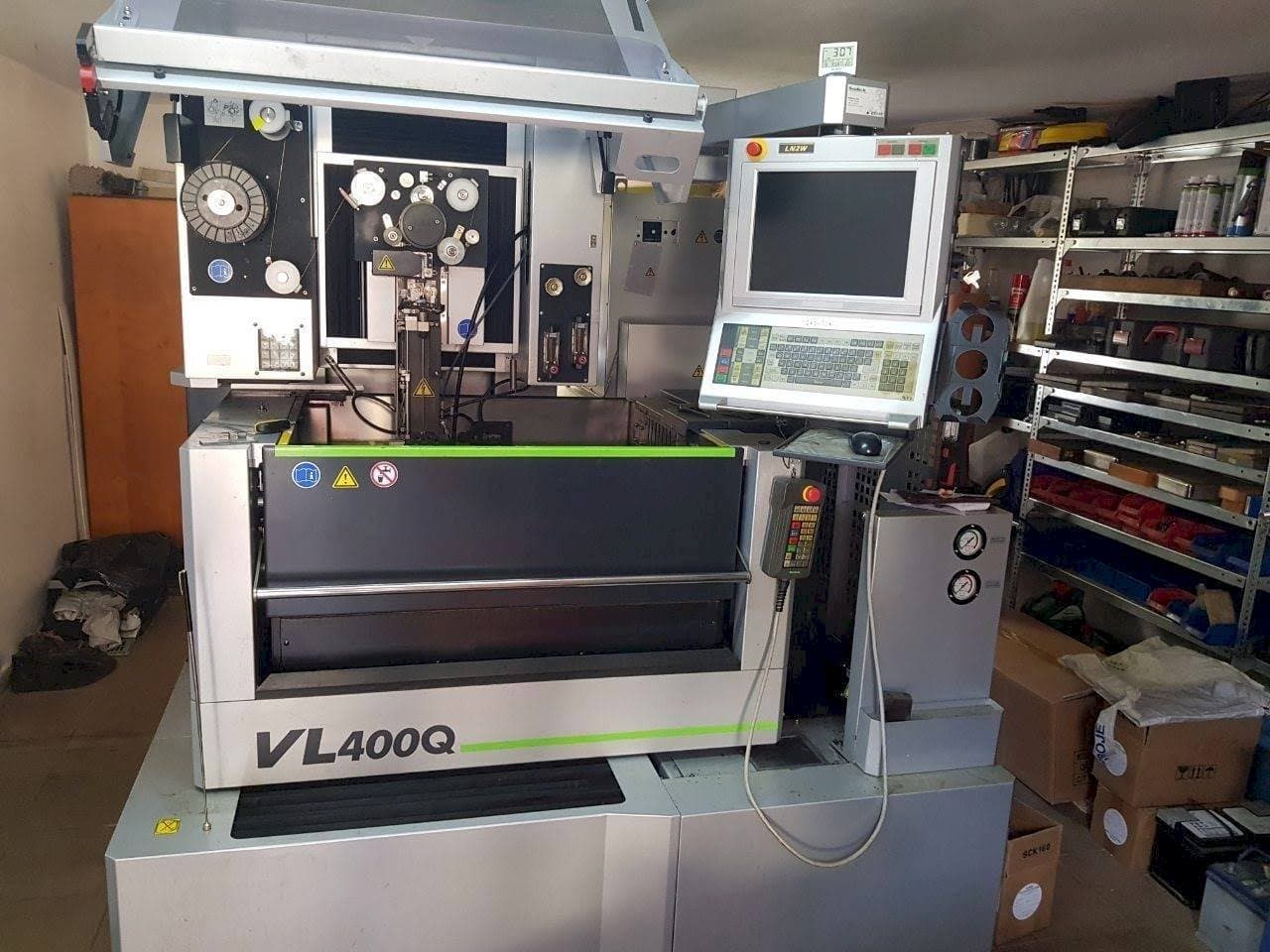

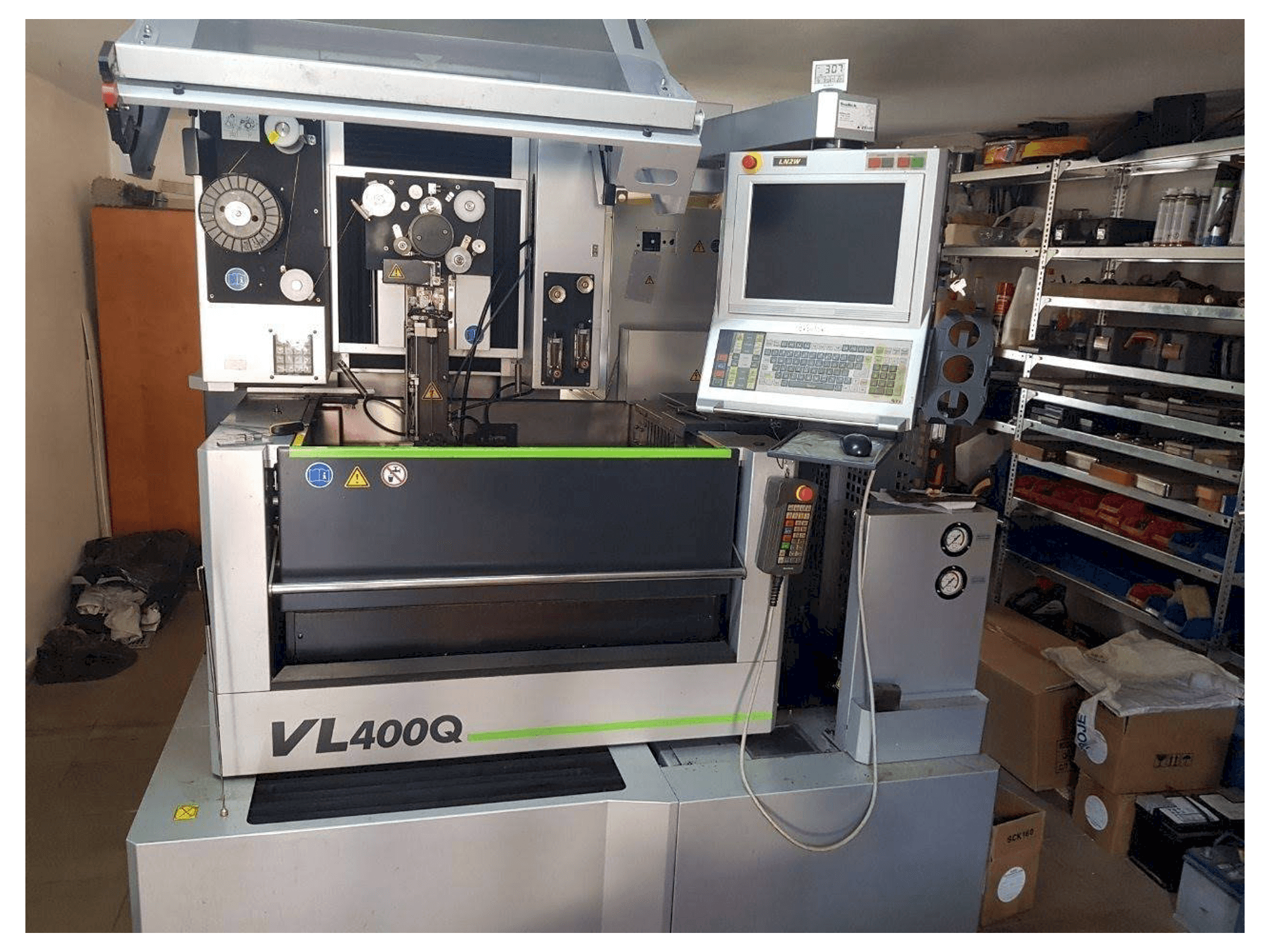

This Sodick VL 400Q Erosion Machine was made in 2017 in Japan. It has been working for only 3100 hours. It is equipped with a Sodick LN2W control unit. This machine can work with a wire diameter of 0.1 to 0.3 mm. Machine in top condition, like new.
Overview
- brand: Sodick
- year: 2017
- MODEL: VL 400Q
- production hours: 3100
- application type: EDM
- Location: Slovakia
- machine type: Wire EDM Machine
- control unit brand: SODICK
Technical Information - Sodick VL 400Q
Control Unit
- Control Brand: SODICK
- Control Model: LN2W
Dimensions
- Machine Depth: 2310 mm
- Machine Height: 1990 mm
- Machine Weight: 2750 kg
Movement
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 220 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine in top condition, like new!
Technical Machine Benefits
- Wire feed speed (max. ) 420 mm/sec
- Work tank dimensions (w×d) 860 x 690 mm
- U x v axis travel 90 x 90 mm
- Taper angle (at workpiece thickness of 120mm) +/- 15 degrees
- Wire tension 3-23 n
- Distance from floor to table top 900 mm
- Dielectric capacity/amount 380 kg/590 l
- "filtration 2 replaceable paper filters (internal-pressure type)"
- Linear motor + absolute linear scales (x, y, u, v axis)
- Ceramic components
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
