- ➤ Used Soraluce TA-35A For Sale | gindumac.com

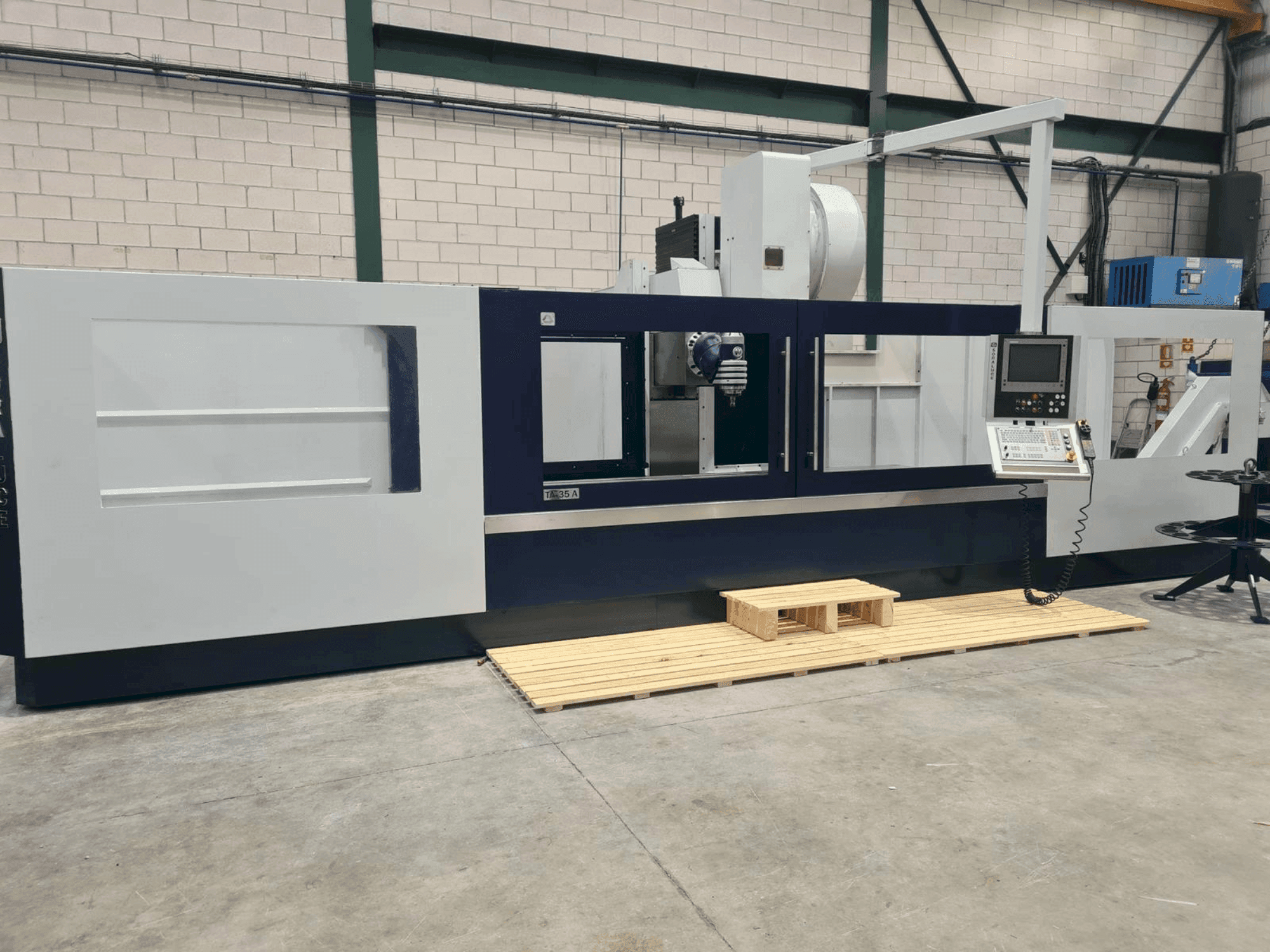

This 4-axis Soraluce TA-35A was manufactured in 2012, ideal for precision CNC milling. Consider the opportunity to buy this Soraluce TA-35A CNC milling machine. Contact us for more information.
Overview
- brand: Soraluce
- year: 2012
- MODEL: TA-35A
- application type: Milling
- Location: Spain
- machine type: CNC Milling Machine
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - Soraluce TA-35A
General Data
- Measurements width: 5000 mm
- Measurements depth: 10000 mm
- Measurements height: 4200 mm
- Machine weight: 21000 KG
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Spindle speed range: 4000 1/MIN
- Spindle motor power: 32
- Tool taper: ISO 50
- Number of axis: 4
Movement
- X-AXIS Movement: 3500 mm
- Y-AXIS Movement: 1250 mm
- Z-AXIS Movement: 1200 mm
Table
- Table load: 2500
Tools
- Number of index: 20
Additional Equipment
- - Coolant through spindle: Yes
- - Chip conveyor: Yes
- - Direct measurement on 3 axes: Yes
- - Enclosure: Fully enclosed
- - Tank volume (L): 500
Additional Information
- Technical Machine Benefits:
- - Head type: automatic 2. 5 x 2. 5 degrees
- - Electronic handwheel: hr 410
- - Head indexing by 2,5º steps
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
