- STAR SR-20 R II Lathe

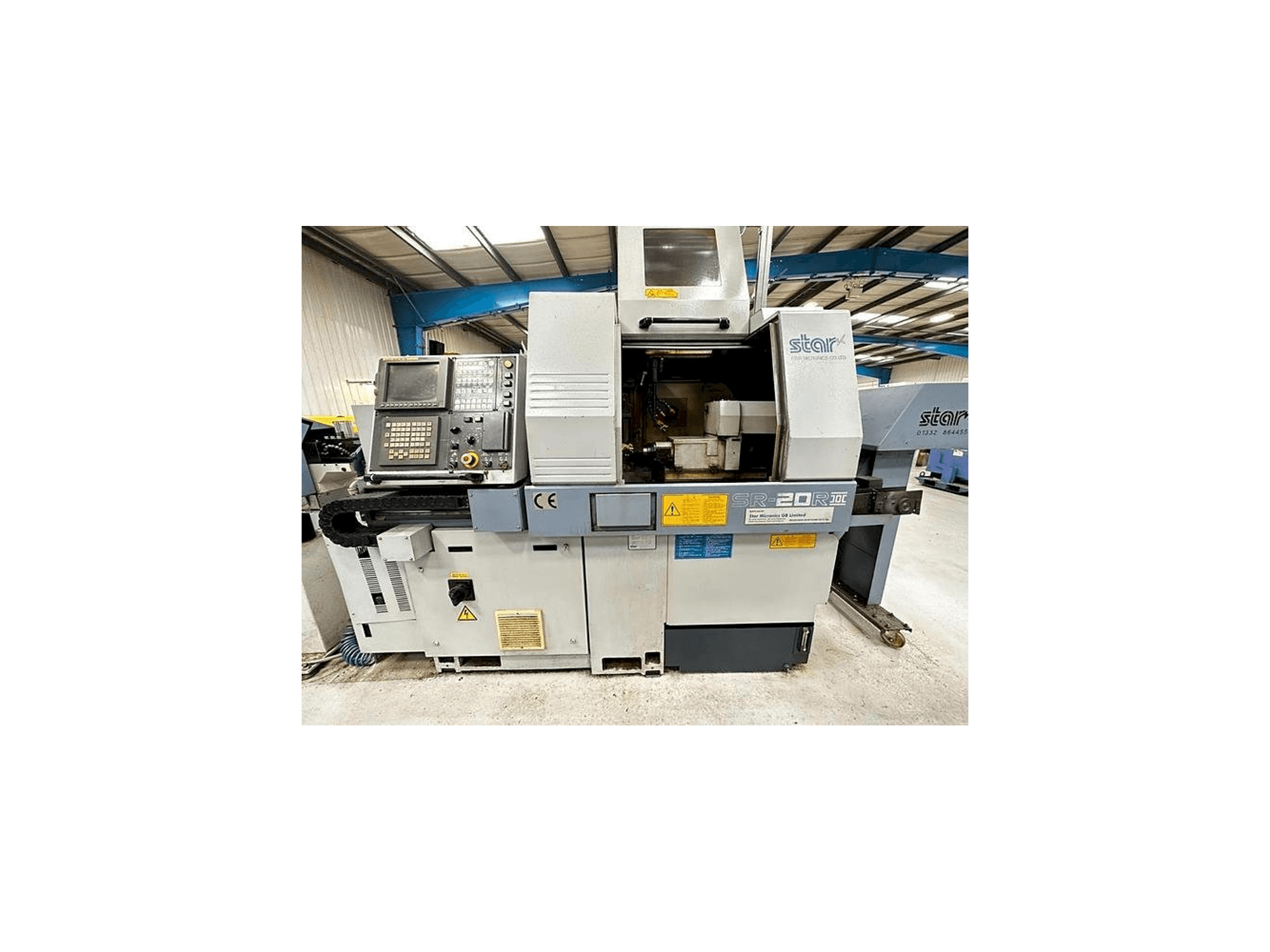

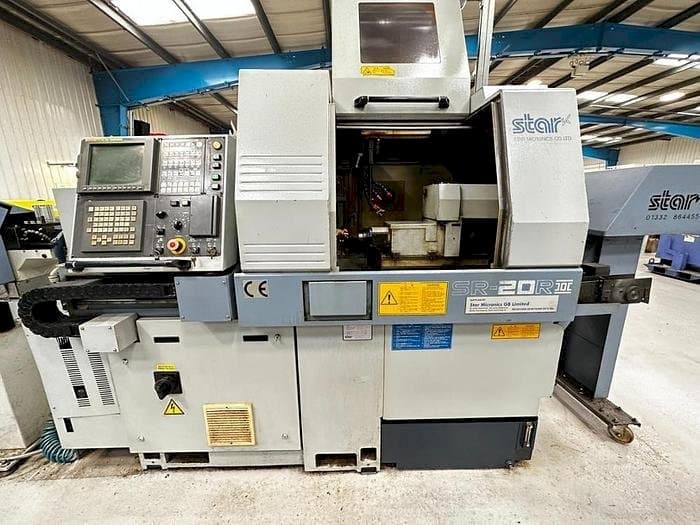

This STAR SR-20 R II Lathe was manufactured in the year 2004. It is equipped with a Fanuc Series 18i-TB control unit and has 7 axis. The machine has a spindle speed of 500-10000 rpm.
Overview
- brand: Star
- year: 2004
- MODEL: SR-20 R II
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - Star SR-20 R II
Control Unit
- Model: Series 18i-TB
- Brand: FANUC
Main drive
- Spindle speed range: 500-10000 1/MIN
- Spindle motor power: 3.7 Kw
- Number of axis: 7
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Turning length: 205 mm
- - Max. Bar diameter: Ø 20 mm
- - Max. Turning diameter from bar: Ø 20 mm
- - Counter-spindle rotation speed: 8000 rpm, engine power: 2. 2 kw
- - Fmb bar loader mod. Turbo 3-26/3200/a
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
