- ➤ Used Starrag Heckert HEC 400 D For Sale | gindumac.com

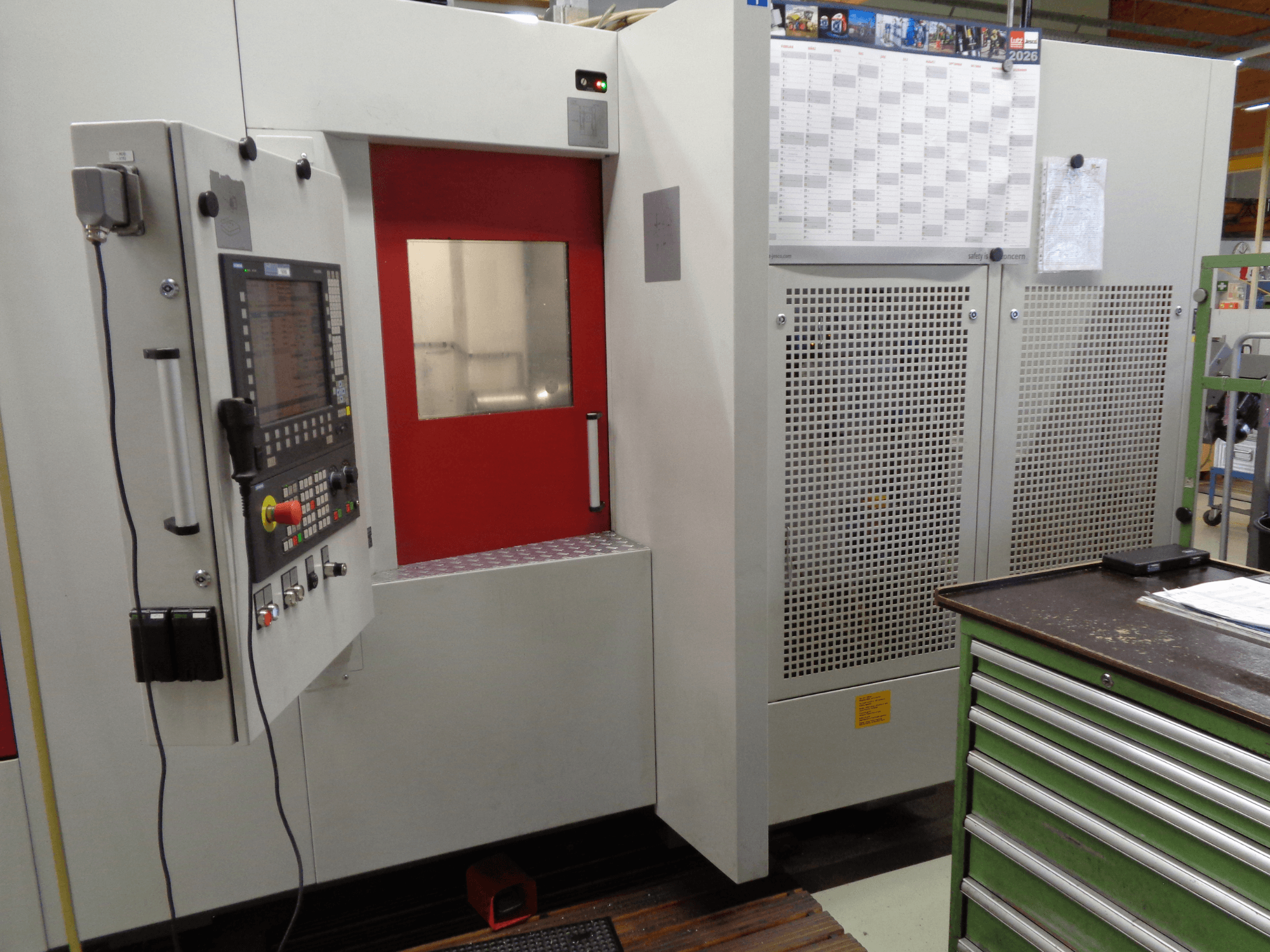

This 4-axis Starrag Heckert HEC 400 D was manufactured in 2012. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 80 tools, allowing for efficient machining operations. The machine includes two workpiece pallets with a size of 400 × 500 mm. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert HEC 400 D horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: Starrag Heckert
- year: 2012
- MODEL: HEC 400 D
- production hours: 41150
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- Available from: 01/12/2026
- control unit brand: SIEMENS
Technical Information - Starrag Heckert HEC 400 D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D sl
Dimensions
- Machine Weight: 10000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 650 mm
Technical Specification
- Number of Tools: 80
- Spindle Power: 33.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Temperature range: 5–35 °C
Operating hours: 41,150 hours
NCU type: NCU 710.2
NC software version: V02.07.01.06
MMC software: 07.06.02.02
Standard software cycles: 07.05.11
Working spindle speed (standard): 10000 rpm
Working spindle speed (option): 12000 rpm
Tool magazine type: Chain magazine
Workpiece pallets: 2
Pallet size: 400 × 500 mm
Spindle torque (option): 200 Nm
Coolant pressure (option): up to 80 bar
Coolant tank capacity: 1350 l
Coolant flow (swivel shower): approx. 70 l/min
Axis measurement system: Heidenhain LC483
Rotary axis measurement: Heidenhain RCN226
Position frequency analysis X-axis: 29 Hz
Position frequency analysis Y-axis: 54 Hz
Position frequency analysis Z-axis: 52 Hz
Spindle + motor replaced: July 2025
Additional equipment
Vapour extractor: AFS 600
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
