STARTECH SP7

Photo Gallery

STARTECH - SP7CH-MIL-STA-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

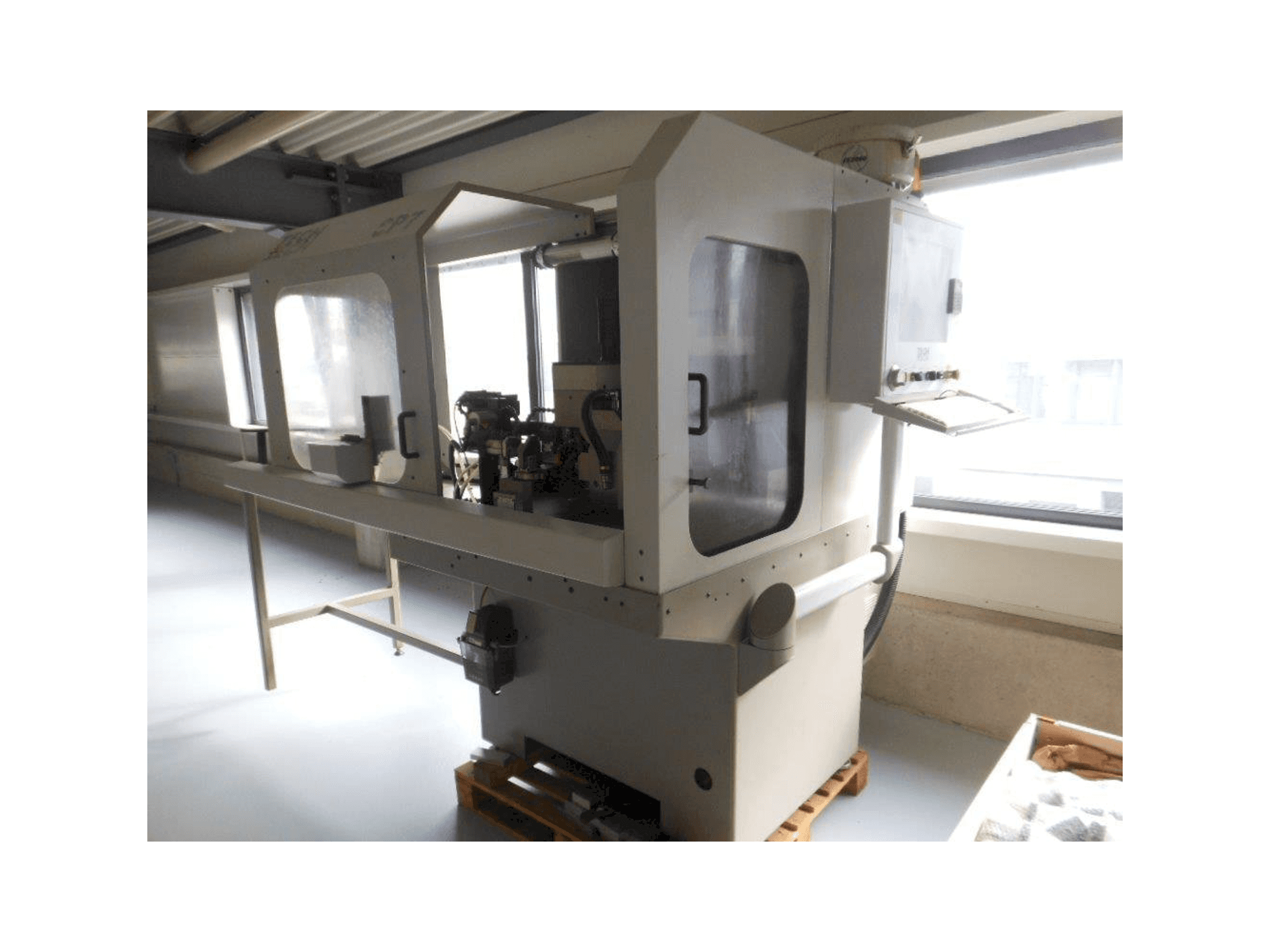

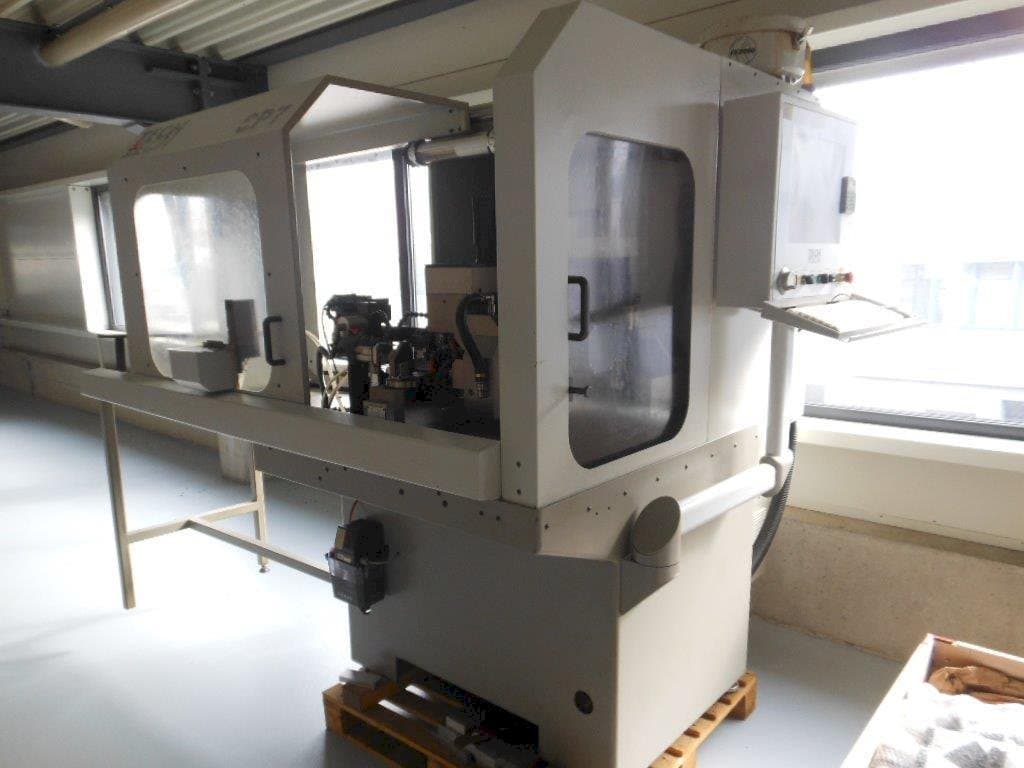

STARTECH SP7 universal machining center

This STARTECH SP7 universal machining center was manufactured in France in the year 2005. This machine works with a spindle speed up to 10000 rpm. This 7 axis bar machining center comes with 14 spindles and automatic backworking.

Overview

brand: STARTECH
year: 2005
MODEL: SP7
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre

Technical Information - STARTECH SP7

General Data

Measurements width: 2400 mm
Measurements depth: 1500 mm
Measurements height: 1900 mm
Machine weight: 1800 kg

Main drive

Number of spindles: 14
Spindle speed range: 10000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 150 mm
Y-AXIS Movement: 240 mm
Z-AXIS Movement: 190 mm

Media

Main electronic connection: 3 x 400 V 1 50 Hz
Power consumption: 7 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Pneumatic disassembly of the tool holders, which allow the presetting of the tools to iso 20 outside the machine
Rigid tapping (rigid tapping) on all spindles
Numerical feed tube with c axis
Remote maintenance

Technical Machine Benefits

Automatic bar feeder
Coolant tank capacity 100 l
Pump flow rate 22 umin
Pc and pmac card
Pneumatic clamping for bar g 25 mm. Max
2 additional radial spindles with brushless motors
Oil mist separation belt filter
Vice on feed tube
Lubricant cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
