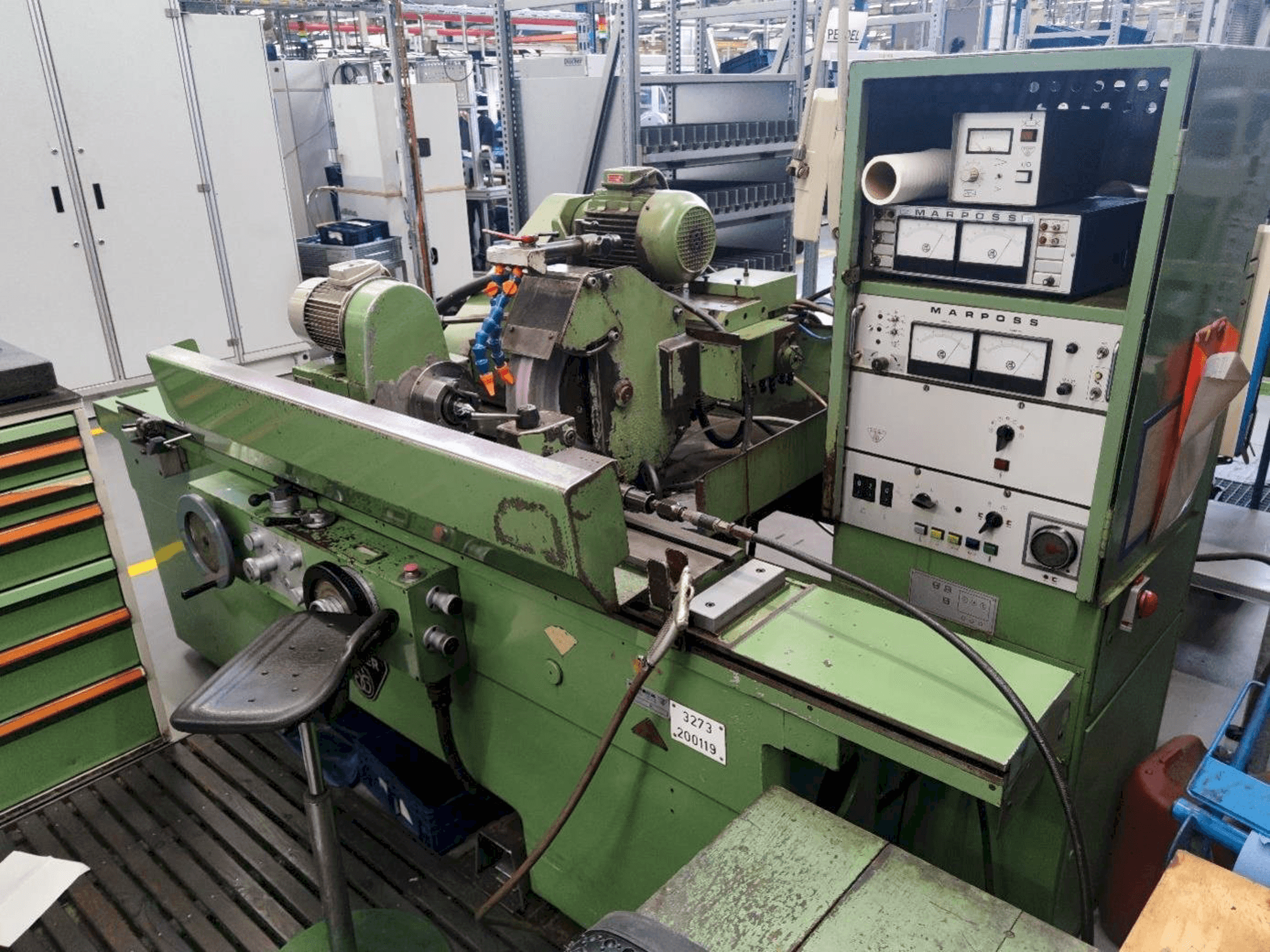

Front view of STUDER RHU 1000/125-DR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

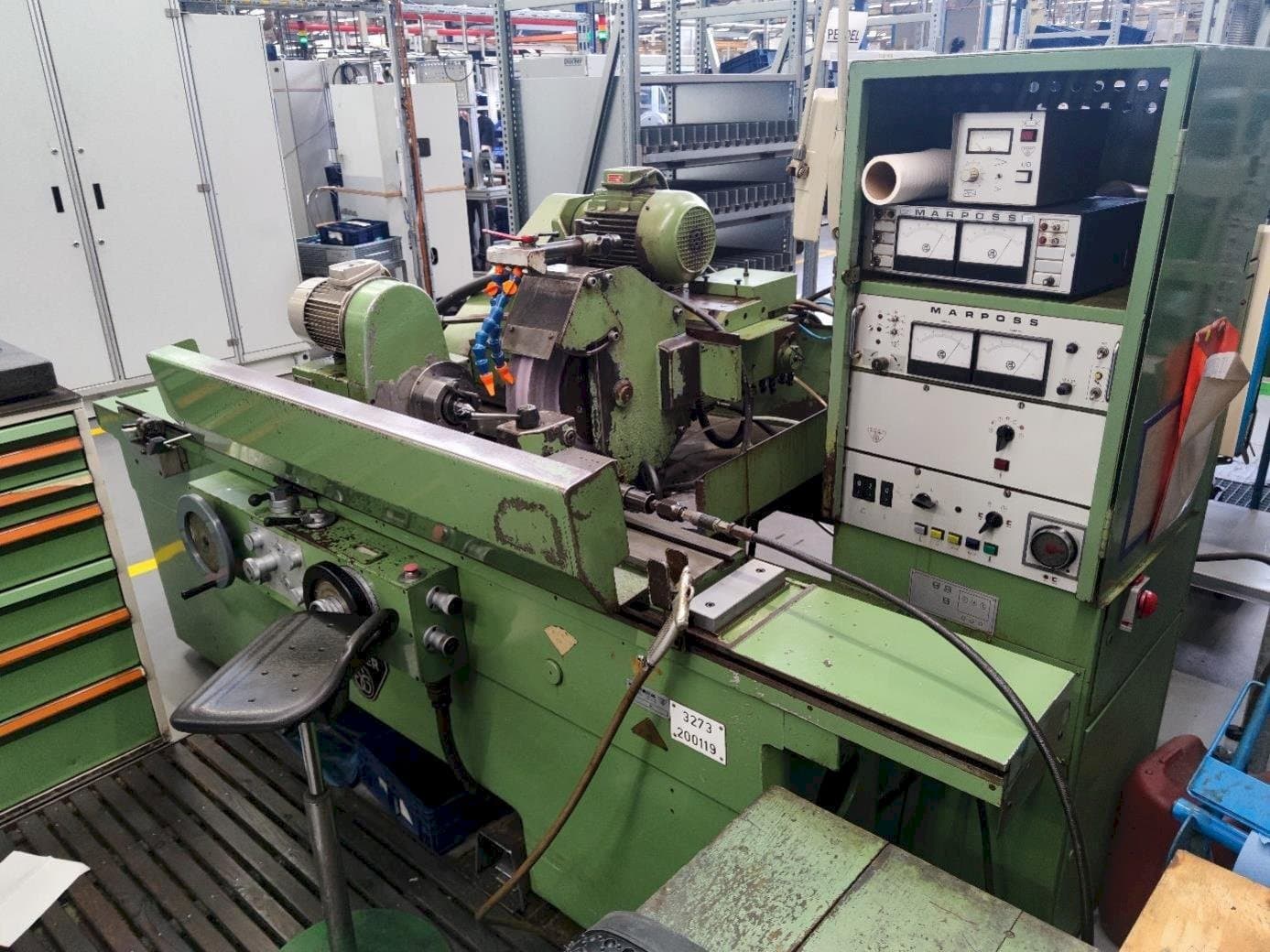

STUDER RHU 1000/125-DR

Photo Gallery

STUDER - RHU 1000/125-DRDE-GRI-STU-1979-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
STUDER RHU 1000/125-DR Grinding machine

This STUDER RHU 1000/125-DR Grinding machine was manufactured in the year 1979.

Overview

brand: STUDER
year: 1979
MODEL: RHU 1000/125-DR
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine

Technical Information - STUDER RHU 1000/125-DR

General Data

Machine weight: 2600 kg

Workpiece

Workpiece weight: 80 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Diameter of 3-jaw chuck: 160 mm

Technical Machine Benefits

Main dimensions: centre height: 125 mm centre width: 1025 mm largest longitudinal slide travel: 1020 mm
Longitudinal slide: table speed (infinitely variable): 0. 05-5. 5 m/min
Reversing delay: 0-6 s
Smallest automatic table travel: approx. 1. 5 mm
Largest inclined position of rotary table: 8°
Travel per handwheel revolution: 25 mm
Workhead: swivelling against grinding wheel: 90°
Speed range (infinitely variable): 30-675 min-1
Internal taper of workpiece spindle: 5
Morse shank diameter of collet: 25 mm

Extra Information

Applications: Cylindrical grinding in series production External and longitudinal grinding with straight and angled plunge cut Rear automatic dressing External grinding with straight or profiled wheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
