STUDER S31 AB wi.o s d

Photo Gallery

STUDER - S31 AB wi.o s dDE-GRI-STU-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STUDER S31 AB wi o s d For Sale | gindumac.com

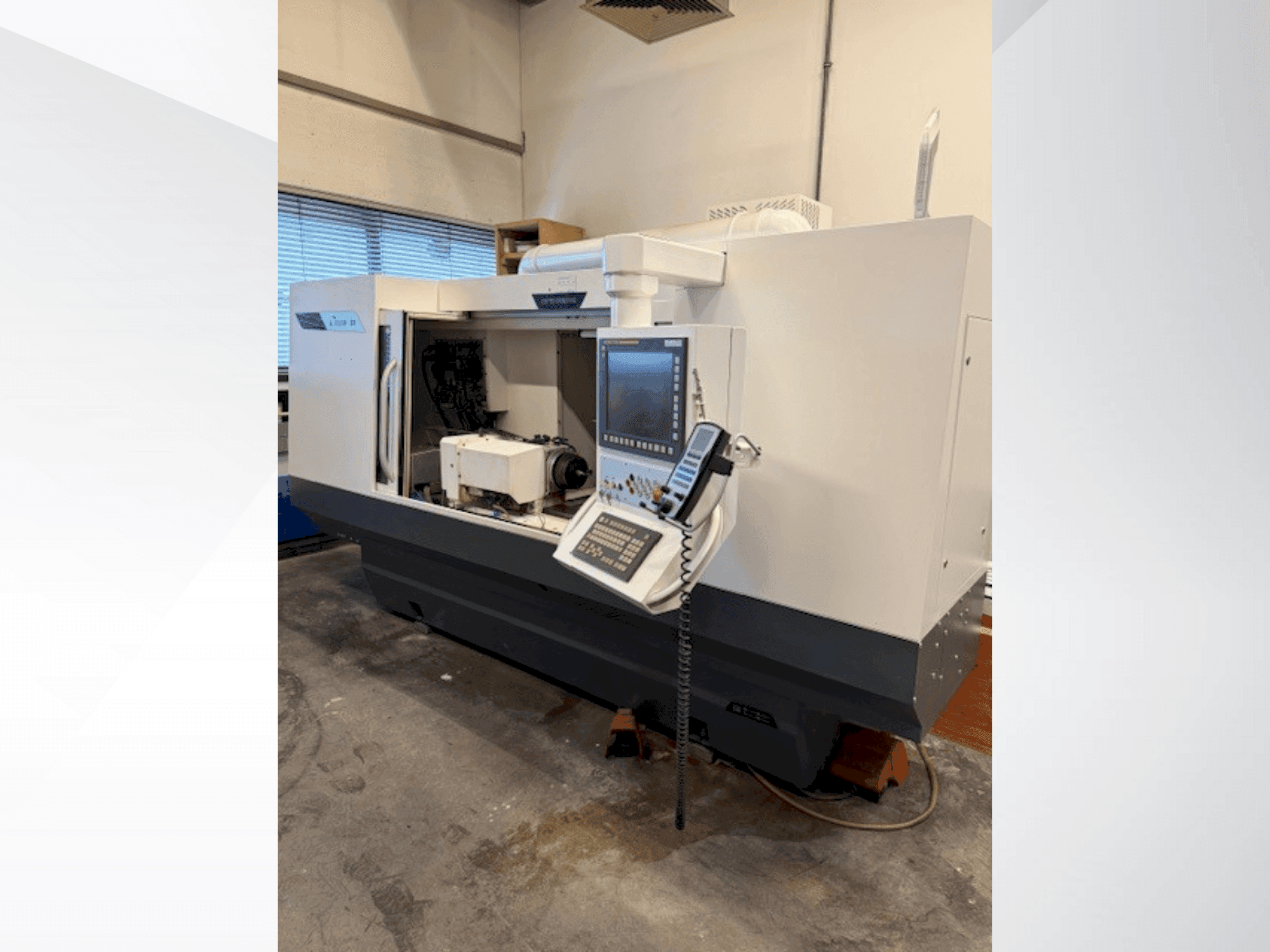

This STUDER S31 AB wi o s d cylindrical grinding machine was manufactured in 2019. It offers precision and durability for various grinding applications. Ideal for those seeking reliable cylindrical grinding capabilities. Contact us for more information.

Overview

brand: STUDER
year: 2019
MODEL: S31 AB wi.o s d
production hours: 9857
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - STUDER S31 AB wi.o s d

Control Unit

Brand: FANUC
Model: 0i-TD

Main drive

Spindle speed range: 60000 1/MIN
Number of axis: 2

Additional Information

Additional equipment

Overband Filter

Machine Benefits

Qualitative Machine Benefits

Revolving grinding spindle head u universal
Hirth coupling 1° to grinding spindle head swivel axis: swivel angle -15° to +195°
Fine adjustment stepless, resolution 0. 0001° (to b-axis)
Mechanical division: metric
Longitudinal axis z: driven by ac servomotor and ball screw. Travel path 1150mm.
Direct measuring system for x and z axis: resolution 0. 0001mm.
C-axis with indirect measuring system: resolution 0. 0001°.

Technical Machine Benefits

Center distance: 100mm
Center height: 175mm
Chuck workpiece spindle head: is050/110
Workpiece table with auxiliary scale for setting up table attachments.
Turret with 3 spindles
External machining: 2 spindles
Grinding wheels: d500x63
Internal machining: 1 spindle
Roundness accuracy during centerless grinding: 0. 0004mm
Cross axis x: driven by ac servomotor and ball screw, travel path 280mm.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
