STUDER - S31 AB wi.o s dDE-GRI-STU-2019-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used STUDER S31 AB wi o s d For Sale | gindumac.com

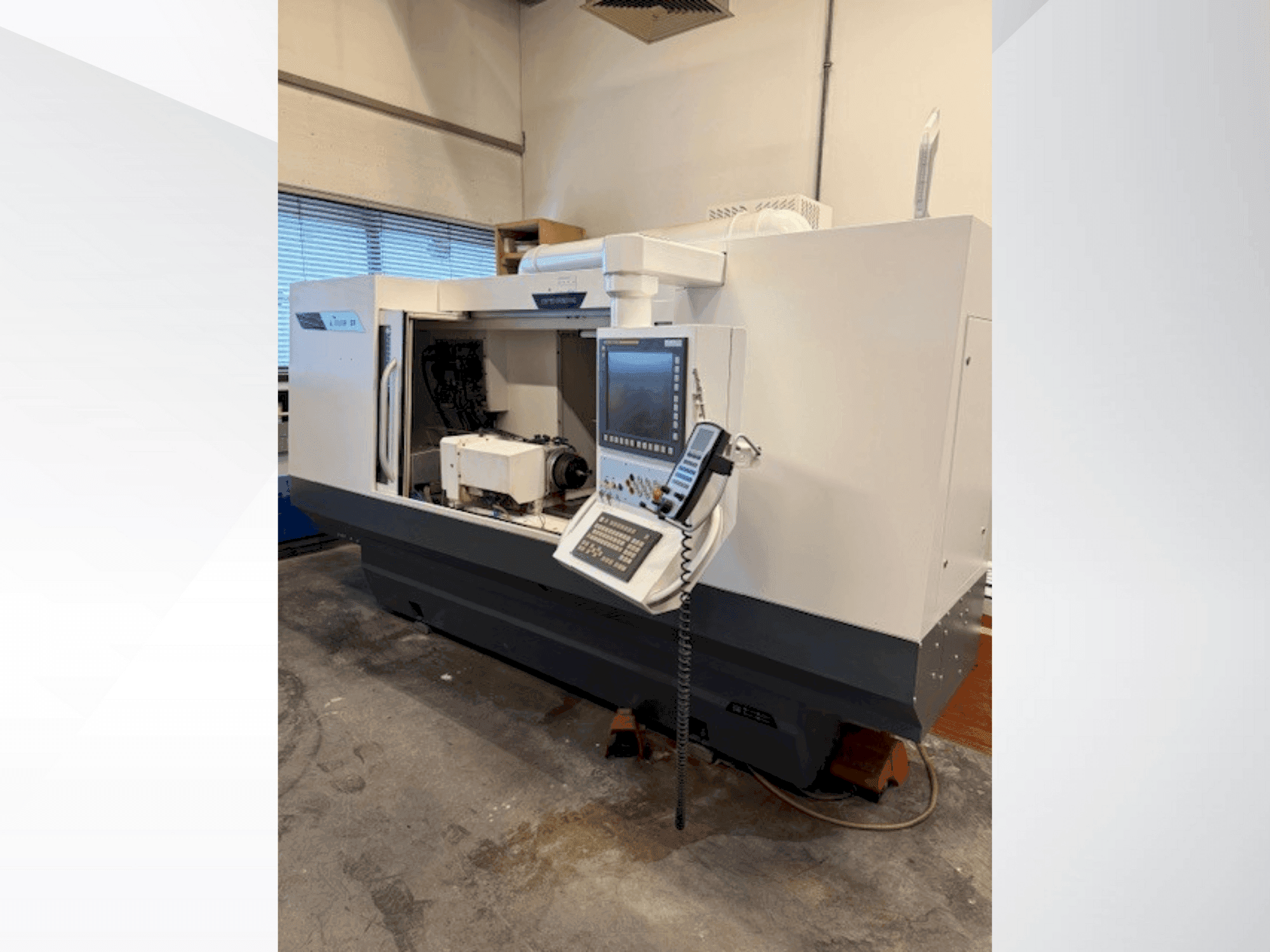

This STUDER S31 AB wi o s d cylindrical grinding machine was manufactured in 2019. It offers precision and durability for various grinding applications. Ideal for those seeking reliable cylindrical grinding capabilities. Contact us for more information.
Overview
- brand: STUDER
- year: 2019
- MODEL: S31 AB wi.o s d
- production hours: 9857
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - STUDER S31 AB wi.o s d
Control Unit
- Brand: FANUC
- Model: 0i-TD
Main drive
- Spindle speed range: 60000 1/MIN
- Number of axis: 2
Additional Equipment
- - Overband Filter
Additional Information
- Technical Machine Benefits:
- - Center distance: 100mm
- - Center height: 175mm
- - Chuck workpiece spindle head: is050/110
- - Workpiece table with auxiliary scale for setting up table attachments.
- - Turret with 3 spindles
- - External machining: 2 spindles
- - Grinding wheels: d500x63
- - Internal machining: 1 spindle
- - Roundness accuracy during centerless grinding: 0. 0004mm
- - Cross axis x: driven by ac servomotor and ball screw, travel path 280mm.
- Qualitative Machine Benefits:
- - Revolving grinding spindle head u universal
- - Hirth coupling 1° to grinding spindle head swivel axis: swivel angle -15° to +195°
- - Fine adjustment stepless, resolution 0. 0001° (to b-axis)
- - Mechanical division: metric
- - Longitudinal axis z: driven by ac servomotor and ball screw. Travel path 1150mm.
- - Direct measuring system for x and z axis: resolution 0. 0001mm.
- - C-axis with indirect measuring system: resolution 0. 0001°.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
