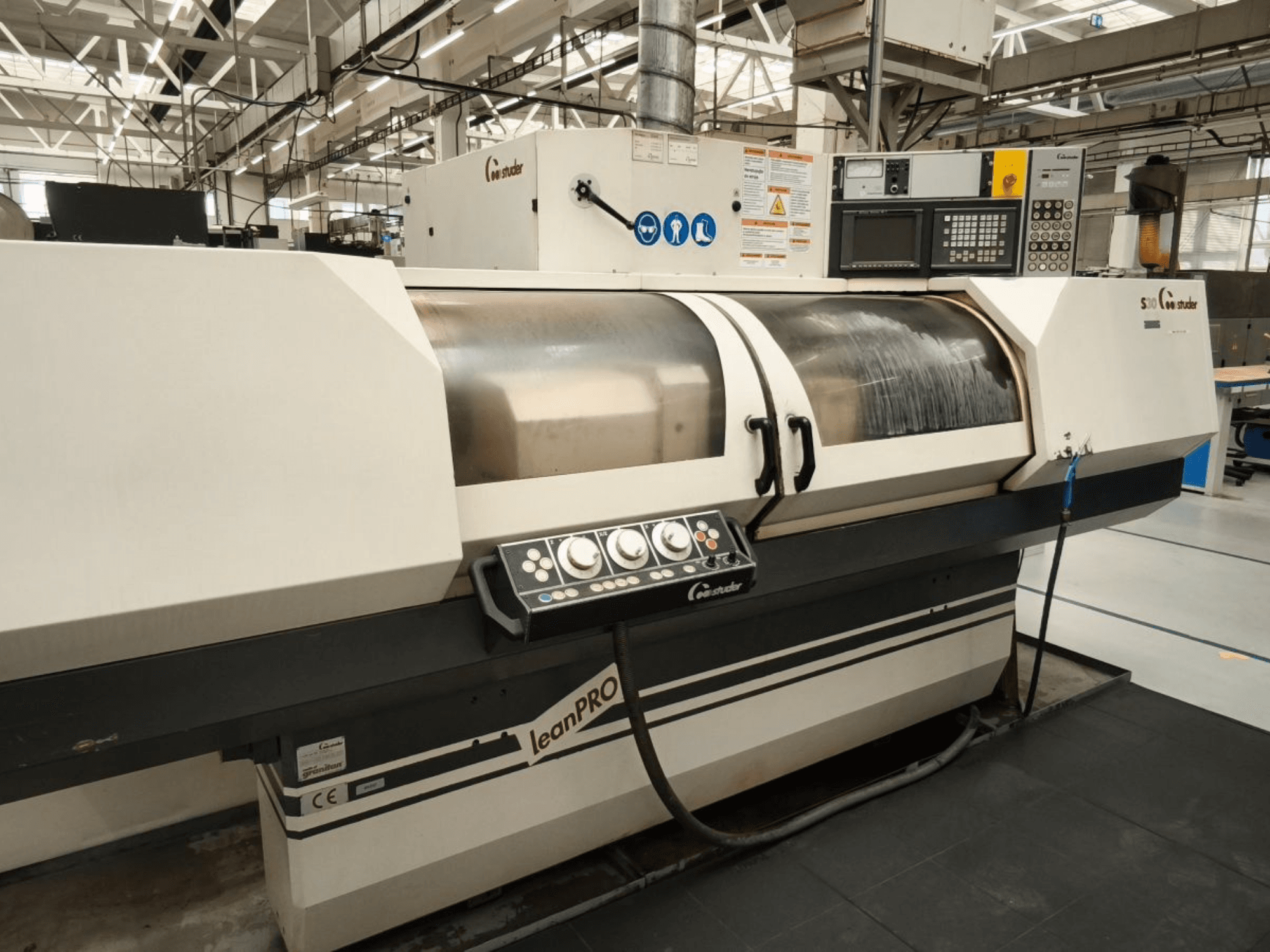

STUDER - S30 LEAN PROCZ-GRI-STU-1999-00002

TECHNICAL SPECS:

- Centre height: 175 mm (6.9") - Centre distance: 1000 mm (39.4")

- Longitudinal slide Max. travel: 1050 mm (41.4")

- Longitudinal slide Speed (vt): 0.0001 - 10,000 mm/min (394 ipm)

- Longitudinal slide Resolution: 0.0001 mm (.000.004")

- Maximum table swivel (Centre distance 1000): 8.5 degrees

- Wheelhead slide Max. travel: 275 mm (10.8")

- Wheelhead slide Speed (vt): 0.0001 - 10,000 mm/min (394 ipm)

- Wheelhead slide Resolution: 0.0001 mm (.000.004")

- Max. workpiece weight between centres: 130 kg (286 lbs)

- Max. load moment (Mmax): 160 Nm (116 ft lbs)

- Workhead: Non-swivelling, Roller bearing, AC-Servodrive - Workhead Option: Camlock Adapter - Tailstock Fitting taper: Morse 3 - Tailstock Travel of barrel: 35 mm (1.37")

- Control Unit: Fanuc Series 16 (32-Bit processors, ISO and pictogram programming)

- Wheelhead Variants: Turret wheelhead U left 400x80 mm Turret wheelhead U left 500x80 mm Grinding wheel right 400x40 mm Grinding wheel right 250x25 mm

- Internal grinding attachment: For belt driven spindles Ø100 mm - Max. grinding length (Ls): SPW + b - 80 mm - Max. diameter with three-jaw chuck (ØF): 129 mm - Max. diameter with closed steady (ØL): 140 mm

Hours: 47.550

Condition: Well maintained

*The internal grinding spindle has not been in operation for a long time because it was disconnected due to a fault in the frequency converter.
