STUDER - S40 CNCIT-GRI-STU-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STUDER S40 CNC For Sale | gindumac.com

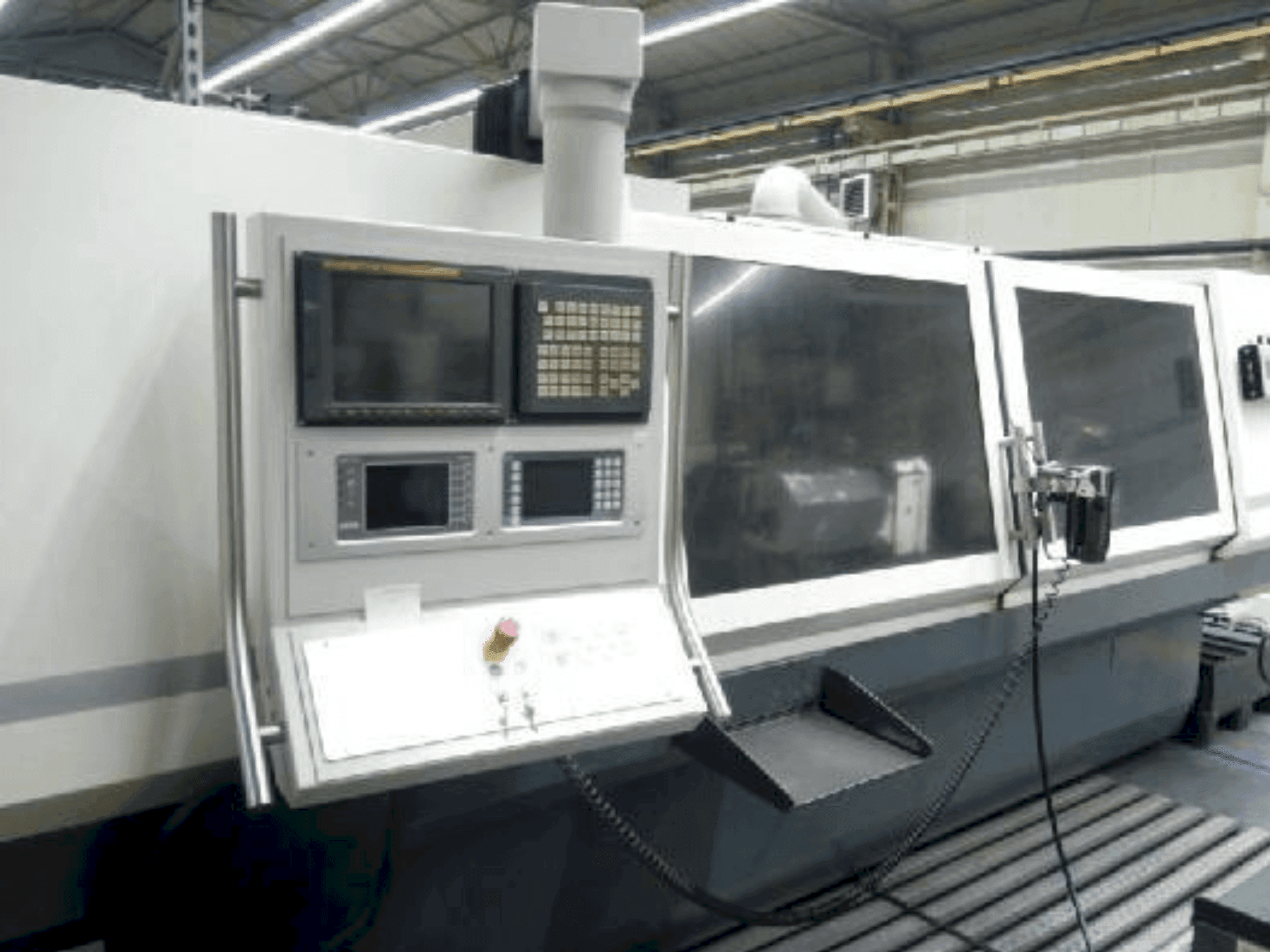

This STUDER S40 CNC cylindrical grinding machine was manufactured in 2011. It features a distance between centers of 1600 mm and a center height of 225 mm. Equipped with one external grinding wheel and two internal electrospindles, it offers speeds up to 42,000 rpm. Includes a coolant filtration unit, self-centering chuck, and various tooling. Contact us for more information about this machine.
Overview
- brand: STUDER
- year: 2011
- MODEL: S40 CNC
- production hours: 50000
- application type: Grinding
- Location: Italy
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - STUDER S40 CNC
Control Unit
- Control Brand: FANUC
- Control Model: Series 16i-T
Additional Information
Machine Benefits
Technical Machine Benefits
- Distance between centers: 1600 mm
- Center height: 225 mm
- Grinding configuration: 1 external grinding wheel in position t4 (right side) / 2 internal electrospindles at positions t1 and t2 with speeds of 24000 and 42000 rpm
- B-axis with hirth coupling, adjustable in 1° increments / fine positioning accuracy: 0. 0001°
- Workhead (headstock): iso 50 taper
- Tailstock: included / self-centering chuck: included
- Coolant filtration unit: included
- Accessories included: various tooling and attachments / dresser: flip-up diamond dresser for wheel dressing / grinding wheels included: for both internal and external operations
- Maintenance history: completed in 2024 / next scheduled maintenance: march 2025 by studer service
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
