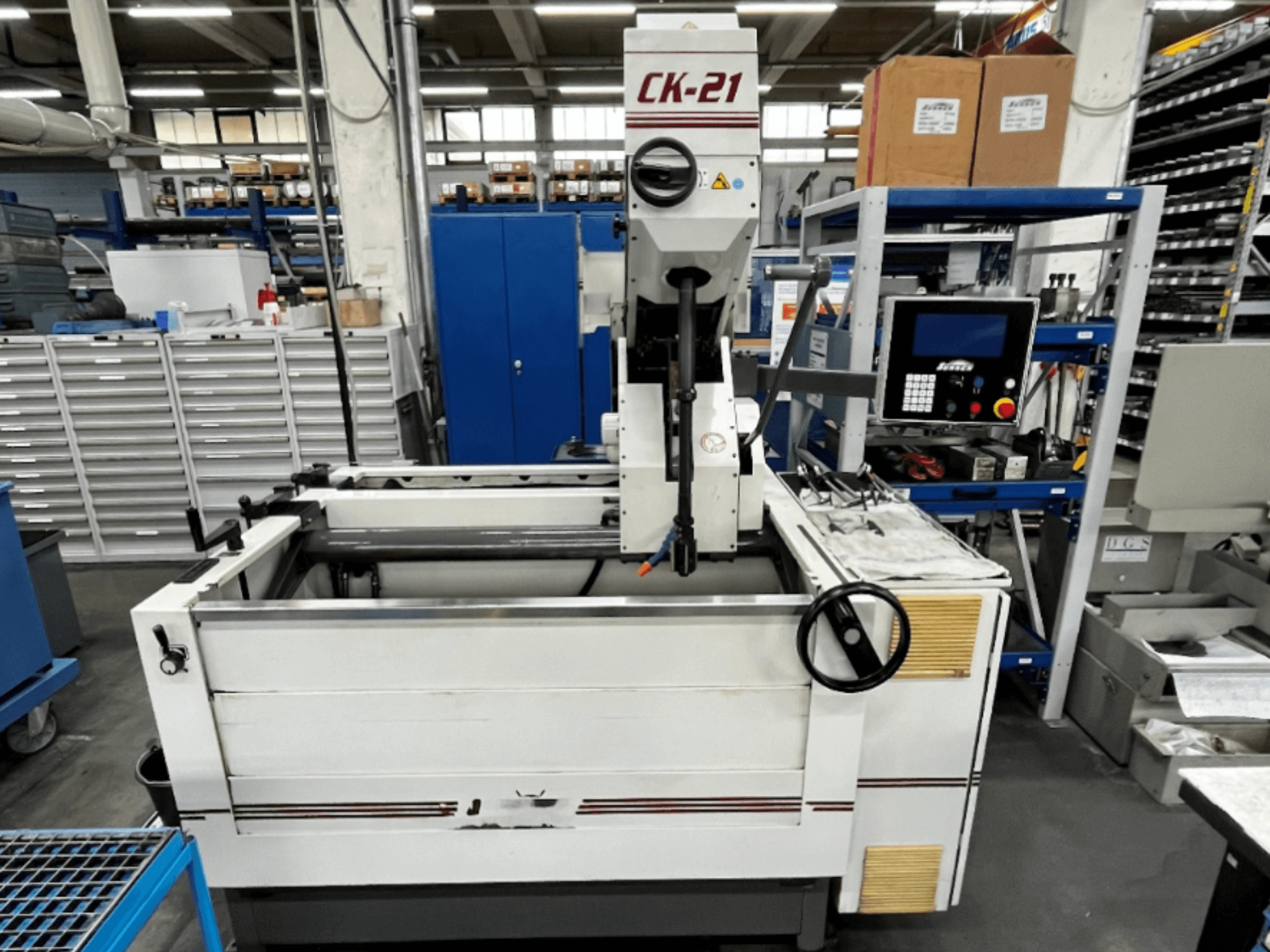

Sunnen CK-21-CC vertical honing machine in front view, featuring controls, honing area, and supporting equipment in background.
Sunnen CK-21-CC vertical honing machine in front view, featuring controls, honing area, and supporting equipment in background.

Thank you for your visit

This machine was recently sold.

Browse similar machines

Sunnen - CK-21-CCDE-HON-SUN-2002-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Vertical honing machine manufactured in 2002. This Sunnen CK-21-CC features a maximum stroke of 0.3 m and a tool diameter range of Ø19.05 – 203.2 mm. The machine is in robust condition, with new maintenance and cleaning plans implemented. If you are looking to get high-quality honing capabilities, consider the Sunnen CK-21-CC machine we have for sale. Contact us for further details.

Overview

  • brand: Sunnen
  • year: 2002
  • MODEL: CK-21-CC
  • application type: Honing
  • Location: Germany
  • machine type: Vertical Honing Machine
  • Available from: 01/09/2026

Technical Information - Sunnen CK-21-CC

Dimensions

  • Machine Height: 2057 mm
  • Machine Length: 2781 mm
  • Machine Weight: 1360 kg
  • Machine Width: 2667 mm

Additional Information

  • Machine: CNC-controlled vertical honing machine

  • Bore diameter range (internal Ø): 19–203 mm

  • Machining area: 1450 × 890 × 812 mm

  • Max. workpiece/tool weight: 680 kg

  • Spindle drive power: 3.0 kW

  • Spindle speed (low range): 90–240 rpm

  • Spindle speed (high range): 250–550 rpm

  • Stroke drive power: 0.55 kW

  • Stroke rate: 40–100 strokes/min

  • Max. stroke: 0.3 m

  • Stroke length: 19.05–305.0 mm

  • Feed system torque: max. 7.4 Nm

  • Feed rate: max. 0.75 mm/min

  • Coolant pump flow: 18.9 l/min

  • Coolant pressure: max. 3.1 bar

  • Coolant tank capacity: max. 246 l

  • Machine dimensions: 271.8 × 266.7 × 205.7 cm

  • Machine weight: 1360 kg

  • Compressed air requirement: 6 bar

  • Utilization: 30%

  • Number of tools: 1

  • Number of revolvers/magazines: none

  • Condition: very robust condition considering its age

  • Measures: spare part purchased (interface machine/tool), new maintenance and cleaning plans implemented

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
