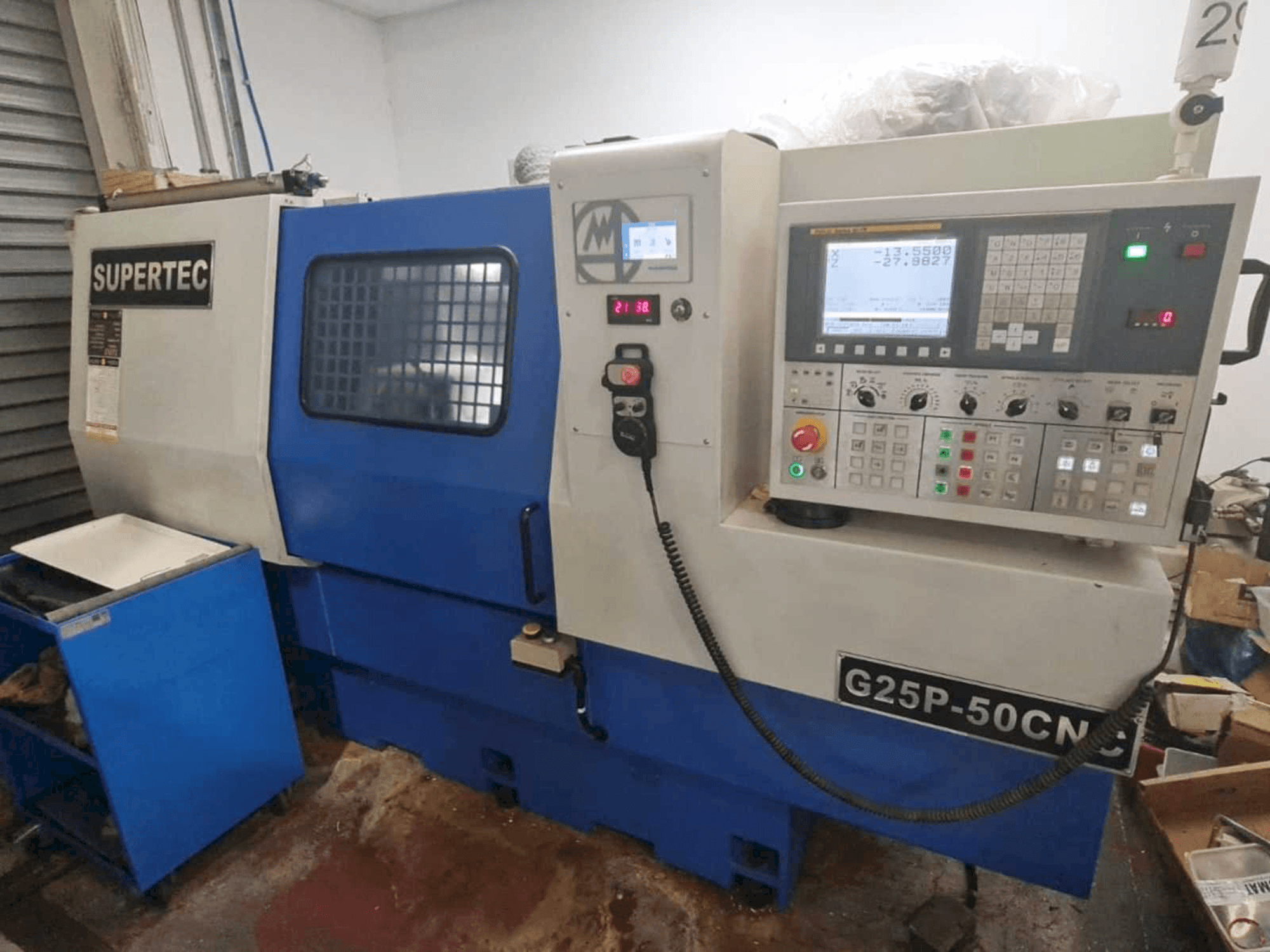

Front view of Supertec G25P-500CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Supertec G25P-500CNC

Photo Gallery

Supertec - G25P-500CNCIL-GRI-SUP-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Supertec G25P-500CNC Grinding machine

This Supertec G25P-500CNC Grinding machine was manufactured in the year 2017 in Taiwan. It is equipped with a Fanuc CNC Controller 0i-TF control unit. The machine has a spindle speed of 50 to 500 rpm. CE conformity.

Overview

brand: Supertec
year: 2017
MODEL: G25P-500CNC
application type: Grinding
Location: Israel
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - Supertec G25P-500CNC

General Data

Measurements width: 2250 mm
Measurements depth: 2970 mm
Measurements height: 2250 mm
Machine weight: 3500 kg

Control Unit

Model: CNC Controller 0i-TF
Brand: FANUC

Main drive

Spindle speed range: 50-500 1/MIN

Additional Information

Additional equipment

CE conformity
pneumatic putter included

Machine Benefits

Qualitative Machine Benefits

Infinite variable speed workhead (mt#3)
Hydraulic tailstock (mt#3)
Semi-enclosure splash guard
Roller type balancing stand w/arbor
Diamond dresser and stand
Coolant system w/magnetic separator & paper filter (60l/min,140l) • carbide tip center (mt#3 x 2)
Electricity cabinet w/heat exchanger
Leveling bolts and blocks
Tools & tool box + working lamp

Technical Machine Benefits

Swing over table: 250 mm
Distance between centers: 500 mm
Max. Grinding diameter: 250 mm
Diameter x width x bore: 405x50x127 mm
Max. Increment speed : 4 (m/min)
Spindle type: fixed and rotatory
Wheel (x-axis) motor kw(fanuc : 1. 2 kw
Wheel (z-axis) motor kw(fanuc):
Wheel extractor
Automatic wheel speed changed (multiple steps)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
