- ➤ Used Tacchella Macchine Elektra 513 MPC | Grinding

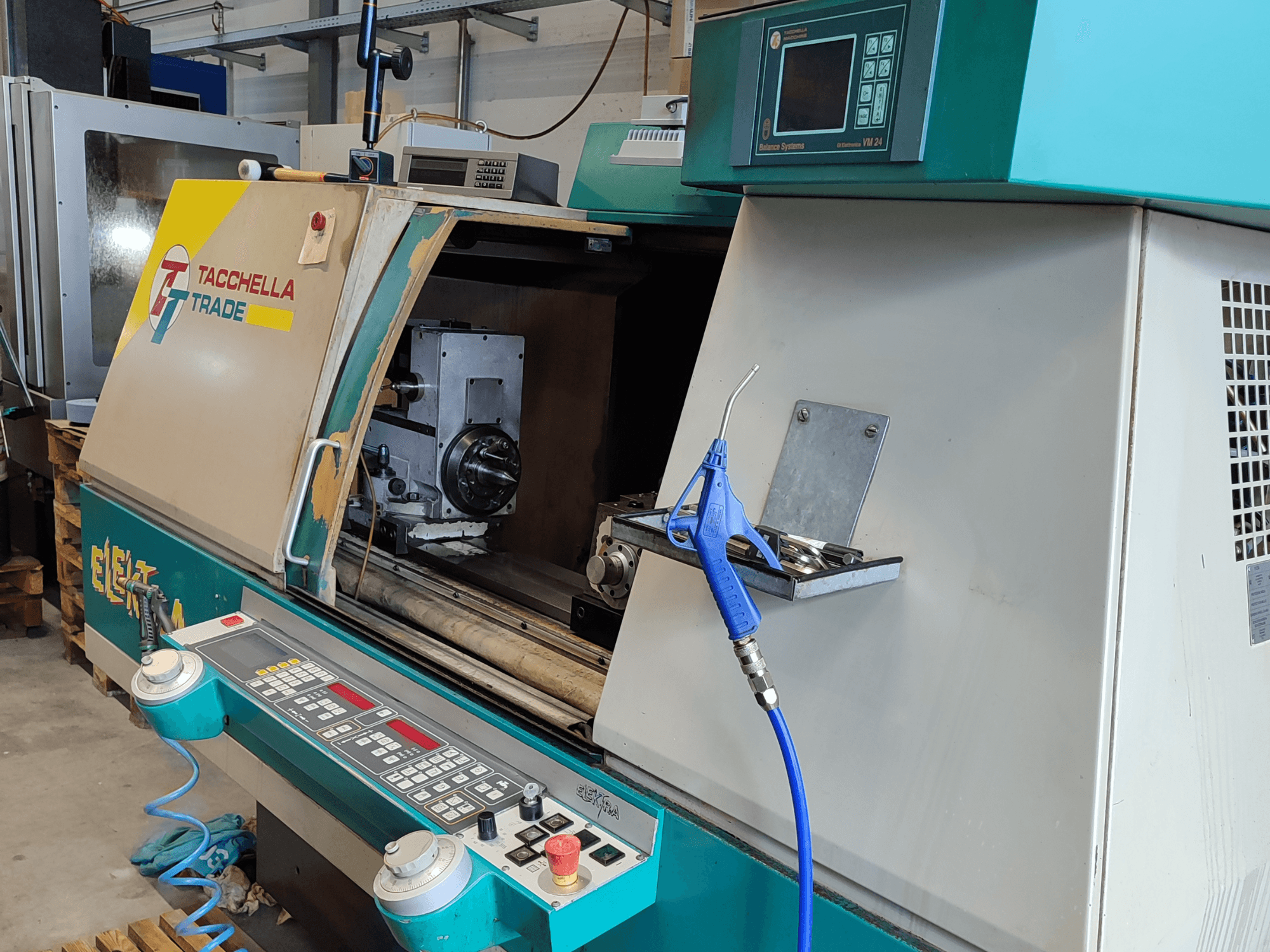

This 3-axis Tacchella Macchine Elektra 513 MPC was manufactured in 2000. It features a grinding diameter of 406 mm and a tips height of 130 mm, with a distance to points of 750 mm. The machine is designed for precision and durability, with a protection class of IP 54. If you are looking to get high-quality cylindrical grinding capabilities, consider the Tacchella Macchine Elektra 513 MPC machine we have for sale. Contact us for further details.
Overview
- brand: Tacchella
- year: 2000
- MODEL: Macchine Elektra 513 MPC
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
Technical Information - Tacchella Macchine Elektra 513 MPC
Movement
- Number of Axes: 3
- X-axis Travel: 750 mm
Additional Information
Supply voltage: 400 V
Mains frequency: 50 Hz
Nominal current: 30 A
Control voltage: 24 / 110 V
Signal voltage: 24 V
Lighting voltage: 24 V
Short-circuit breaking capacity: 35 kA
Protection class: IP54
External fuse: 20 A
Tips height: 130 mm
Distance to points: 750 mm
Diameter: 406 mm
Band: 50 mm
Hole: 127 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
