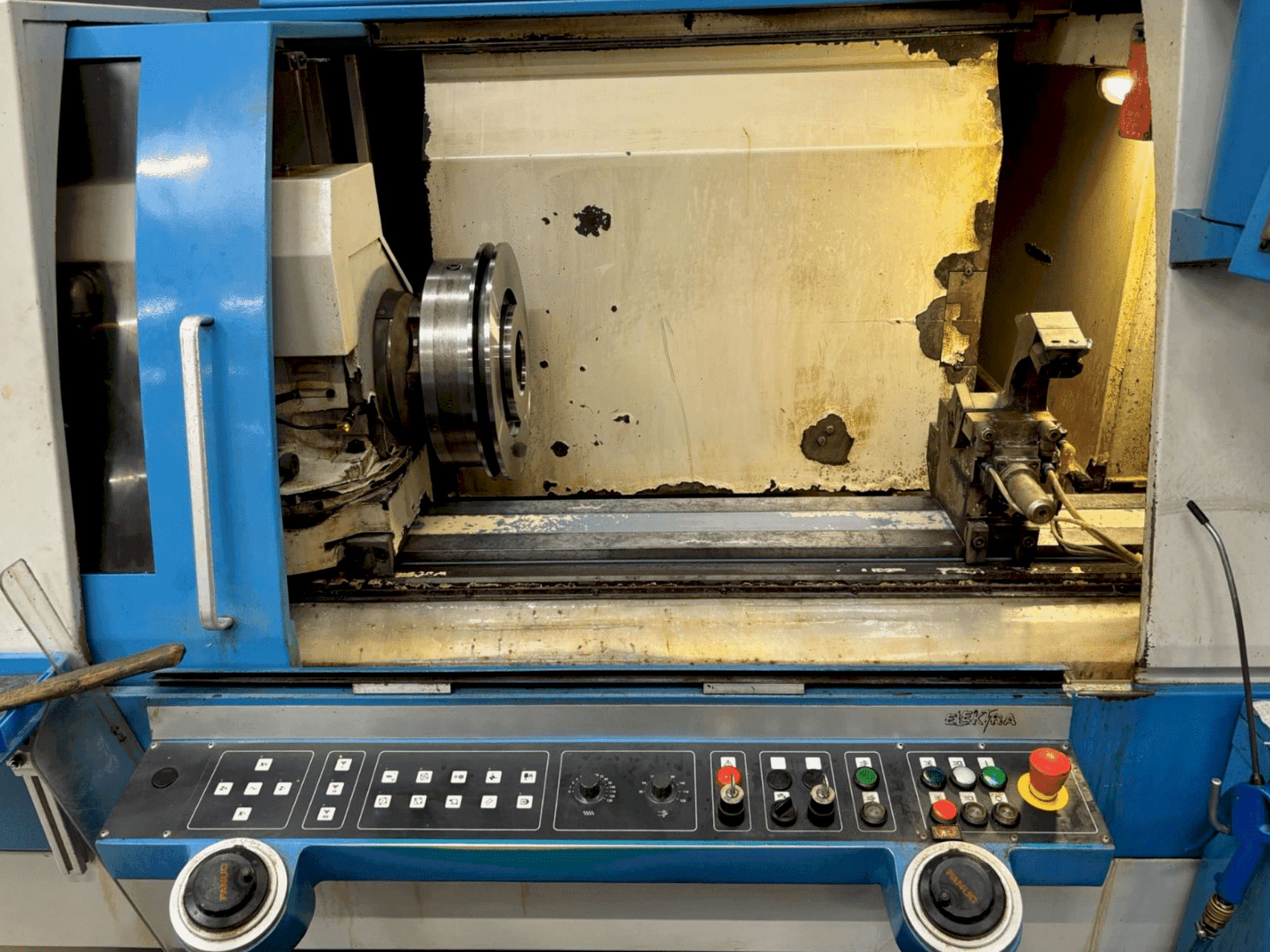

3-axis grinding machine manufactured in 2003 with immediate availability. The TACCHELLA Elektra MPC 1023 is a powerful and versatile grinding solution. It offers a maximum sanding length of 1000mm and a sanding diameter of 400mm. The external grinding headstock has a swivel range of -5° to +180°, and the internal grinding headstock provides 16000 rpm. With a weight of 6000kg, this machine is sturdy and stable. The opportunity to buy this TACCHELLA Elektra MPC 1023 grinding machine is now available. Contact us for further details.
Overview
- brand: Tacchella
- year: 2003
- MODEL: MPC 1023
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- availability: Sold
Technical Information - Tacchella MPC 1023
General Data
- Machine weight: 6000 kg
Main drive
- Number of spindles: 2
- Spindle speed range: 16000 1/MIN
- Tool taper: MK 5
- Number of axis: 3
Tail Stock
- Pinol tool taper: MK4
Additional Information
- Technical Machine Benefits:
- - Max. Center distance 1000mm
- - Max. Sanding length up to 0°, left-hand sanding disc 450mm; 1000mm
- - Max. Sanding diameter at 0°, left sanding disk 450mm; 400mm
- - External grinding headstock: max. Dimensions left grinding wheel, diameter x thickness x bore 450 x 80 x 203. 2 mm // max. Dimensions right grinding wheel, diameter x thickness x bore 300 x 40 x 127 // max. Swivel range -5°/+180° cnc; 0°/+180° mpc
- - B-axis drive motor 2. 5-3000 nm rpm
- - Internal grinding headstock: range standard n° revolutions 16000
- - Internal grinding headstock: max. Axis travel: 350mm
- - Internal grinding headstock: max. Movement speed 10000 mm/min resolution 0. 005mm longitudinal slide z-axis: max. Axis travel 1180mm // max. Movement speed 10000 mm/min // resolution 0. 001 // table tilt 0°/+9°
- - Workpiece headstock: through bore 36mm // manual swivel +-10° // speed range 10+800 rpm // max. Weight with flying clamping 100mm from the spindle nose 50 kg
- - Tailstock: max. Quill stroke 35mm // lateral fine adjustment +- 0. 10 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
