- Used Grinding machine TAIYO KOKI KOKI NVGH 12TC (2010) for sale | GINDUMAC.COM

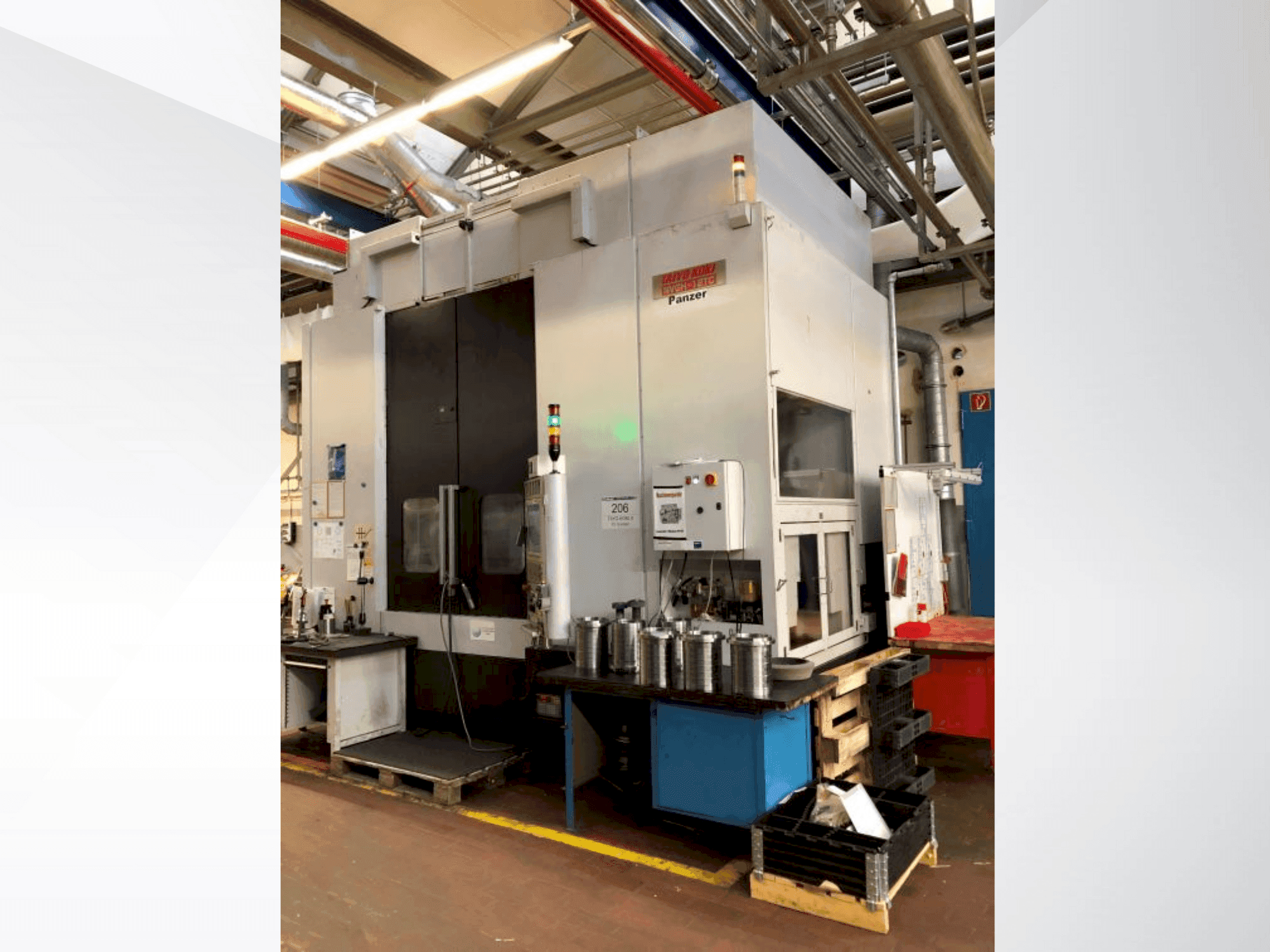

This TAIYO KOKI KOKI NVGH 12TC Grinding machine was manufactured in the year 2010 in Japan ans has 18000 production hours. It is equipped with a Fanuc 31i control unit. The machine disposes of grinding wheel spindle which has a speed range of 1200-6000 rpm. Contact us anytime for further questions.
Overview
- brand: TAIYO KOKI
- year: 2010
- MODEL: KOKI NVGH 12TC
- production hours: 18000
- application type: Grinding
- Location: Germany
- machine type: Vertical Grinding Machine
- availability: Sold
Technical Information - TAIYO KOKI KOKI NVGH 12TC
General Data
- Measurements width: 4449 mm
- Measurements depth: 3400 mm
- Measurements height: 3500 mm
- Machine weight: 30000 kg
Control Unit
- Model: IV
Main drive
- Number of spindles: 1
- Spindle speed range: 1200-6000 1/MIN
- Spindle motor power: 18.8 kW
- Number of axis: 4
Additional Information
- Technical Machine Benefits:
- - Capacity: inner grinding diameter 100-1100 / outer grinding diameter range max. 1200, od straight 600 / angular approx. 150, stroke to workpiece spindle 1250, max. Load on chuck 1. 65 tonnes (chuck: 1. 1t)
- - Grinding wheel spindle: diameter 75-355, taper bore hsk125a, output 25 kw
- - Workpiece spindle: table size 1200, speed 150 min-1 (400 vac)
- - Axes: x 1200 to the right/640 to the left/40000 mm/min, z 775/30000 mm/m
- - Disc head rotation: max. Indexing angle 240°, indexing angle at the grinding position +/-30°, normal torque 7500 n
- - Chuck throat (from floor to chuck surface): 1086
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
