Takisawa - LA-300 CNC IT-TUR-TAK-2018-00001

Name: Takisawa LA-300 CNC
Brand: Takisawa
SKU: IT-TUR-TAK-2018-00001
Price: 72000 EUR
Availability: InStock

72,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Takisawa LA-300 CNC For Sale | gindumac.com

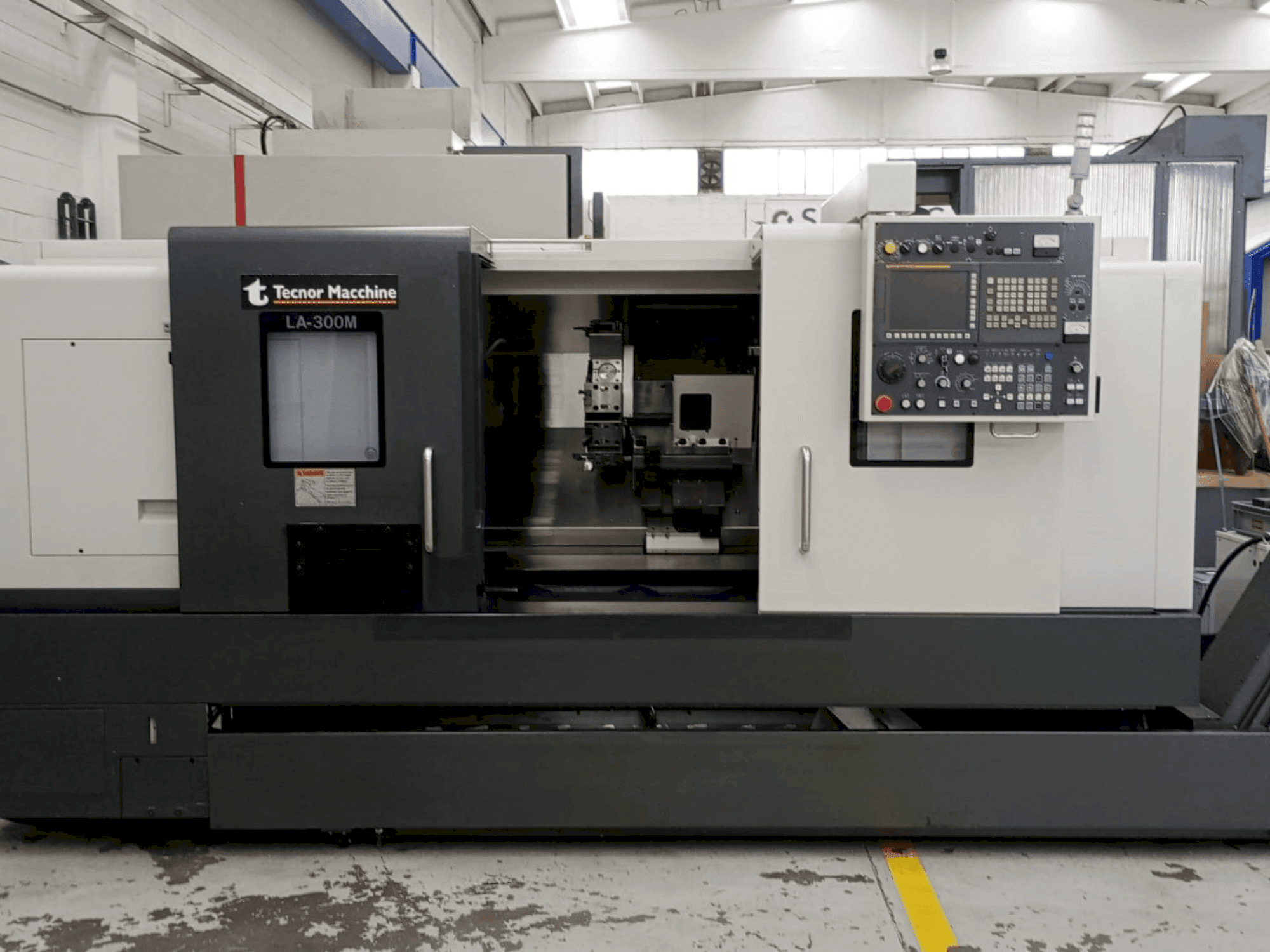

This Takisawa LA-300 CNC was manufactured in 2018. A robust horizontal turning machine featuring a spindle speed of 3,500 rpm, maximum turning diameter of 450 mm, and a 12-position tool turret. It includes a FANUC Series 0i-TC control for precise operations. If you are looking to get high-quality turning capabilities, consider the Takisawa LA-300 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Takisawa
year: 2018
MODEL: LA-300 CNC
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa LA-300 CNC

Control Unit

Control Brand: FANUC
Control Model: 0i-TC

Movement

Number of Axes: 2
X-axis Travel: 255 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Speed: 3500 RPM

Additional Information

Spindle size: 10"
Spindle nose: A2-8
Spindle bearing diameter: 120 mm
Turning capacity diameter: 254 mm
Maximum turning diameter: 450 mm
Maximum turning length: 760 mm
Maximum bar work diameter: 76 mm
Maximum swing: 580 mm
Turning tool spindle diameter: 25 mm
Boring bar spindle diameter: 40 mm
Tailstock travel: 670 mm
Tailstock spindle travel: 150 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
