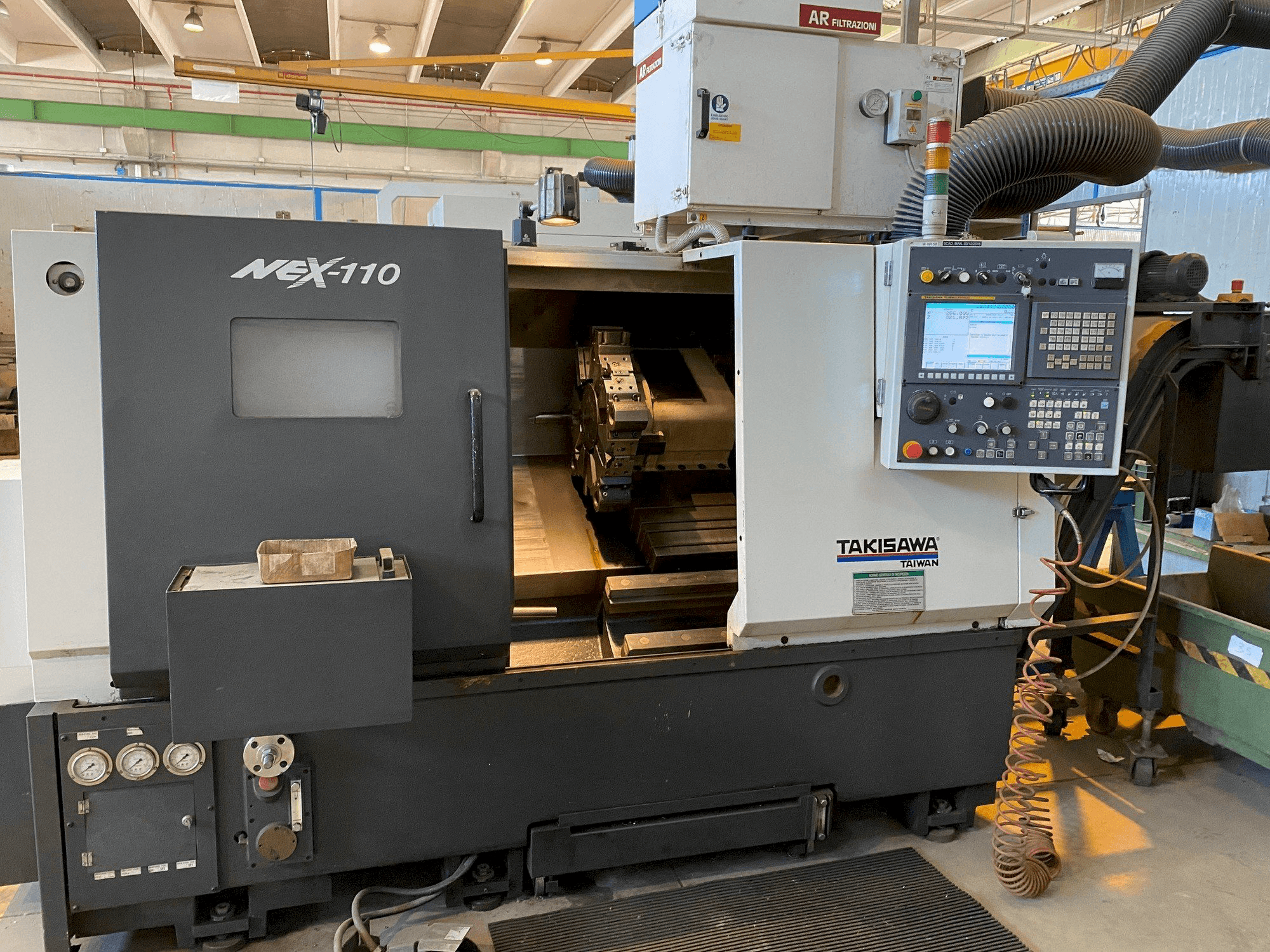

Takisawa NEX-110 Lathe machine

This Takisawa NEX-110 Lathe machine was manufactured in the year 2011 in Italy. This machine can work with a spindle speed range between 0 and 3500 rpm and counts with a maximum bar capacity of 75 / 77mm. It is equipped with a Fanuc 0i-TD control unit.

Overview

brand: Takisawa
year: 2011
MODEL: NEX-110
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Takisawa NEX-110

General Data

Measurements width: 3640 mm
Measurements depth: 1745 mm
Measurements height: 1755mm
Machine weight: 4850kg

Main drive

Number of spindles: 1
Spindle speed range: 3500rpm 1/MIN

Movement

X-AXIS Movement: 220 MM
Z-AXIS Movement: 710 MM

Turret

Number of turrets: 1
Max tool length: 710 mm
Number of tool slots: 10
Tool taper: T10

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diam: 275mm
- - Max turning lenght: 710mm
- - Max bar capacity: 75 / 77mm
- - Bar passage: 86mm
- - Tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
