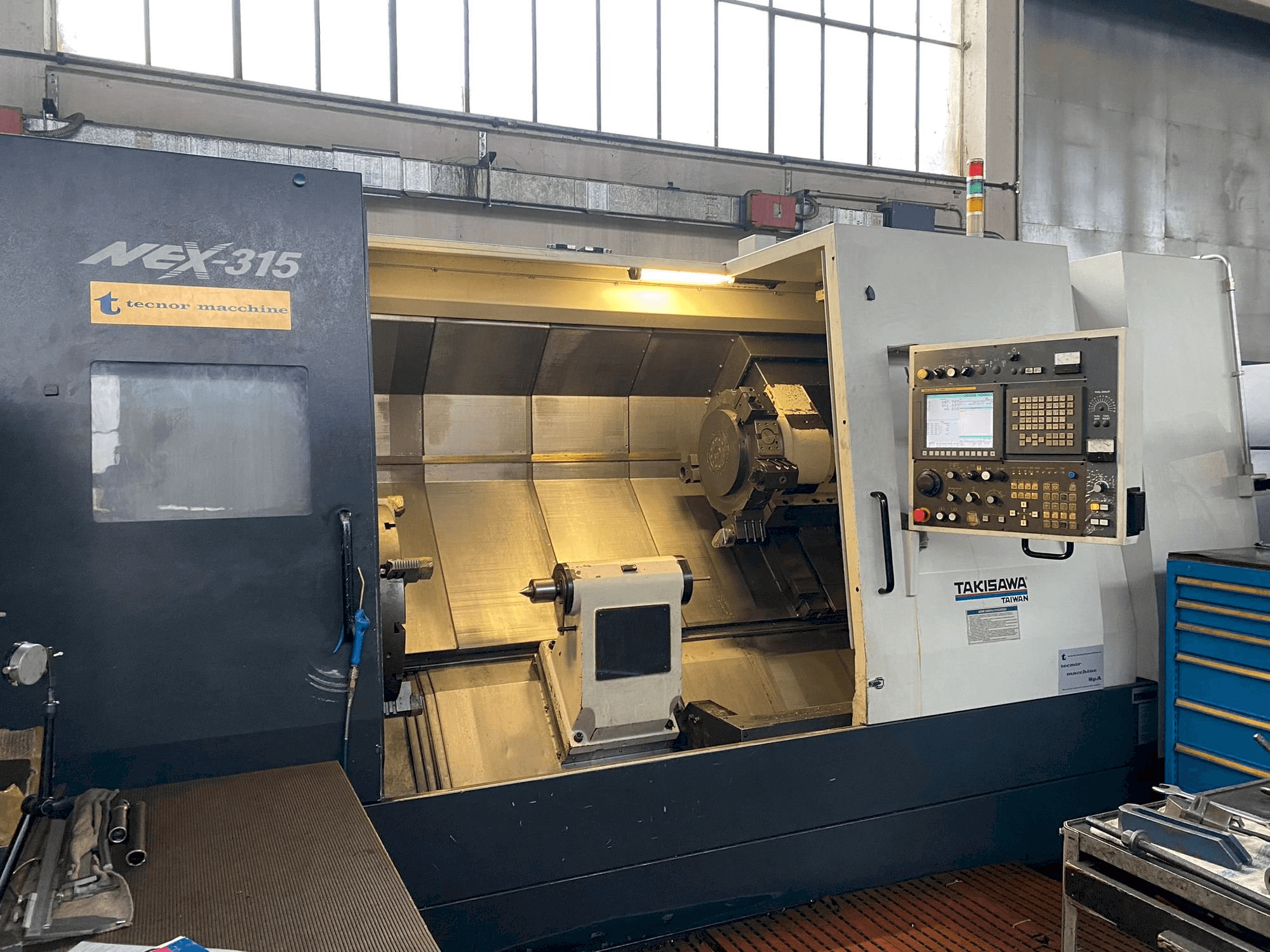

Takisawa - NEX-350IT-TUR-TAK-2011-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum rotation diameter: 820 mm
  • - Maximum turnable diameter: 620 mm
  • - Maximum turnable length: 1510 mm
  • - Maximum bar diameter: 105 mm
  • - Spindle bearing inner diameter: 160 mm
  • - Further information on work area and tool interferences par. 2. 4. 2
  • - Bar passage diameter: 117 mm
  • - Self-centering / collet technical characteristics: see value preface of this instruction manual
  • - Tool turret : turret type: 12t, rotation speed: 24000 rpm
  • - Tool stem height: 32
• Qualitative Machine Benefits:
  • - Number of tools on the turret: 12
  • - Boring rod diameter: 50
  • - Feed rate x axis feed speed: 16 m/mm y axis feed speed: 16 m/mm z axis feed speed: 20 m/mm
  • - Tailstock tailstock stroke: 1600 mm tailstock chuck diameter: 150 mm tailstock chuck taper: mt#5 tailstock spindle stroke: 120 mm
  • - Numerical control (cn) type of control and characteristics: see details in par. 2. 3. 1 electricity supply *1 electrical power supply: 400 vac ±10% 3f+pe frequency: 50+60 hz control circuit voltage: 24 vdc installed power: 59 kva
  • - Motors *1 spindle motor: 30/37 kw rotary tool spindle motor: 5. 5/7. 5 kw b-axis servo motor: --- x-axis servo motor: 4. 0 kw y-axis servo motor: -- kw z axis servo motor: 7 kw indexing motor: 1. 2 kw turret hydraulic system motor: 1. 5 kw lubrication system motor: 0. 004 kw cooling system motor: 0. 4 kw
  • - Pneumatic supply: 0. 6 ÷ 0. 8 mpa feed temperature: 5 ÷ 40 °c without solid residues working pressure: 0. 5 mpa necessary flow rate: 10 litres/min
  • - Tank capacity *1 hydraulic power unit: 40 litres cooling lubricant tank: 230 litres lubrication control unit: 2 litres range change: 4 litres
