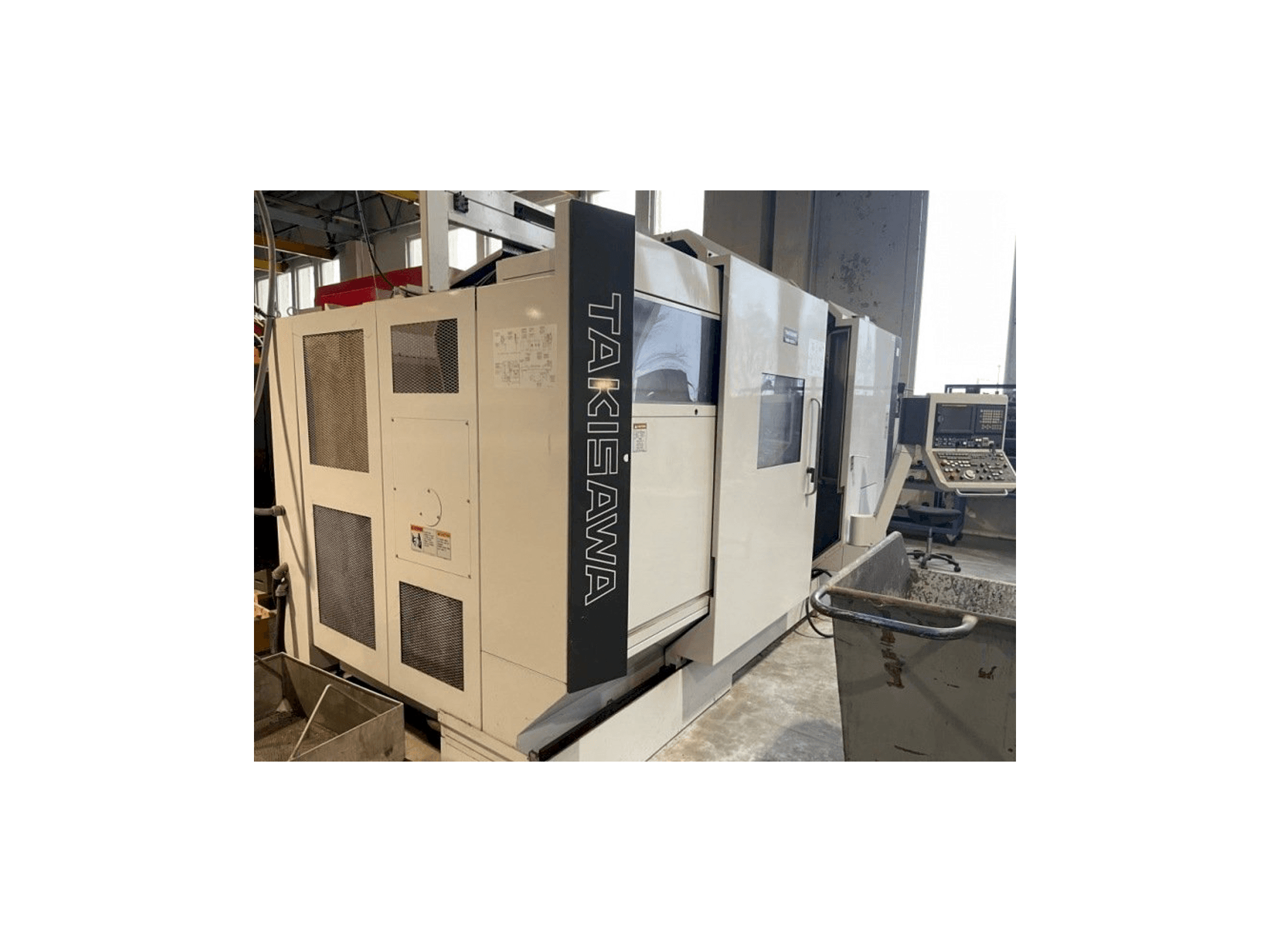

Front view of Takisawa TMM250-M3  machine

Takisawa TMM250-M3

Takisawa - TMM250-M3

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

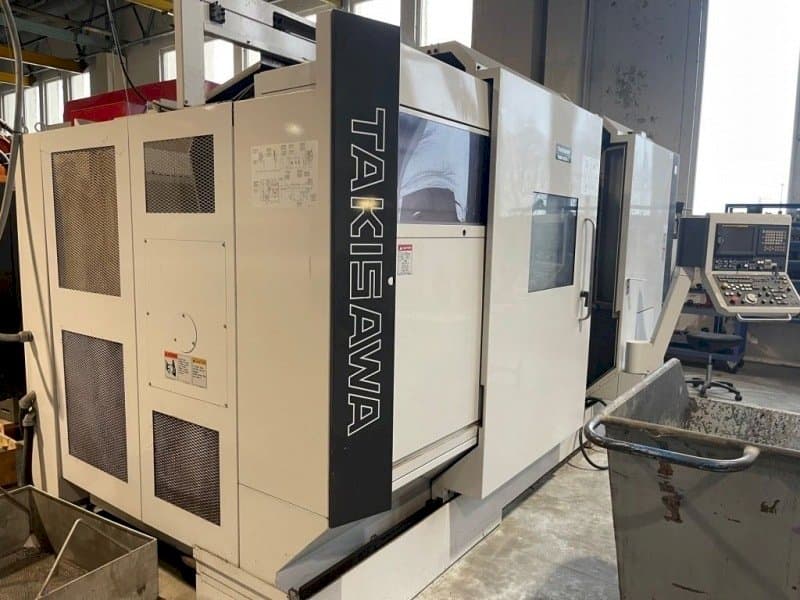

This TAKISAWA TMM250-M3 Lathe was made in 2008. It is equipped with a FANUC Series 180is-TB control unit. The machine has a spindle speed of 40-4000 rpm.

Overview

  • brand: Takisawa
  • year: 2008
  • MODEL: TMM250-M3
  • application type: Turning
  • Location: France
  • machine type: Lathe
  • availability: Sold
  • control unit brand: FANUC
  • GINDUMAC ID: FR-TUR-TAK-2008-00001

Technical Information

General Data

  • Measurements width: 4880 mm
  • Measurements depth: 2200 mm
  • Measurements height: 3050 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: FANUC
  • Model: Series 180is-TB

Main drive

  • Number of spindles: 1
  • Spindle speed range: 40-4000 1/MIN
  • Spindle motor power: 22 kW

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 260 mm
  • Z-AXIS Movement: 1300 mm
  • B-AXIS Movement: 360º MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Capacity ø350×1300 mm, x1 y1 z1 x2 z2 a / b c 560×260 (±130)×1300×228×1260×1300 mm / 230°×360° (0,001° increment)
      • - Swing over bed ø780 mm
      • - Max turning diameter ø350 (500) mm
      • - Maximum turning length between centers 1300 mm
      • - Height of the spindle axis relative to the ground 1220 mm
      • - Maximum distance between centres 1630 mm
      • - Torque 433 nm
      • - Nose a2-8
      • - Recommended chuck size ø250 mm
      • - Bar passage ø75 mm
    • Qualitative Machine Benefits:
      • - Indexable lower turret x2-axis 228 mm z2-axis 1260 mm
      • - C-axis 0,001°
      • - Bore ø86mm
      • - Full power from 485 rpm
      • - 30× atc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
