➤ Used Takisawa TS-4000YS For Sale | gindumac.com

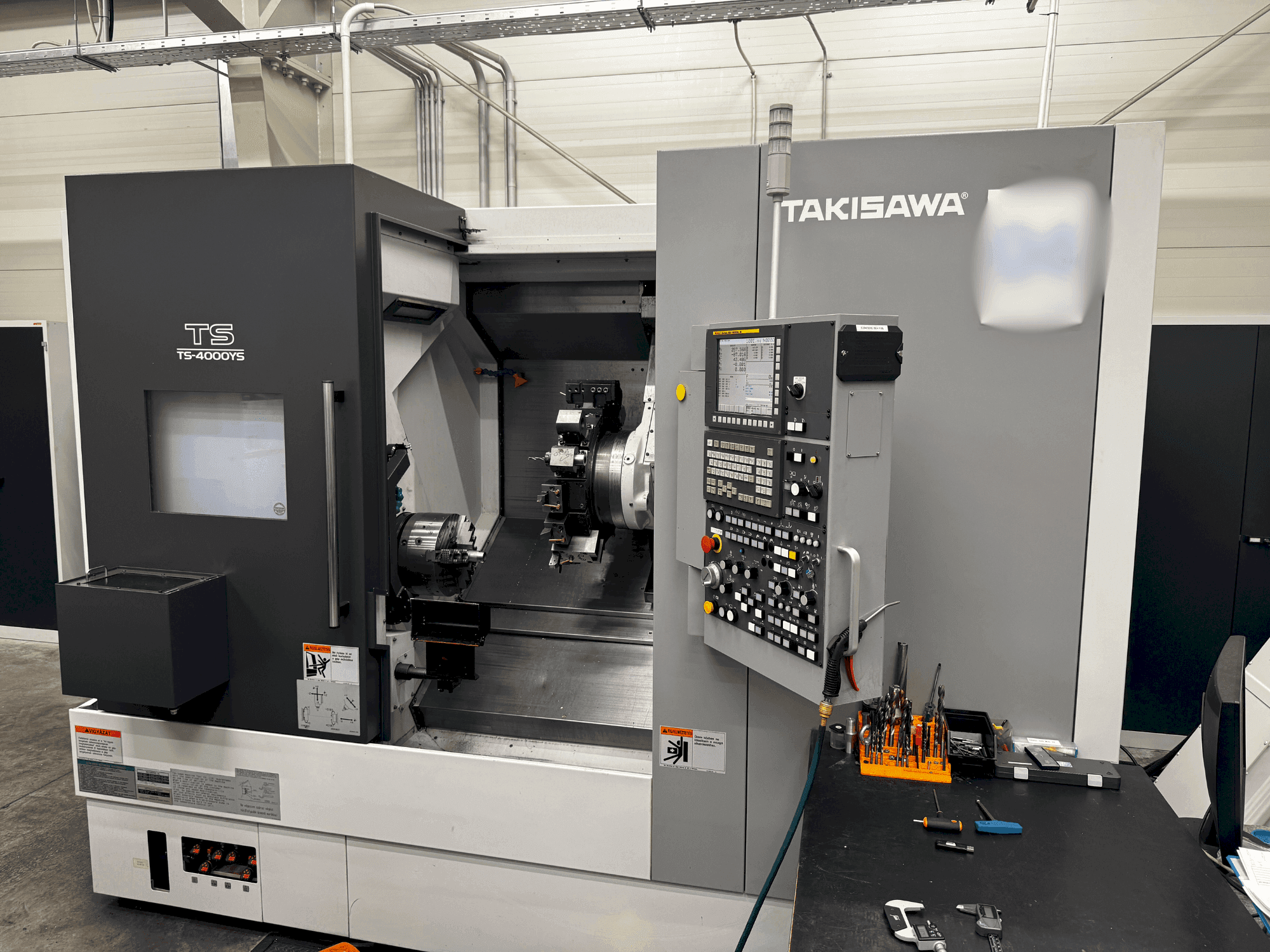

This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. It's equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information.

Overview

brand: Takisawa
year: 2021
MODEL: TS-4000YS
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TS-4000YS

Control Unit

Control Brand: FANUC
Control Model: Series 32i-Model B

Dimensions

Machine Depth: 3000 mm
Machine Height: 2300 mm
Machine Weight: 6200 kg

Movement

X-axis Travel: 267 mm
Y-axis Travel: -50 mm
Z-axis Travel: 840 mm

Technical Specification

Spindle Speed: 4200 RPM

Additional Information

Additional equipment

LNS Barfeeder interface
Part catcher
Renishaw tool measurement (main and subspindle also)
Kitagawa BB-250 3 jaws hydraulic chuck – main spindle
Kitagawa SS1881K hydraulic hollow cylinder – main spindle
Kitagawa B-206 3 jaws hydraulic chuck – sub spindle
Kitagawa SS12640K hydraulic hollow cylinder – sub spindle
15 pos turret
High power coolant pump (520W)
Work lamp

Machine Benefits

Qualitative Machine Benefits

High rigidity and built-in main and sub-spindle enable precise and vibration-free machining.
High performance and solid machine bed enable high-volume chip removal.

Technical Machine Benefits

Max. Swing diameter: 600 mm
Max. Turning diameter and length: Ø 370 x 750 mm
Max torque: 618 nm
A-axis: 780 mm
Trough hole: Ø 82 mm
Number of tool positions on turret: 15 pcs
Max. Tools speed: 6000 rpm
3 pcs live tool (radial-axial)
Live center 2 pcs
Static tool holder

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
