TCI BP-H 30120-1
TCI - BP-H 30120-1
2015
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- TCI BP-H 30120-1 Waterjet Cutting Machine

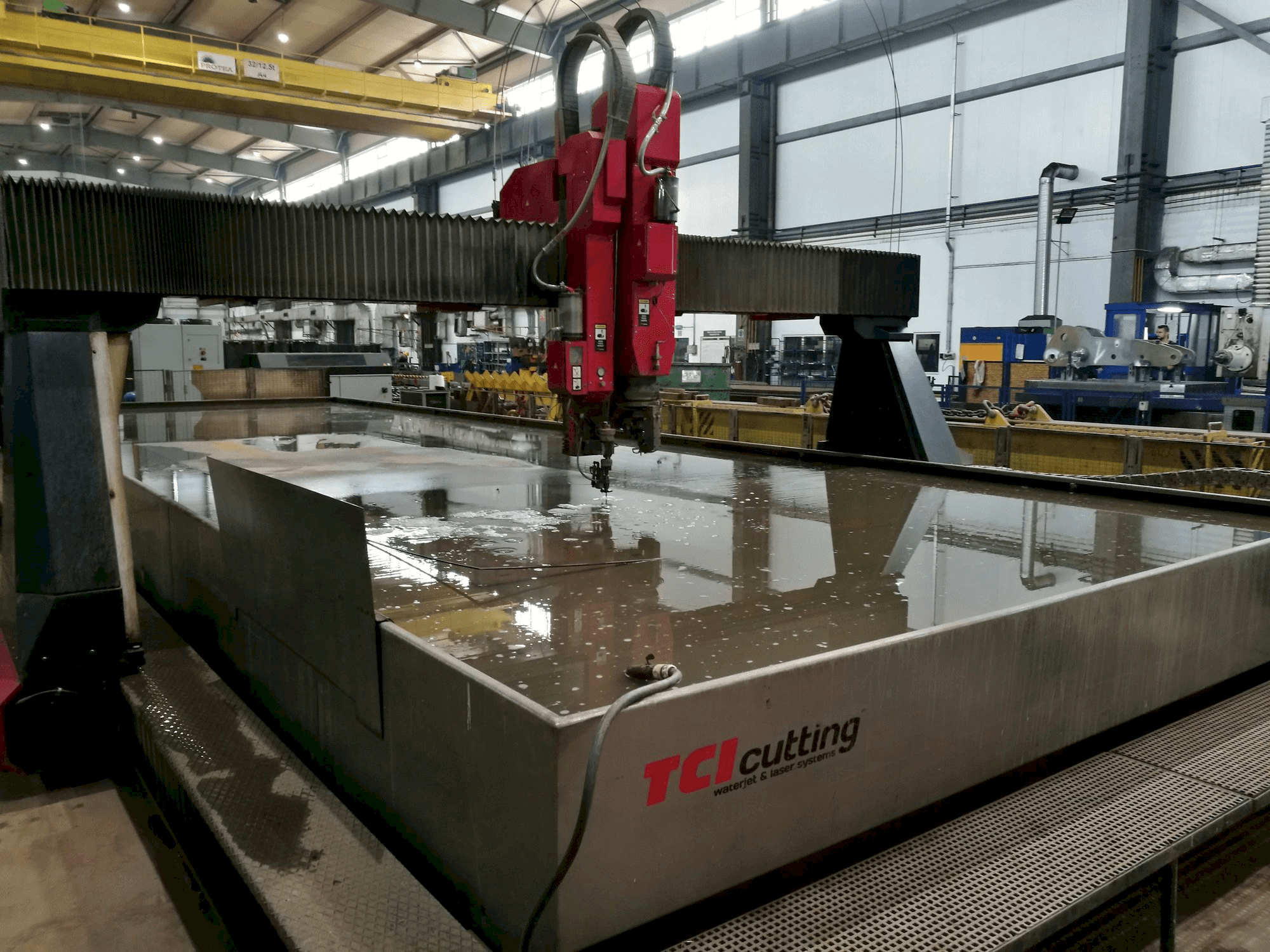

This TCI BP-H 30120-1 Waterjet Cutting Machine was built on 2015 in Spain and has been operative for 14979 hours. Equipped with a SIEMENS control unit, this machine includes two cutting heads 2D and 3D, a TCI system for softering water and a KTM Streamline PRO 125HP 6200 bar.
Overview
- brand: TCI
- year: 2015
- MODEL: BP-H 30120-1
- production hours: 14979
- application type: Water Cutting
- Location: Poland
- machine type: Waterjet cutting machines
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: PL-WAT-TCI-2015-00001
Technical Information
General Data
- Measurements width: 3800 mm
- Measurements depth: 14000 mm
- Measurements height: 3500 mm
- Machine weight: 16000 kg
Control Unit
- Brand: SIEMENS
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 12000 mm
- Z-AXIS Movement: 300 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 12000 mm
Media
- Main electronic connection: 3x400V / 50Hz
- Oil water separator: Yes
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - KTM Streamline PRO 125HP 6200 bar
- - Two cutting heads 2D and 3D
- - TCI system for softering water
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
