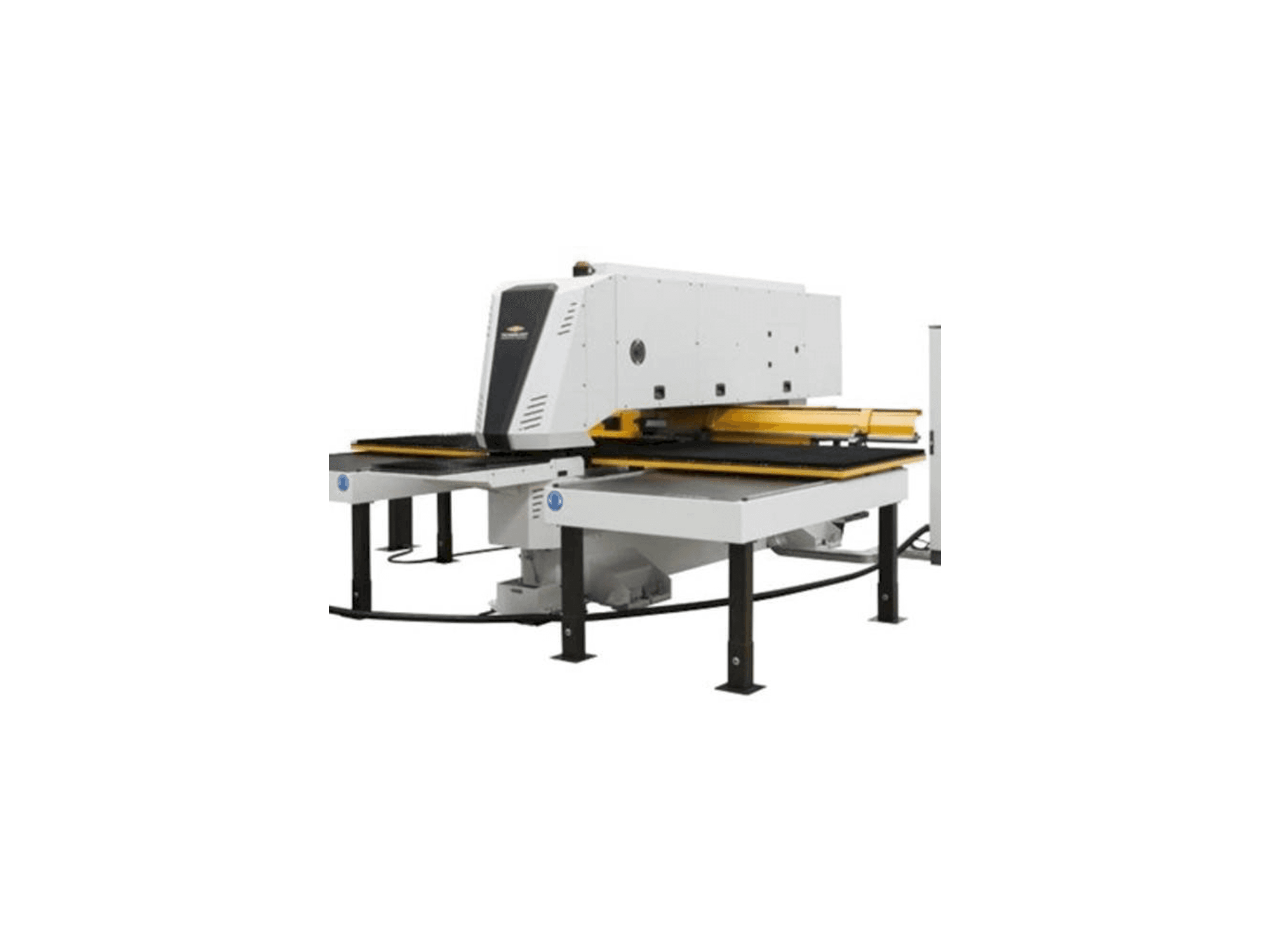

TECHNOLOGY TP OMEGA 3610 Punching machine

This TECHNOLOGY TP OMEGA 3610 Punching machine was manufactured in the year 2018. It is equipped with a FANUC Series 31 l PB control unit. The machine has a punching force of 300 kN, it comes with 1 year warranty

Overview

brand: TECHNOLOGY
year: 2018
MODEL: TP OMEGA 3610
application type: Punching
Location: Italy
machine type: Punching Machine
availability: Sold
control unit brand: Fanuc

Technical Information - TECHNOLOGY TP OMEGA 3610

General Data

Measurements width: 15380 mm
Measurements depth: 4950 mm
Measurements height: 2360 mm

Control Unit

Brand: Fanuc
Model: Series 31 i PB

Main drive

Punching force: 300 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working size mm 1500 x 2500, workable sheet with an automatic repositioning mm 1500 x 5000
- - Maximum punching frequency stroke/min. 750
- - Max. Number of tool stations nr. 5
- - Max. Number of index tool stations nr. 5
- - Max number of tools with multi-tool nr. 50
- - “c” frame, x-y axis sheet moving system, automatic repositioning system with pneumatic cylinders
- - Servo-electric punching unit system, tool lubrication system, n. 3 locking sheet clamps,
- - Auto-index multi-tool management system, integrated auto-index system, automatic tool change system with 5 stations (smart turret), missed extraction sensor
- - Support tables with brushes
- - Cnc functions for high speed forming
Qualitative Machine Benefits:
- - The machine comes with 1 year warranty
- - Stand-alone machine console with 15" touch screen display
- - Software installed on machine console tecnocontrol or tecnocam interface
- - Electrical cabinet on the ground
- - Vacuum scraps system
- - Scraps container
- - Pedal for opening / closing sheet metal clamps
- - Pedal to operate single punching
- - Tele assistance
- - Instruction manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
