➤ Used Tornos SWISS GT 26 Lathe

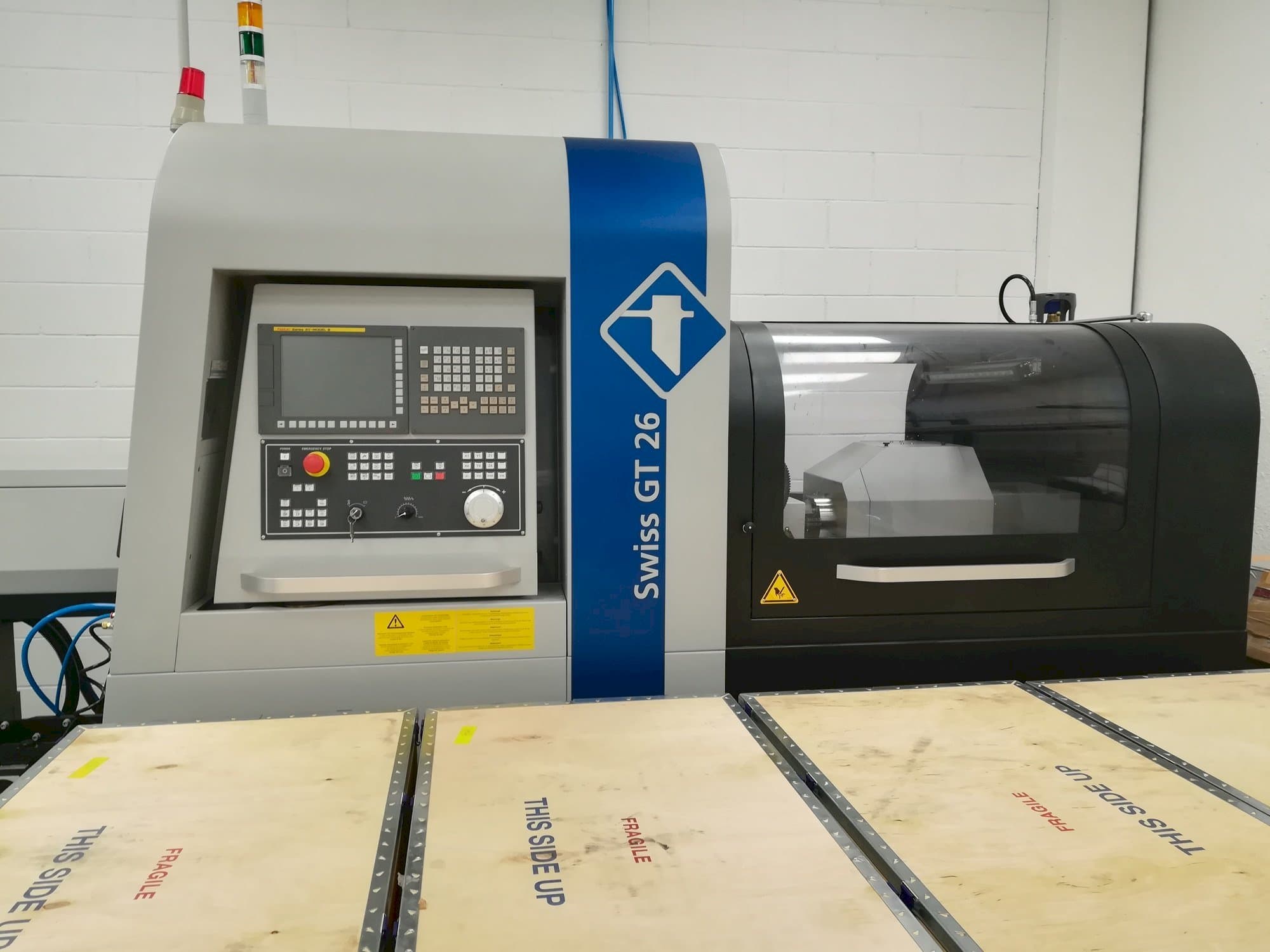

This Tornos Swiss GT 26 Lathe was manufactured in 2015 in Taiwan and has been working for only 100 hours approximately. Operated through a FANUC 31i-Model B Control unit, this machine incorporates 4 driven tools. It has an automatic centralised lubrication cycle and a 20-bar lubrication pump with manual selection of filters, among many other technical benefits. It presents perfectly good conditions, as it is almost new.

Overview

brand: TORNOS
year: 2015
MODEL: Swiss GT 26
production hours: 100
application type: Turning
Location: Spain
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS Swiss GT 26

General Data

Measurements width: 1270 mm
Measurements depth: 2710 mm
Measurements height: 1990 mm
Machine weight: 3500 kg

Control Unit

Model: 31i-Model B
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 10.5 kW

Movement

X-AXIS Movement: 220 mm

Workpiece

Workpiece drm: 25.4 mm

Turret

Number of turrets: 2
Number of tool slots: 40
Rotating tools: Yes

Tools

Slots in storage: 40

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotating guide bush with integrated motor
- - S21 rear platten & s11 front platten rotating tool motor
- - C1 + c4 axes
Qualitative Machine Benefits:
- - Interpolation in polar coordinates
- - Pneumatic workpiece ejector + oil cleaning of collet
- - Machining along 5 simultaneous axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
