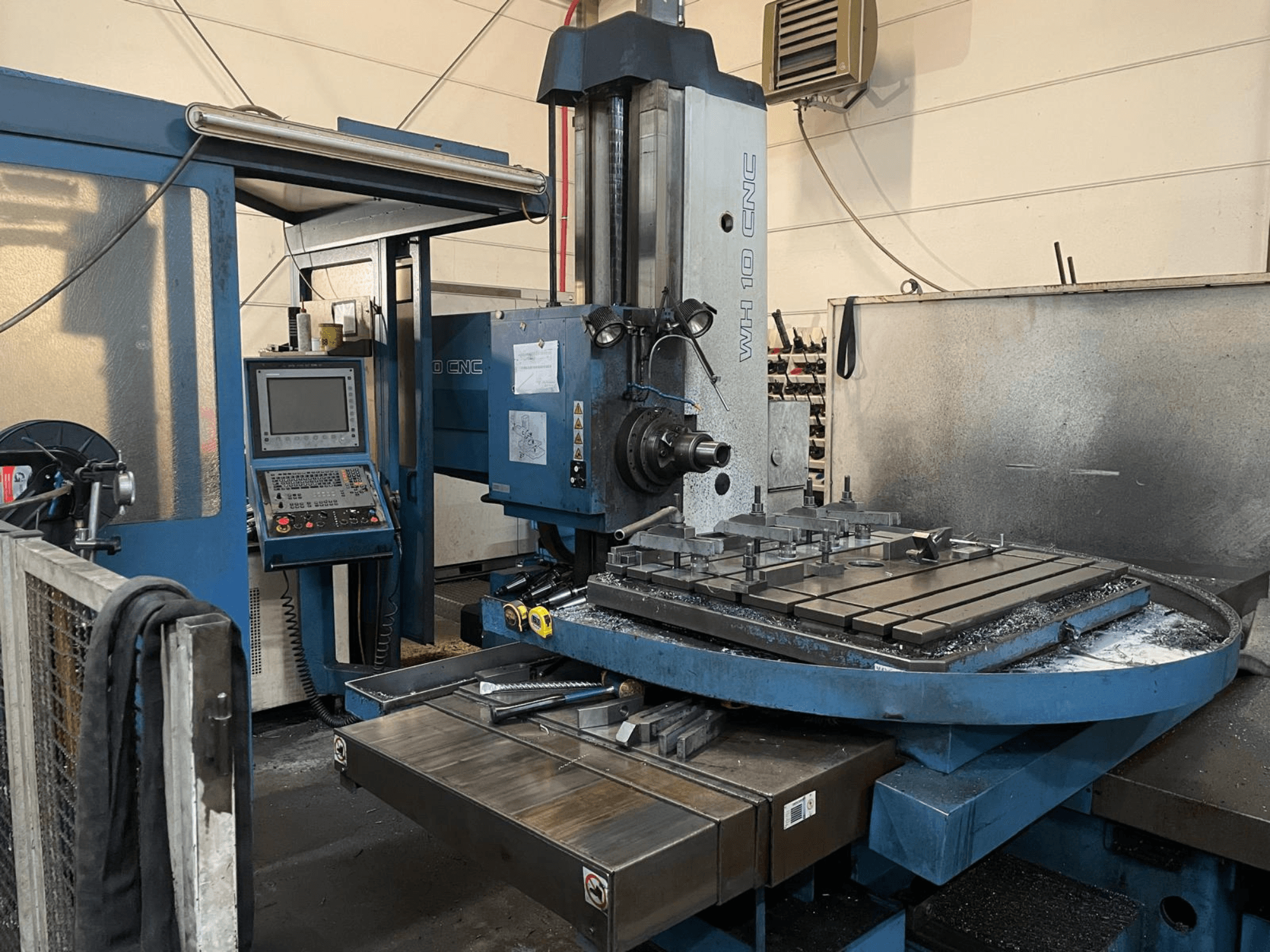

Boring machine manufactured in 2007. This TOS WH 10 CNC features a work spindle diameter of 100 mm and a maximum workpiece weight capacity of 3000 kg. The machine includes a programmable spindle speed range of 10-1800 min-1 and a robust clamping surface measuring 1000 x 1120 mm. If you are looking to get high-quality boring capabilities, consider the TOS WH 10 CNC machine we have for sale. Contact us for further details.
Overview
- brand: TOS
- year: 2007
- MODEL: WH 10 CNC
- application type: Other Machine Tools
- Location: Germany
- machine type: Boring Machine (Metal)
Technical Information - TOS WH 10 CNC
Dimensions
- Machine Weight: 12500 kg
Movement
- Number of Axes: 2
Technical Specification
- Taper Size: ISO 50
Additional Information
Headstock / Spindle
Work spindle diameter: 100 mm
Hollow spindle flange diameter: 221.44 mm (h5)
Hollow spindle centering opening (W): 130 mm (H6)
Working spindle extension (quill travel, W): 630 mm
Tool clamping: Hydromechanical
Programmable spindle speed range: 10–1800 min⁻1, with 50–120% override via potentiometer during operation
Main motor (as provided): 20 kW / 2000 min⁻1
Frame / Axes
Vertical adjustment of spindle head (Y): 1100 mm
Minimum height of spindle axis above work table: 0 mm
Table
Max workpiece weight: 3000 kg
Clamping surface: 1000 x 1120 mm
T-slots (number/size): 7 / 22 H8 mm
T-slot spacing (inside/edge): 160 / 100 mm
Table centering opening: Ø100 H6, depth 13 mm
Transverse table travel (X): 1250 mm
Longitudinal slide travel (Z): 940 mm
Hydraulics, lubrication, coolant
Working pressure (hydraulic circuits): 6.5–7.2 MPa
Operating fluid volumes:
Headstock: 32 dm3
Hydraulic unit: 15 dm3
Lubrication unit: 5.5 dm3
Coolant tank CHZ-WH10: approx. 40 dm3
Other data
Noise level (A): max. 80 dB
Machine dimensions: see dimensional sketch
Usable feed forces:
X (cross adjustment of table): 16 kN
Y: not specified
Tool racks: included (details not specified)
Additional equipment
Roemheld tower clamping system
Angle plates (Angles)
Mounting blocks
