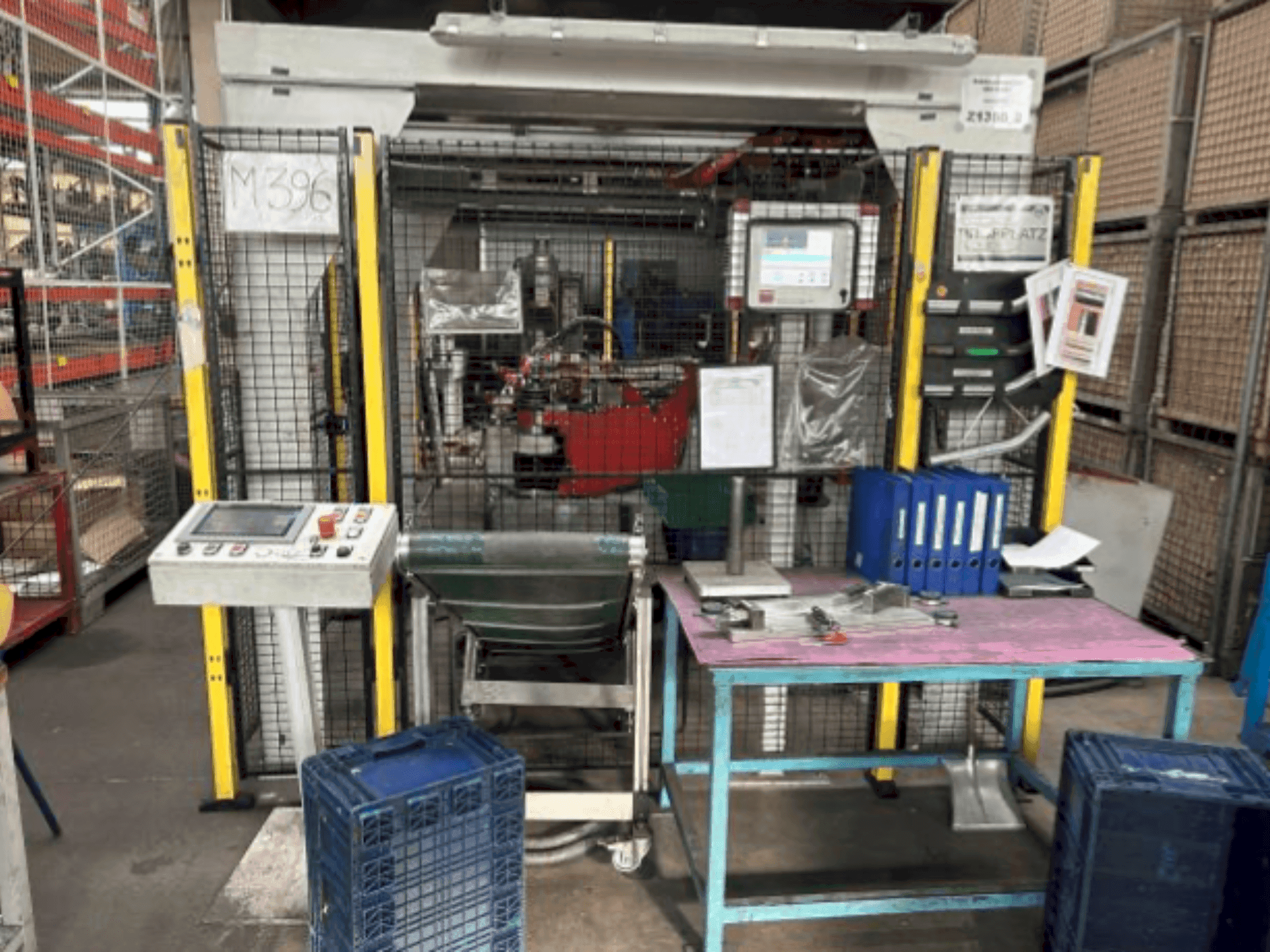

Front view of Transfluid DB 650 ST-SPS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Transfluid DB 650 ST-SPS

Photo Gallery

Transfluid - DB 650 ST-SPS DE-BEN-TRA-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Transfluid DB 650 ST-SPS For Sale | gindumac.com

This Transfluid DB 650 ST-SPS was manufactured in 2017. It is a robust die bending machine designed for efficient handling and bending of pipes with lengths from 200 to 500 mm and diameters up to 60 mm. It features a bending angle of up to 190° and a high bending speed of 36°/sec, suitable for both steel and stainless steel pipes. For more information about this machine, please reach out to us.

Overview

brand: Transfluid
year: 2017
MODEL: DB 650 ST-SPS
application type: Bending
Location: Germany
machine type: Die Bending Machine

Technical Information - Transfluid DB 650 ST-SPS

Dimensions

Machine Depth: 12000 mm
Machine Height: 2200 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Operating voltage: 400 v ac 3n / pe / 50 hz
Control voltage: 24 v dc
Rated current: 40 a
Main fuse: 80 a
Protection class (control): ip 54

Extra Information

Machine Performance Loading + Handling for Pipe Lengths: 200 - 500 mm Capacity: 100 pieces for pipe-® 45 mm Length Measuring System (optional): Tolerance +/- 0.5 mm Round Steel Pipe: Up to ® 50 x 3.0 mm Round Stainless Steel Pipe: Up to ® 50 x 2.0 mm Square Steel Pipe: Up to 35 x 35 x 2.5 mm Max. Section Modulus: 5.0 cm3 Bending Angle: 180° + 10° Overbend Bending Speed: 36°/sec Repeatability Bending Axis: ‡ 0.1° Tube Insertion Length / Usable Length: 500 mm Radius Range: Max. 125 mm Bending Height: 1050 mm Bending Axis Drive: Electrohydraulic Drive Secondary Axes: Electrohydraulic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
