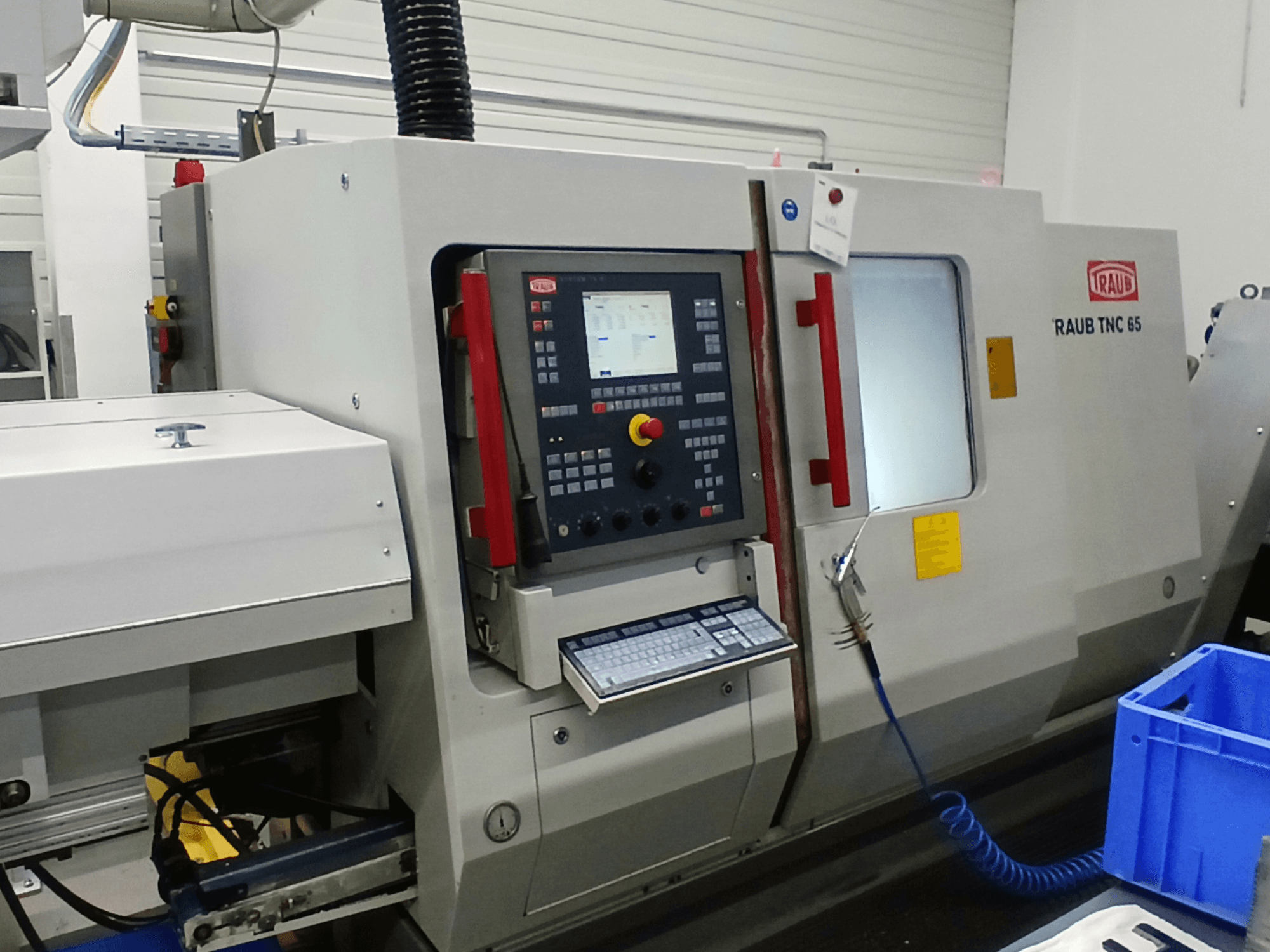

TRAUB - TNC 65 DGDE-TUR-TRA-2009-00002

• Control system TX8i with 64-bit RISC high-performance processor and additional PLC high-performance processor, integrated PC

• TX8i control with 64-bit technology including TFT color flat screen and electronic handwheel

• Electrical system according to VDE/EN 60204

• Multi-range transformer for 460V / 400V / 380V / 220V / 200V, 50 Hz

• Operating voltage machine 400V 50 Hz

• Operating voltage accessories 230V 50 Hz

• Control voltage 24V DC

• Machine equipped with interference suppression set for industrial networks (EMC compliant)

• CE conformity declaration and CE marking

• Designed for machining metals and plastics with defined cutting edge

• Main spindle C-axis (numerically controlled turning and positioning device)

• Counter spindle C-axis with speed-synchronous control

• Tool drive turret 1: power 3.1 kW, speed 4000 rpm

• Tool drive turret 2: power 3.1 kW, speed 4000 rpm

• Tool monitoring TX8i with wear and breakage control via axis motor monitoring

• Thread cutting without compensating chuck

• Software TRAUB Polyform for milling programming with C-axis (front, longitudinal, cylindrical surface)

• Network connection preparation with Ethernet interface and RJ45 socket

• Z/V axis counter spindle software with defined end position (plan surface transfer)

• Maximum clamping diameter up to 60 mm depending on system

Additional equipment

• Workpiece unloading device with gripper in turret 2 (automation)

• Chip conveyor (hinged belt), discharge height 1200 mm

• High-pressure coolant system with programmable pressure stages 20 / 5 bar

• Preparation for extraction and filter system, connection Ø200 mm, 400V socket

• Bar feeder interface preparation DNH 61

• Collet chuck system RÖHM for spindle Ø65 mm

• Reducer sleeve for main spindle Ø65 mm
