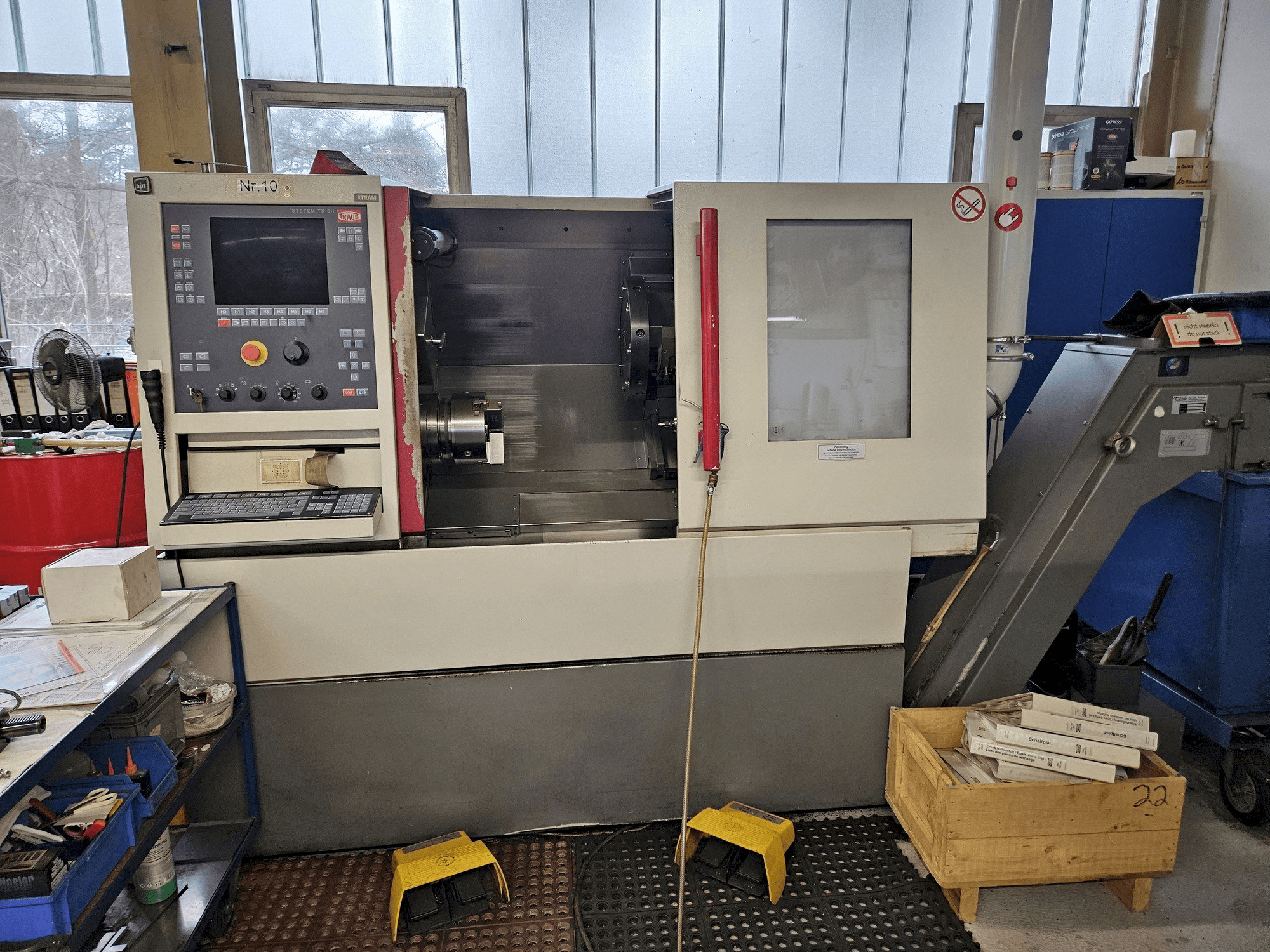

Front view of TRAUB TNE300 (1999) (1999) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRAUB TNE300

Photo Gallery

TRAUB - TNE300DE-TUR-TRA-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe TRAUB TNE300 (1999) for sale | GINDUMAC.COM

This TRAUB TNE300 Lathe was manufactured in 1999. It has a turning length of 450 mm and a turning Ø of 275 mm. The turning speed is 4,000 rpm. This turning machine is operated with a TRAUB System TX 8H control. It has 2 axes (X-axis 210 mm, Z-axis 450 mm). Contact us anytime for further questions!

Overview

brand: TRAUB
year: 1999
MODEL: TNE300
production hours: 9883
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - TRAUB TNE300

Dimensions

Machine Depth: 1600 mm
Machine Height: 1800 mm
Machine Weight: 3000 kg

Movement

X-axis Travel: 210 mm
Z-axis Travel: 450 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

All tools in the cupboard are included in the price.
spindle passage 65mm / chuck diameter 200-250mm / max. turning diameter 275mm
travel over centre of rotation 25mm / max. turning length 450mm
turning diameter over face slide 372mm / turning diameter over bed 560mm
tool holder 8 places / shank diameter 30mm / chisel cross-section 20x0 mm
feed x-axis / slide path 210mm / feed 3000 N / rapid traverse 12 m/min
Z-axis / slide travel 450mm / feed 6000 N / rapid traverse 18 m/min
tailstock / pinol diameter 70mm / quill stroke70mm
coolant lubrication system / capacity 160 litres

Machine Benefits

Technical Machine Benefits

Turning length 450 mm
Turning Ø 275 mm
Ø above the bed 560 mm
Ø above transversing slide 372 mm
Length between centers 500 mm
Spindle bore 65 mm
Main drive: spindle speed max. 4000 min-1 / torque 183 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
