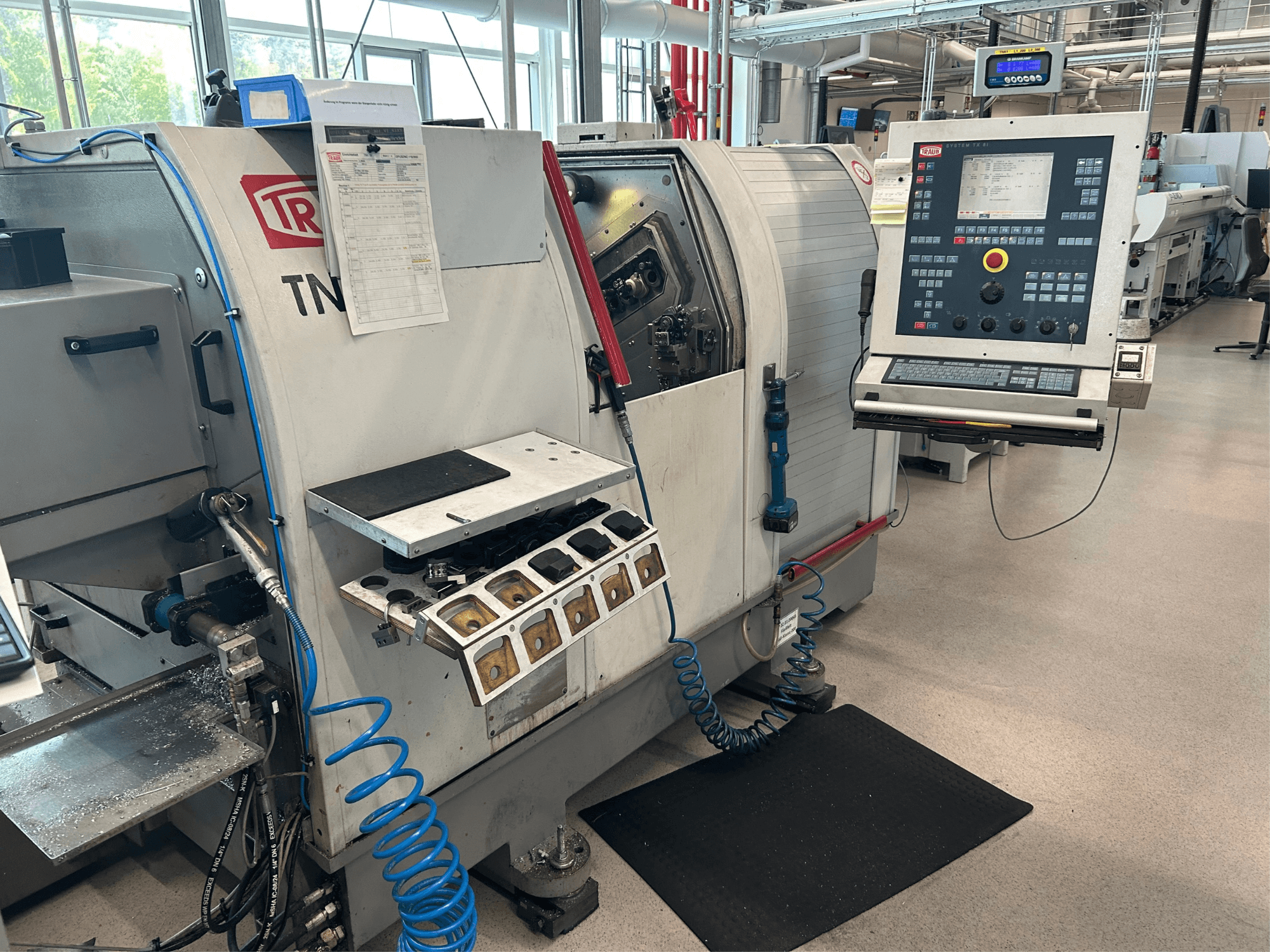

TRAUB - TNK 36DE-TUR-TRA-2003-00001

TECHNICAL DATA

• MDE Interface: Yes

• Tool Monitoring: Yes

• Rigid Tapping: Yes (without compensation chuck)

• Main Spindle Bore: 36 mm

• Main Spindle Drive Power: AC 6.7 / 10.7 kW

• Top Turret Stroke X/Z: 50 / 100 mm

• Rear Attachment Stroke X: 73 mm

• Rear Attachment Stroke Y: ±50 mm

• Main Spindle C-Axis: Yes

• Hainbuch Change Parts: Yes

• Hainbuch Setup Aid Base Body: Yes

• Hainbuch Manual Change Device: Yes

• Counter Spindle: Motor Spindle

• Counter Spindle C-Axis: Yes

• Counter Clamping Pressure Device: Yes

• Workpiece Ejection Device: Yes

• Hainbuch Axfix Chuck: Yes

• Upper Tool Carrier: Yes

• Electronic Gearbox: Yes

• X3 Cross Axis for Front Unit: Yes

• Front Unit: 5-position

• Driven Tools on Front Unit: Yes

• Cut-Off Side Machining Station: Yes

• Driven Tools on Cut-Off Side Station: Yes

• Workpiece Unloading Device: Gripper

• Coolant Tank Capacity: 230 l

• Coolant Pressure: 7 bar

• Coolant Flow Rate: 50 l/min

• Internal Coolant Supply: 30 bar

• High Pressure Coolant: 120 bar (front and rear machining station)

• Coolant Filter: Knoll VRF 150/750 Vacuum Rotary Filter

• Suitable Materials for Filter: Aluminum, Plastic, Brass, Steel

• Wash Gun: Yes

• Connected Load: 22 kW

• Maximum Bar Length: 3 m

• Maximum Bar Diameter: 36 mm

• Operating Voltage: 400 V, 3~, 50 Hz

• Control Voltage: 24 V AC

• Valve Voltage: 24 V DC

• Clutch Voltage: 24 V DC

• Total Installed Power: 33 kW

• Total Rated Current: 60 A

ADDITIONAL EQUIPMENT OPTIONAL

• FMB turbo 5-42 XT / 3200"C" Bar Feeder

• Bar Feeder Year: 2003

• Hinged Belt Chip Conveyor

• Chip Conveyor Discharge Height: 950 mm

• Guide Tubes D25, D36

• Running Workpiece Stop, Shank 16 × 16 mm

• Brankamp CMS 100 Collision Monitoring
