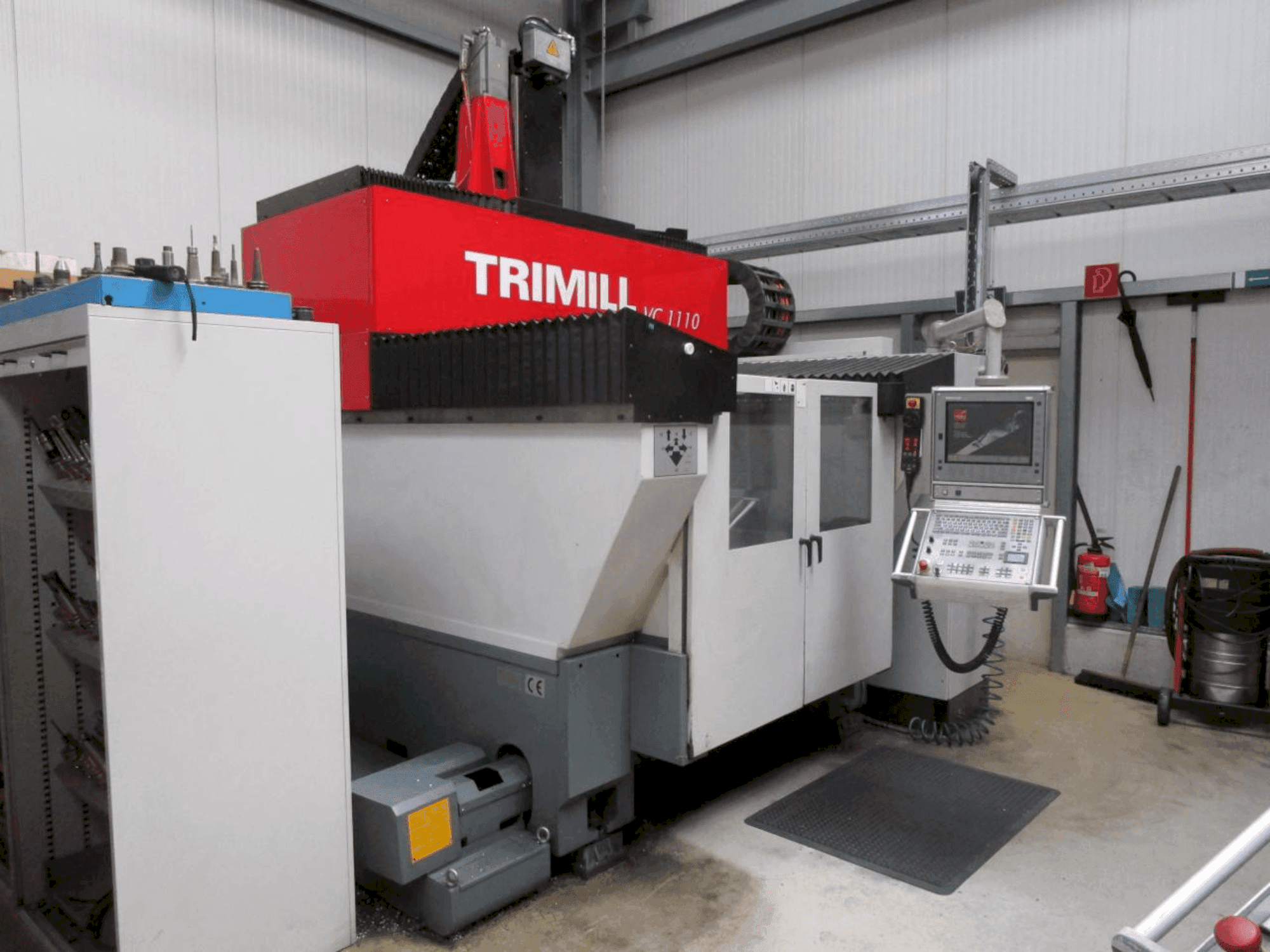

Front view of TRIMILL VC1110  machine

TRIMILL - VC1110DE-MIL-TRI-2012-00001

43,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis TRIMILL VC1110 milling machine was manufactured in 2012. It features a robust Heidenhain 530 HSCI control, with travel paths of 1100mm on the X-axis, 1000mm on the Y-axis, and 700mm on the Z-axis. The machine supports a clamping surface of 1350 x 1300 mm, can handle a maximum load of 8000kg, and offers a speed range of 30-14,000 rpm. A great opportunity to buy this TRIMILL VC1110 milling machine. Contact us for further details regarding this milling machine.

Overview

  • brand: TRIMILL
  • year: 2012
  • MODEL: VC1110
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - TRIMILL VC1110

General Data

  • Machine weight: 15000 kg

Control Unit

  • Brand: Heidenhain
  • Model: 530 HSCI

Main drive

  • Spindle speed range: 30 - 14000 rpm 1/MIN
  • Tool taper: HSK A80A
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1100mm
  • Y-AXIS Movement: 1000mm
  • Z-AXIS Movement: 700mm

    Additional Equipment

    • - Tool magazine with 10 compartments
    • - Air through spindle

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High spindle speed, rapid traverse rate, large clamping surface.
        • - Feed rates: working feed 20 m/min, rapid traverse 30 m/min
        • - Nominal speed in xyz: 2000 rpm
        • - Motor nominal speed: 1470 rpm
        • - Max. Torque: 170 nm
        • - Max. Workpiece dimensions with max. Tool length of 300mm: 1100 x 1000 x 500 mm
        • - Number of t-slots x width: 10x18mm
      • Qualitative Machine Benefits:
        • - High precision with excellent position accuracy, supports heavy and large workpieces.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
