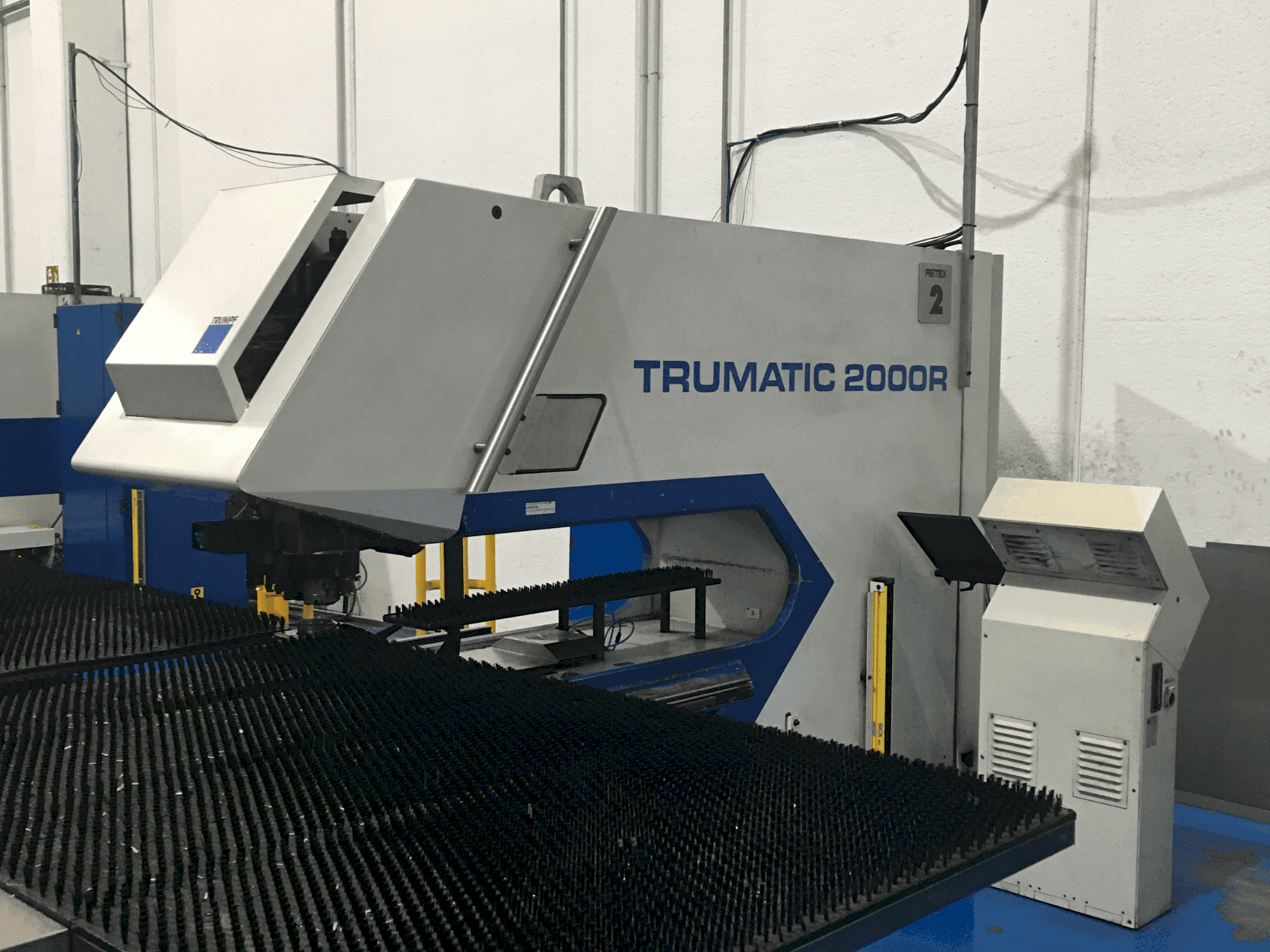

This 3-axis TRUMPF TC2000R was manufactured in 2004, offering robust CNC punching capabilities. Ideal for precision operations, it features a reliable design suitable for varied punching tasks. If you are looking to get high-quality punching capabilities, consider the TRUMPF TC2000R machine we have for sale. Contact us for more information.
Overview
- brand: TRUMPF
- year: 2004
- MODEL: TC2000R
- application type: Punching
- Location: Spain
- machine type: CNC Punching Machine
- availability: Immediately
- control unit brand: TRUMPF
Technical Information - TRUMPF TC2000R
General Data
- Measurements height: 2255 mm
- Machine weight: 8000 kg
Control Unit
- Brand: TRUMPF
Main drive
- Number of axis: 3
Workpiece
- Workpiece weight: 75 kg
Clamping unit
- Clamping force: 4000 - 17000 kN
Media
- Main electronic connection: 17 kVA
- Power consumption: 8 kW
Additional Information
- Technical Machine Benefits:
- - Work area (x x y): 1275 x 1280 mm
- - Work area expandable by repositioning with table extensions: 1275 x 2030 mm
- - Max. Sheet thickness: 6. 4 mm
- - Max. Punching capacity: 180 kn
- - Max. Pass-through height: 38 mm
- - Positioning deviation: ± 0. 1 mm
- - Average dispersion: ± 0. 03 mm
- - Pneumatic connection: 7” bars
- - Compressed air: 8 nm³/h
- - Tools Linear tool changer: 9 tools Quantity when using Multitool (2 clamps): 9 to 90 tools Rotation of all tools: 360° Tool change time: Individual tool: Approx. 3.5 sec Multitool: Approx. 0.9 sec Max. punching diameter: Individual travel: 76 mm Standard Multitool: 200 mm Programmable Parts Trapdoor Max. part size: 200 x 200 mm, sortable into two boxes Controller CNC Control: TRUMPF Color Monitor: 10.4 inches Hard Drive: 300 MB storage for CNC programs Disk Drive: 3.5 inches Platform: PC Pentium with Windows NT Software: ToPs 2000 Workshop-Oriented Programming Safety Safety System: Optical safety barriers Optical Barrier Type: Double-ray optical barrier
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
