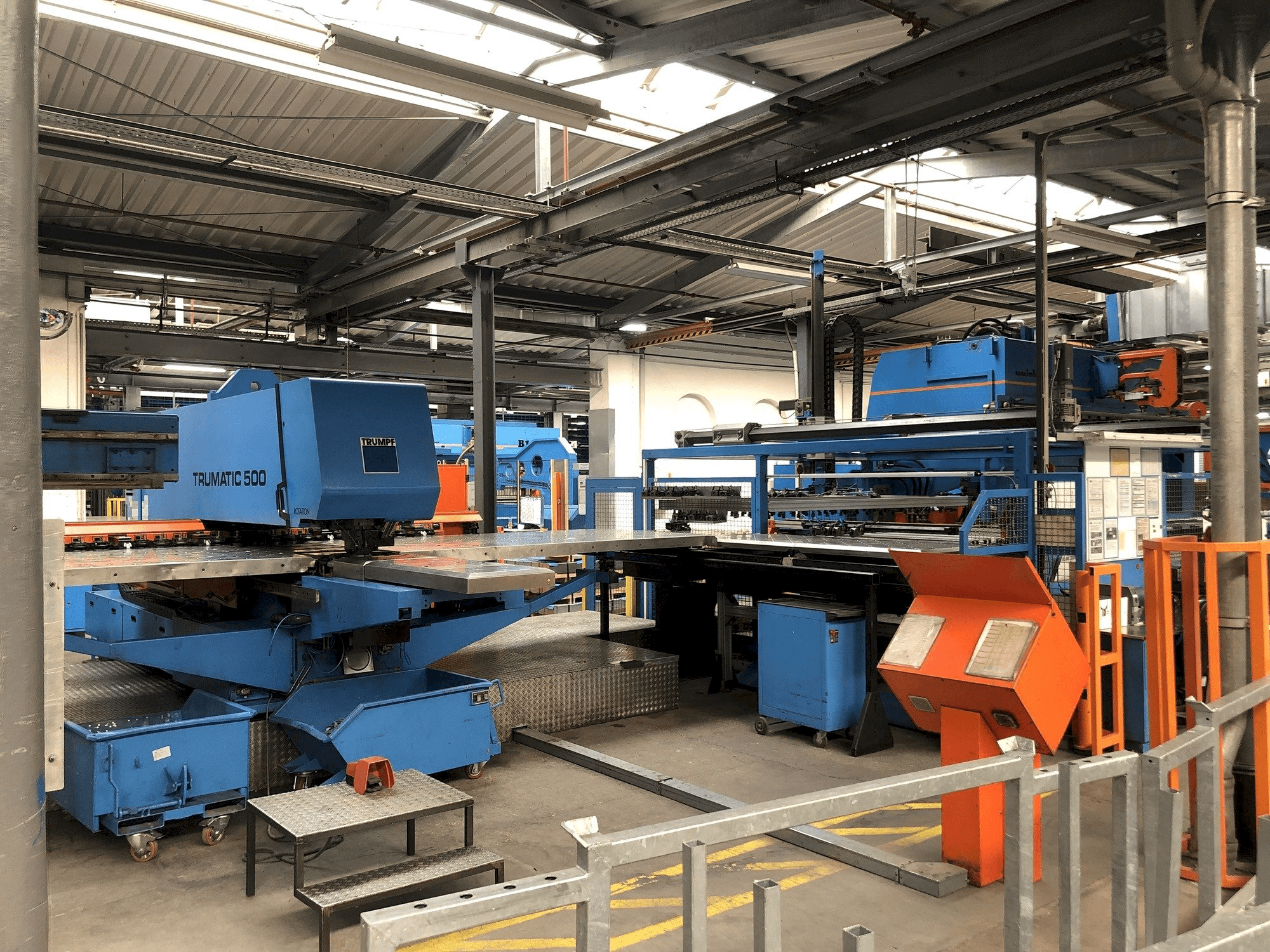

Front view of Trumpf TC 500  machine

TRUMPF - TC500/ - Weinbrenner B12DE-PUN-TRU-1996-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Trumpf TC 500 + Weinbrenner B12 Punching and Bending machine were manufactured in the year 1996 in Germany and has 113660 production hours. It is a combination center of two machines Trumpf TC500/ + Weinbrenner B12 and is equipped with a SIEMENS SINUMERIK control unit. The machine has a punching force of 220 kN, is in very good condition and well maintained.

Overview

  • brand: TRUMPF
  • year: 1996
  • MODEL: TC500/ - Weinbrenner B12
  • production hours: 113660
  • application type: Punching
  • Location: Germany
  • machine type: Punching Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF TC500/ - Weinbrenner B12

General Data

  • Measurements width: 7900 mm
  • Measurements depth: 6300 mm
  • Machine weight: 13800 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK

Main drive

  • Punching force: 220 kN

Workpiece

  • Workpiece weight: 230 kg

Table

  • Outer length: 3000 mm
  • Outer width: 1600 mm

Media

  • Power consumption: 19 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Stroke sequence: 780 1/min
      • - Max. Sheet thickness: 8mm
      • - X axis: 90 m/min y axis: 60 m/min simultaneous: 108 m/min c axis: 360°/s
      • - Position deviation: +/- 0. 1mm
      • - Average position spread: +/- 0. 03mm
      • - Trumalift with sheetmaster
      • - 2 stopa raw sheet stations (movable)
      • - Quick set quickload
      • - 36 complete punching tools incl. Tool cassettes
    • Qualitative Machine Benefits:
      • - Very well maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
