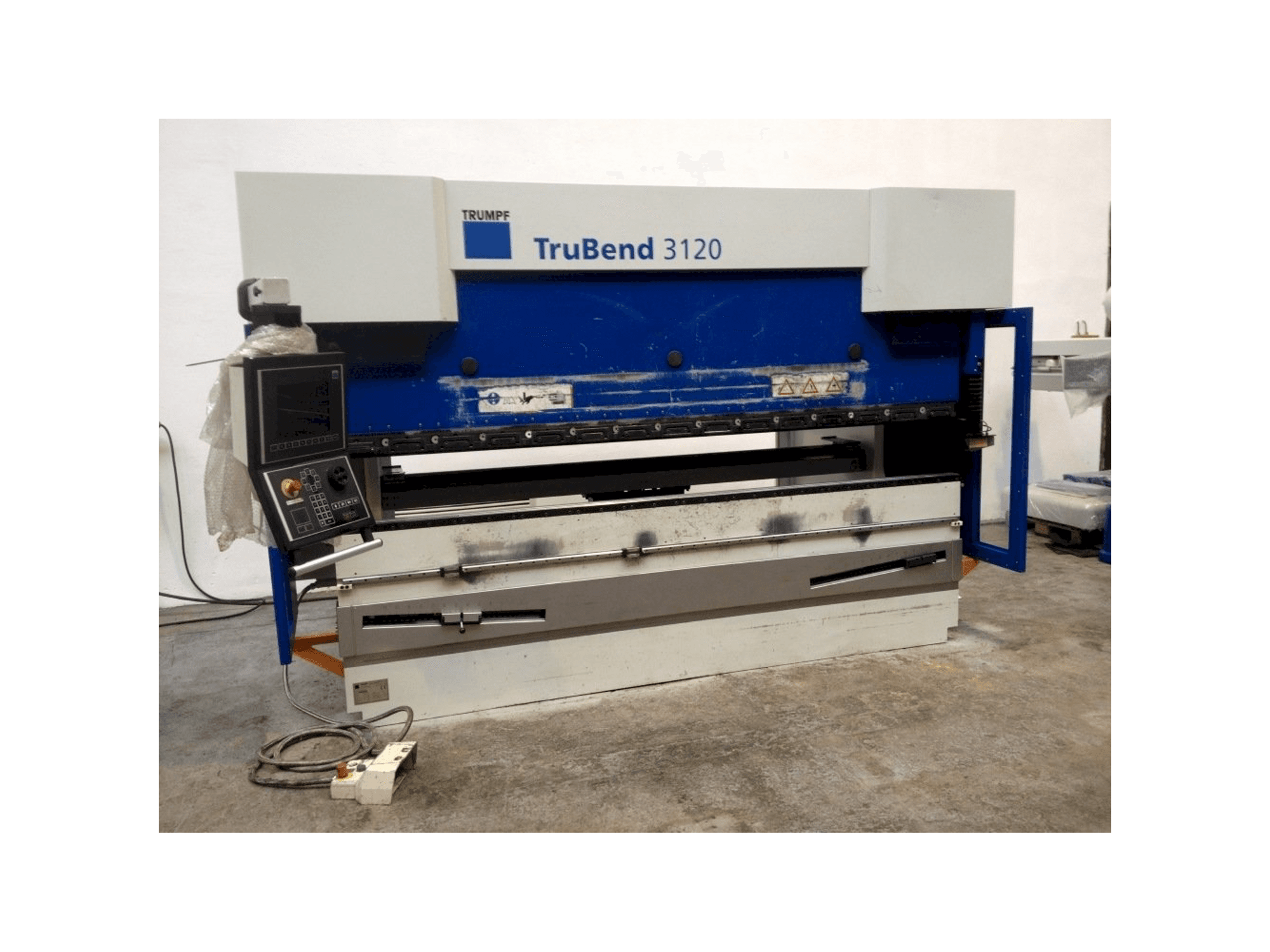

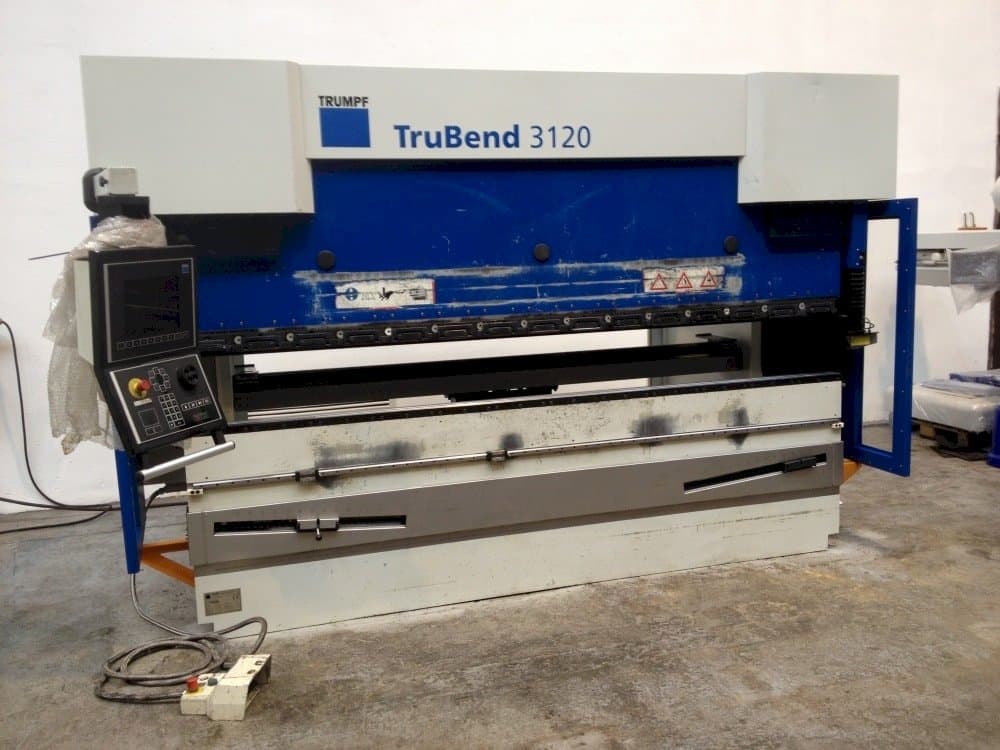

Front view of Trumpf TruBend 3120 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruBend 3120

Photo Gallery

TRUMPF - TruBend 3120CZ-BEN-TRU-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TruBend 3120 Bending Machine

This Trumpf TruBend 3120 Bending Machine from Taiwan was manufactured in 2007. It has a working record of 24817 production hours. It is equipped with a Trumpf DA 65 TW control unit. This machine can work with a pressing force up to 1200 kN.

Overview

brand: TRUMPF
year: 2007
MODEL: TruBend 3120
production hours: 24817
application type: Bending
Location: Czech Republic
machine type: Press Brake
control unit brand: TRUMPF

Technical Information - TRUMPF TruBend 3120

General Data

Machine weight: 8300 kg

Control Unit

Model: DA 65 TW
Brand: TRUMPF

Main drive

Pressing force: 1200 kN
Bending length: 3110 mm

Media

Power consumption: 13,2 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Cnc controlled backgauge for axes x, r
Manual backgauge for axes z1/z2
Ram adjustment yin2 +/- 3mm - cnc crowning
Hydraulic oil coolant
Stainless steel oil tank
Safeguards
Manual tool clamping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
