TRUMPF - TruBend Cell 500 TRUBEND Cell 5000 with TruBend 5085 extended version and BendMaster 60DE-BEN-TRU-2015-00001

• Machine: TruBend 5085 (2720 mm x 850 kN) with BendMaster 60

  • Stable all-steel machine frame

  • Press beam with spherical bearing and tilt adjustment

  • Electro-hydraulic top drive with 4-cylinder technology

  • Generous edge clearance

  • Flat front covers

  • Modern block hydraulics

  • Electronic pressure balance

  • Measuring system with glass scale and spring compensation

  • Hydraulic oil in the machine (lifetime lubrication)

  • Oil cooler

  • Control cabinet cooling via air-to-air heat exchanger

  • Modern machine design

• Stop/Backgauge

  • Stop system

  • Backgauge system: 2 axes (X and R)

• Tool clamping

  • Upper tool holder, manual clamping, hardened

  • Lower tool holder, hydraulic clamping, hardened

  • Lower tool shift, 2 positions, pneumatic

• Crowning

  • Manual crowning

• Control

  • TRUMPF TASC 6000

  • Graphical workshop programming

  • Windows XPe (embedded), Pentium 4, 2.8 GHz

  • 2 GB RAM

  • 15-inch touchscreen

  • Network-enabled

  • Teleservice via modem

• Operation

  • Control panel with LCD keypad and foot switch

  • Communication rail

• Safety

  • Standard safety devices

  • BendGuard safety device for upper tools up to 390 mm

  • CE marking

Additional equipment

• TRUMPF BendMaster automation (standard features)

  • Robot/Handling

    • Stable base and manipulator in die-cast aluminum

    • Load capacity 60 kg (workpiece plus gripper)

    • Low-profile welded floor track

    • Sheet metal sensor for contour detection

    • Rotary feedthrough for easy gripper change

    • Gripper coupling on the BendMaster

    • Sensors for 4-axis backgauge system

    • Electric drives

    • Double sheet detection

    • NC gripper transfer station

    • Vacuum generation for suction grippers

  • Control

    • TRUMPF PC control with operator terminal

    • Teleservice via modem

    • Operation via screen, mouse, and keyboard

  • Safety

    • Safety fence with access door

World's first bending automation with image recognition for maximum flexibility Sheet metal parts up to 40 kg, 6-axis backgauge sensor technology

Maximum repeat accuracy thanks to angle sensor technology (ACB) in automated operation

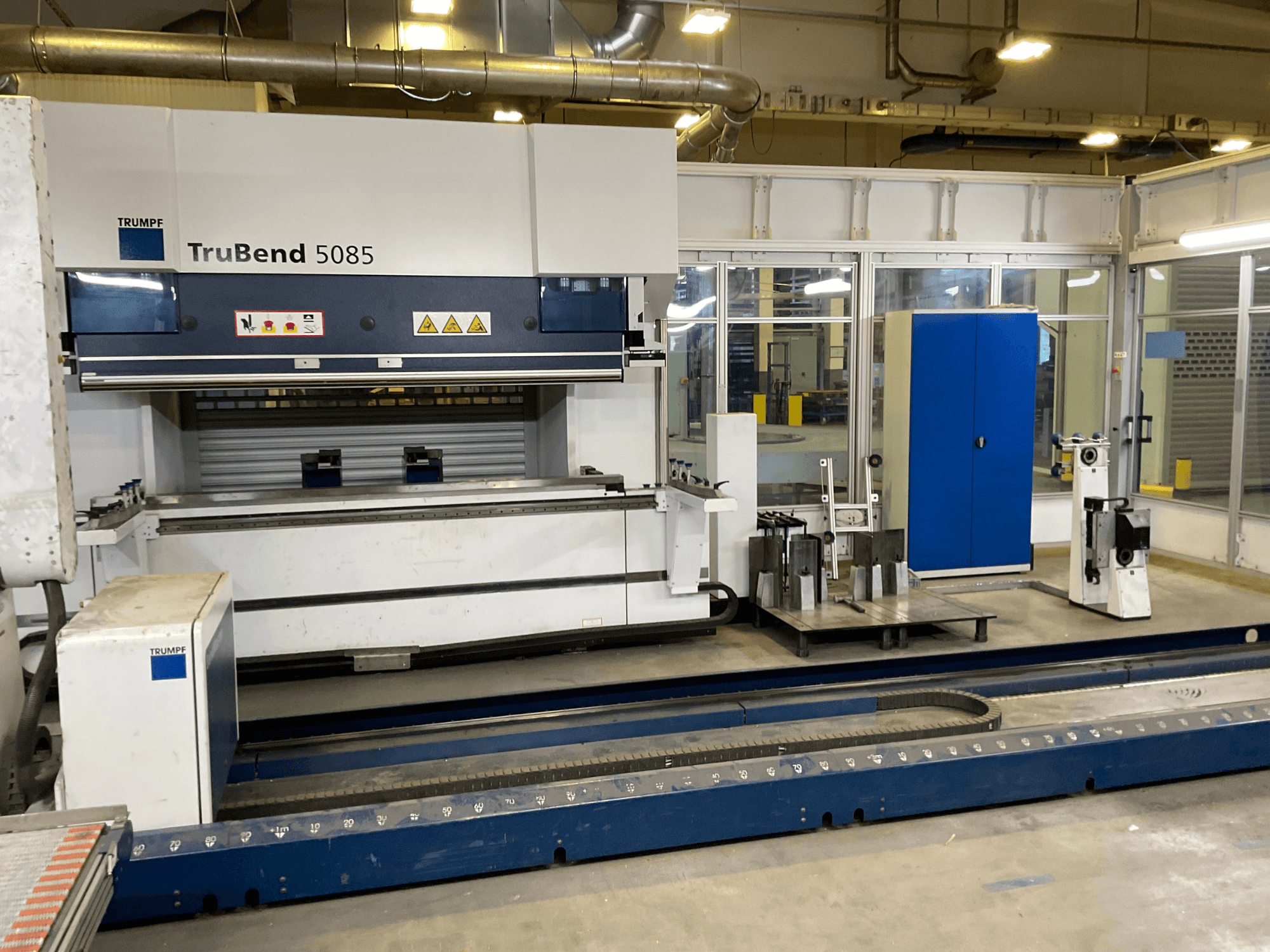

TruBend 5085 (2720 mm x 850 kN) with BendMaster 60
