- ➤ Trumpf TruLaser 3030 | Laser Cutting Machine For Sale

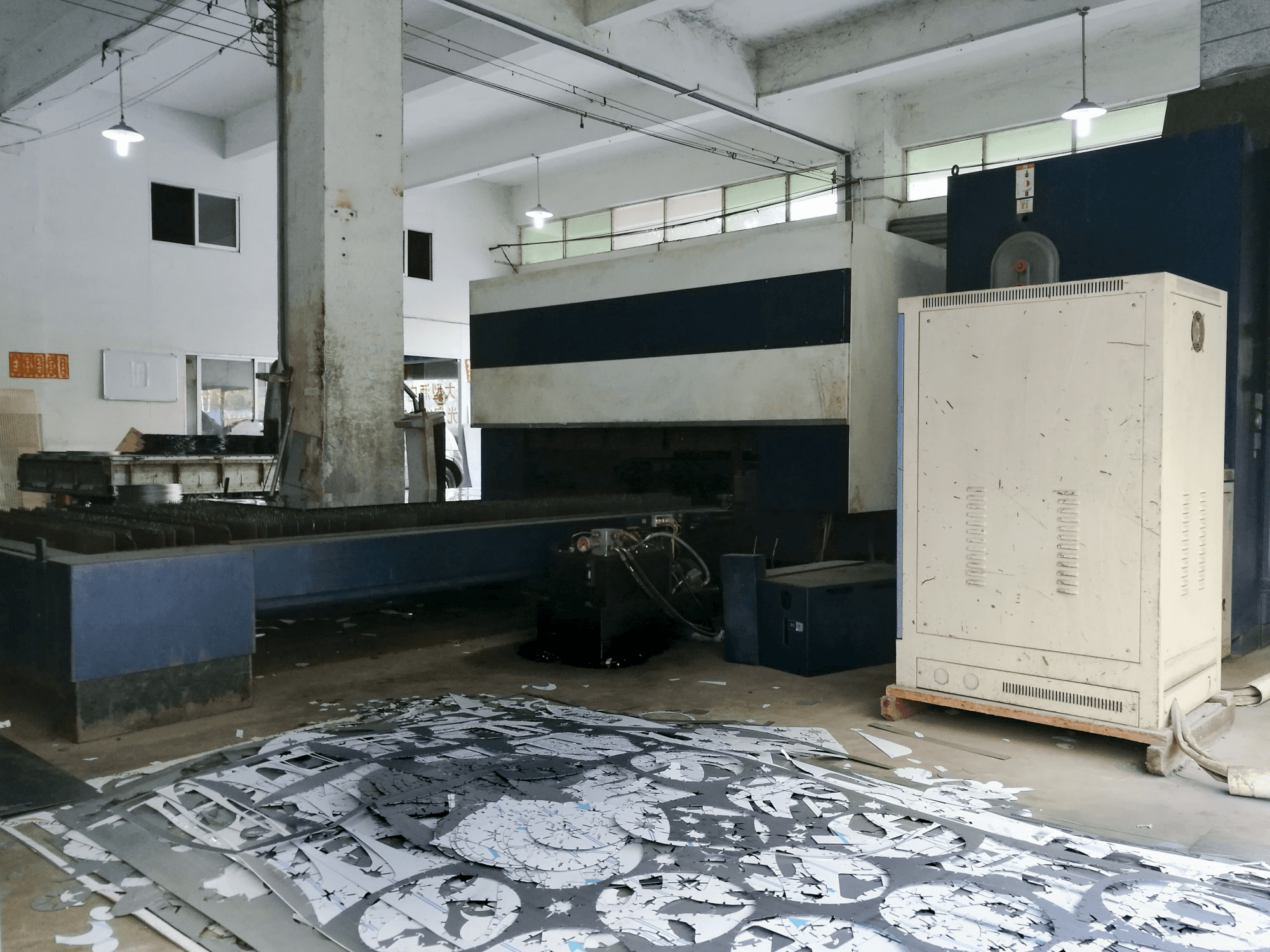

This Trumpf TruLaser 3030 Laser Cutting Machine from 2013 has been utilized for 23934 production hours. With an incorporated German-manufactured laser and a Siemens SINUMERIK 840D Control unit, the model is considered a real all-rounder in the sheet metal working field.
Overview
- brand: TRUMPF
- year: 2013
- MODEL: TruLaser 3030
- production hours: 23934
- application type: Cutting
- Location: China
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 3030
General Data
- Measurements width: 9155 mm
- Measurements depth: 3400 mm
- Measurements height: 2200 mm
- Machine weight: 12000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D
- Interface: USB, Ethernet
Main drive
- Number of spindles: 1
- Laserpower: 4 kW
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Working Feed: 60 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Working Feed: 60 m/min
- Z-AXIS Movement: 115 mm
- Z-AXIS Working Feed: 60 m/min
- X-Y-Simultaneous Working Feed: 85 m/min
- Pa Accuracy: 0.1
- Ps Accuracy: 0.03
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 15 mm
- Aluminum: 10 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 88 kVA
- Air pressure: 6 bar
- He consumption: 13.1 l/h
- CO2 consumption: 1.1 l/h
- N2 consumption: 5.8 l/h
- Lubrication tank: 95 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
