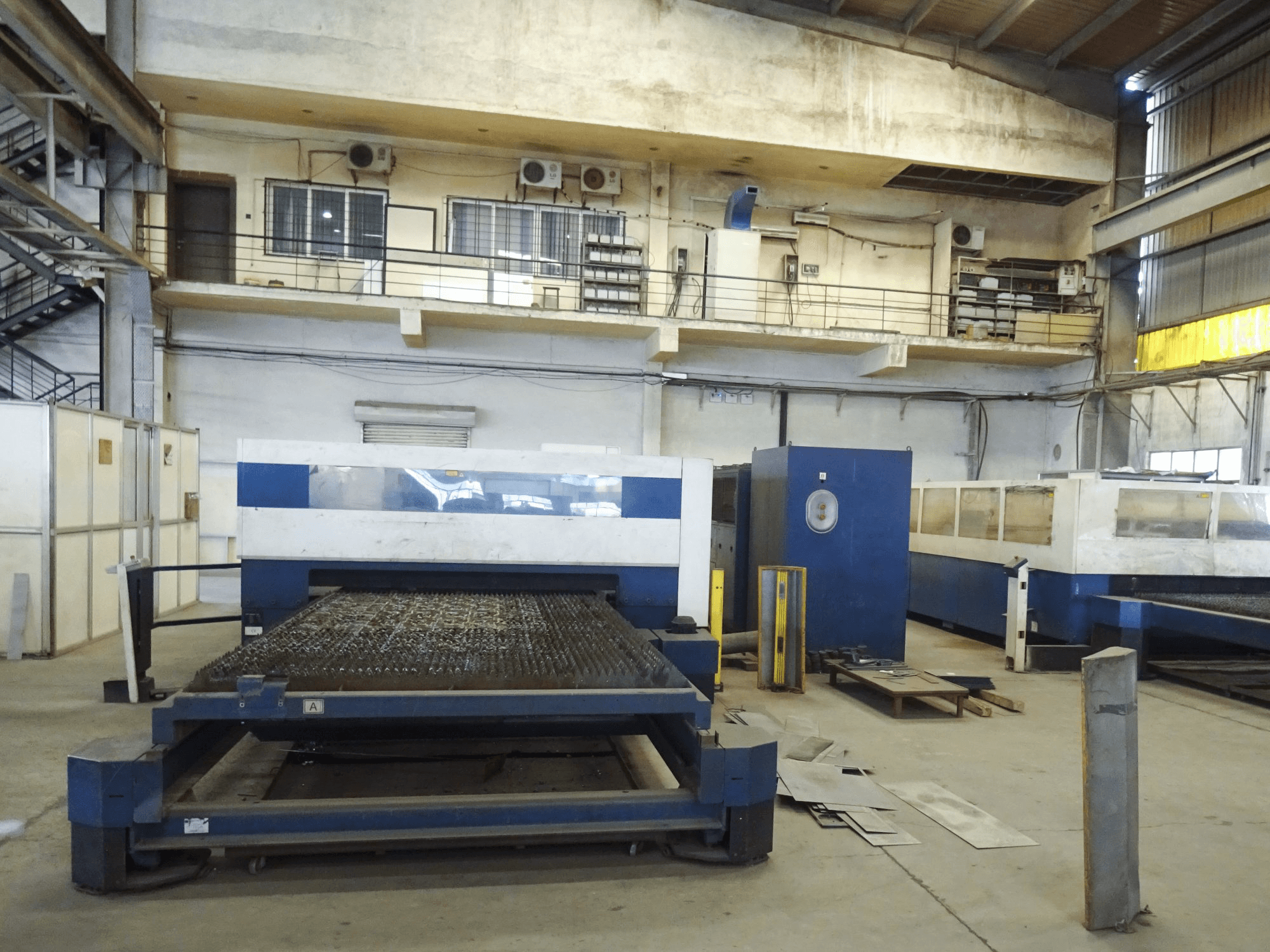

Working room of Trumpf TruLaser 5040 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 5040

Photo Gallery

TRUMPF - TruLaser 5040IN-LAS-TRU-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf TruLaser 5040 Laser Cutting Machine - Used

This Trumpf TruLaser 5040 Laser Cutting Machine from 2010 comes with a Siemens SINUMERIK 840D with Ethernet Interface Control unit and has an operating record of 60000 working hours. In the past, this equipment has worked mostly with mild steel of up to 20 mm of thickness, and was utilized for Job Shop tasks. The TruLaser 5040 is a robust equipment, with a highly competitive price in the Laser Cutting market. A UPS is included as additional equipment.

Overview

brand: TRUMPF
year: 2010
MODEL: TruLaser 5040
production hours: 60000
application type: Cutting
Location: India
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5040

General Data

Measurements width: 5300 mm
Measurements depth: 13000 mm
Measurements height: 2370 mm
Machine weight: 13000 kg

Control Unit

Model: SINUMERIK 840D
Interface: Ethernet
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: Co2
Laser brand: Trumpf

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Machine specific data

Power meas. by software: 5137
Number of cutting heads: 2
Size of cutting head 1: 7.5"
Size of cutting head 2: 10"
Laser turbine details: Turbine with magnetic Bearing
TASC Version: 4

Media

Main electronic connection: 160 kVA
Power consumption: 73 kVA
Air pressure: 10 bar

Additional Equipment

- UPS

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
