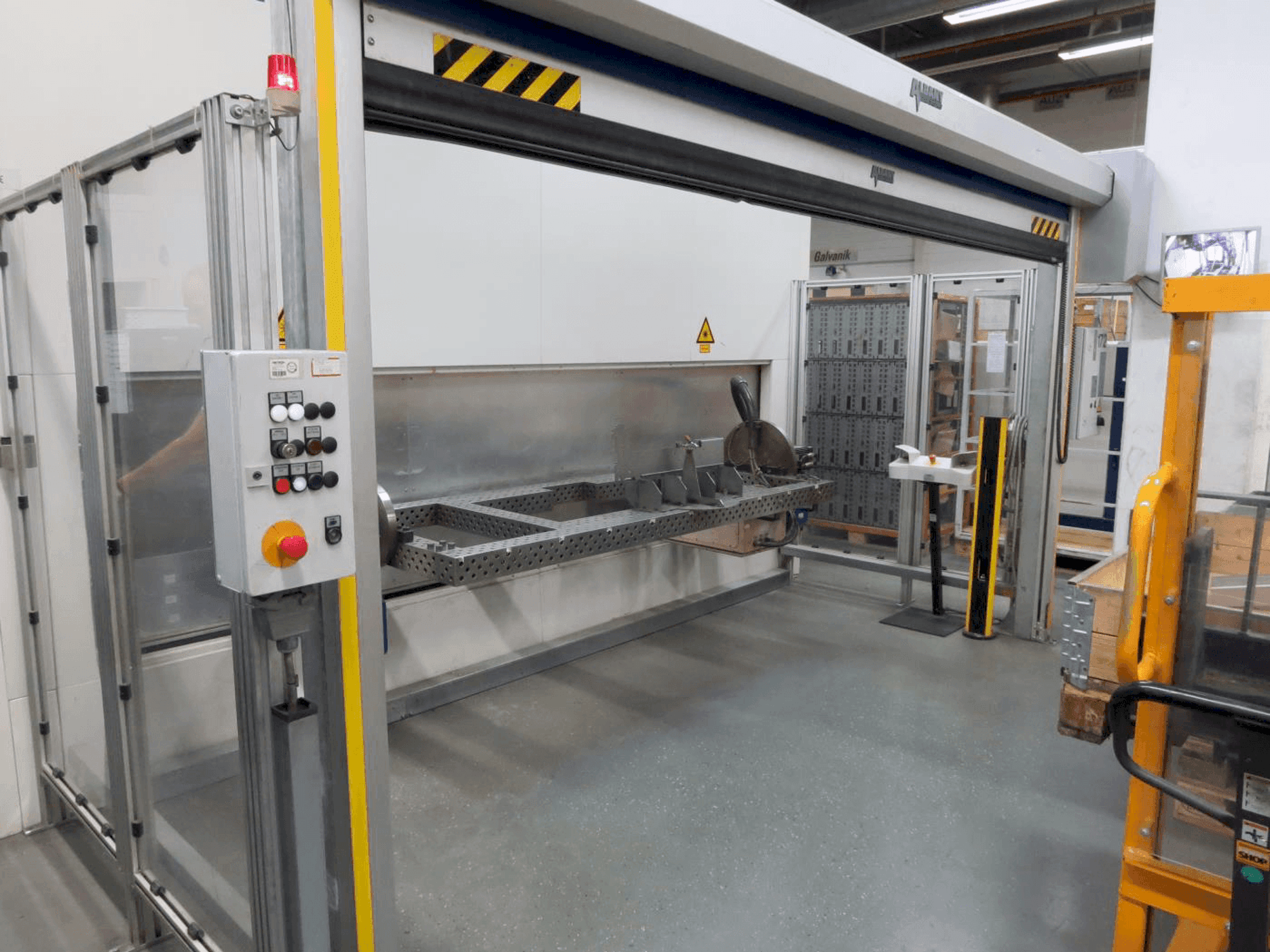

TRUMPF TruLaser Robot 5020

Machine Benefits

• Technical Machine Benefits:
  • - Laser device, beam guidance and shaping trumpf nd:yag laser hl 3006 d, laser light cable llk-b 06, length 40 m
  • - 2 nc rotary axes, each with counter bearing and a clear clamping width of 2000 mm
  • - 1 main rotary axis for turning the components in and out, type handte sf - l4000
  • - Protection of the turning area by means of a roller shutter to the width of the cabin
  • - Protective glass, media supply plate extraction system, robot-compatible
  • - Light-tight integration into the protective cabin, software
  • - Component positioner: double turning positioner dwpv 500ms for holding two component clamping devices
  • - Kuka kr 30/ ha (high accuracy) robot with kr c2 controller, bnc video cable, 10 m long
  • - Fiber diameter 600 mm, air volume 4000 m3/h, integrated, automatic extinguishing system
  • - Floor space requirement incl. Turning positioner: (lxw): 4800mm x 4300mm
• Qualitative Machine Benefits:
  • - Laser light-proof protective cabin with roof, ccd camera, b/w monitor, adjustable crosshairs, camera supply cable, 30 m long, and bnc video cable, 10 m long.
  • - Lens with focal length f = 200 mm, protective glass cassette for easy replacement of the protective glass
  • - Beam guidance and shaping, optical protection by laval crossjet, six-axis industrial robot mechanics with articulated kinematics
  • - Processing optics beo 7000210p for laser welding, designed for the specified payload and moments of inertia of 30 kg
  • - Main time parallel loading and unloading of components, design of the robot cell with suspended robot.
  • - Expandable up to a maximum of 4 laser light cables, collimation 0° with defocusing and observation by camera.
  • - Pilot laser with plasma sensor holder, control of the pilot laser via laser operating
  • - Winlas laser programming software. Storage option for 99 laser programs.
  • - Output power: 3000 watts at the workpiece, 4000 watts in total with 1000 watts control reserve
  • - Optics setup for 1 laser light cable with fast switch (50 ms switching time), optics setup can be
