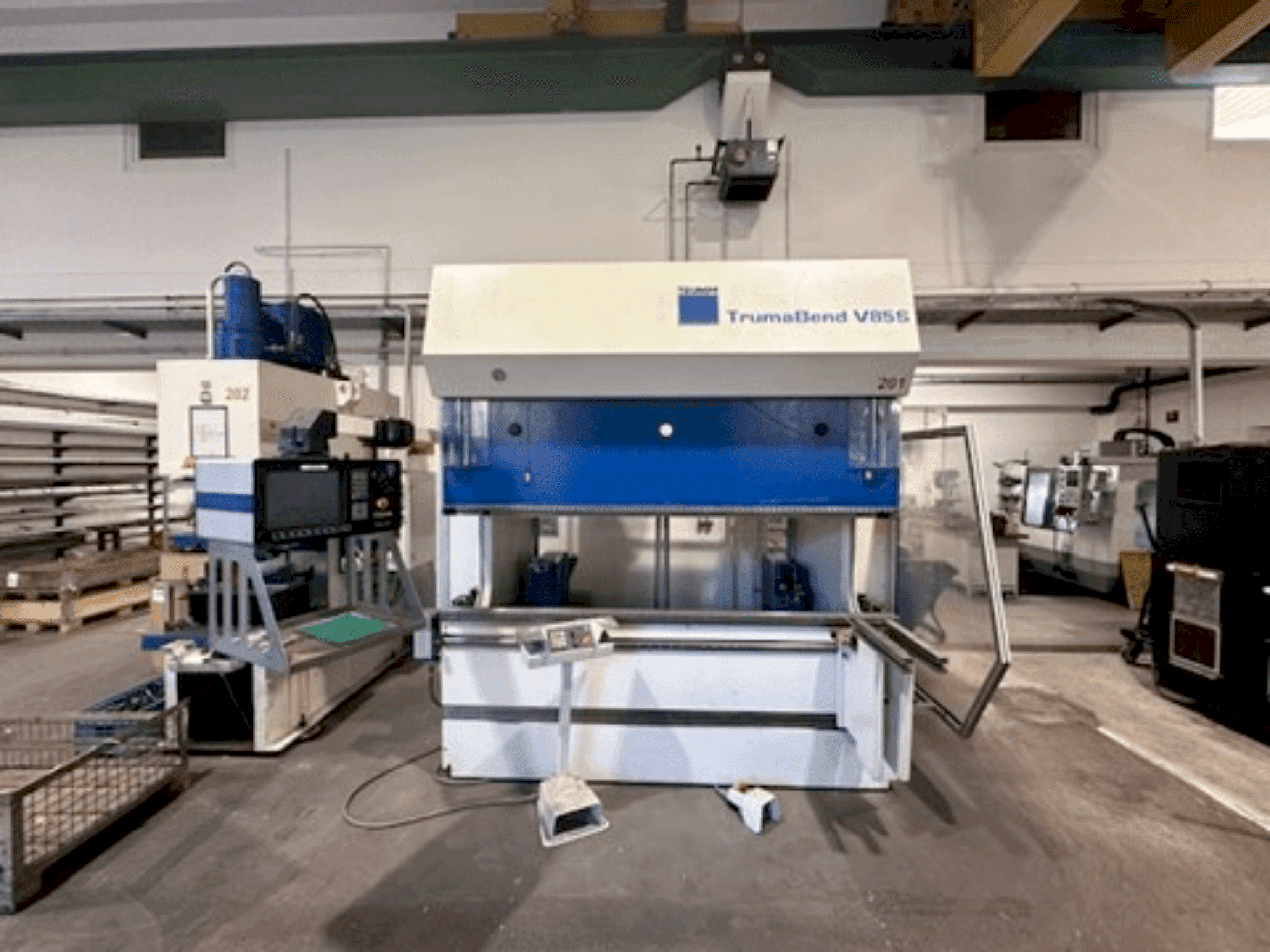

TRUMPF - TrumaBend V85SAT-BEN-TRU-1998-00001

Additional Equipment

• - Extended Installation Height and Stroke: Additional 150 mm each
• - 2nd Foot Switch

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Drive type: electro-hydraulic twin cylinder with independent y1/y2 movement
  • - Power requirements: 11 kw / 415 v / 50 hz
  • - Design: down-stroking with dual cylinder electro-hydraulic ram drive via proportional valves
  • - Inclination of beam (y1/y2): +10 mm
  • - Bending force: 850 kn // gap between columns: 2260 mm // throat depth: 410 mm // stroke length: 215 mm // open height: 385 mm
  • - Bed width: 120 mm
  • - Ram measurement: incremental with deflection compensation
  • - Tool holders: self-centering top tool holder, hardened bottom tool holder
  • - Hydraulic tool clamping: hydraulic clamping for both top and bottom tools
  • - Safety features: safety screens, light barriers, single/double break modes // front support brackets: two quick-adjustable brackets

Extra information

• - Back Gauge: CNC-controlled ‘X’ and ‘R’ axis back gauge with safe 2-finger adjustment X-axis Back Gauge Travel: 600 mm Maximum X Distance: 860 mm R-axis Vertical Travel: 250 mm Back Gauge Travel Speed: 500 mm/sec R-axis Speed: 300 mm/sec Z1/Z2 Axis: CNC-controlled, asymmetric finger adjustment Working Speeds: Approach Speed: 200 mm/sec Operation Speed: 1–10 mm/sec Return Speed: 135 mm/sec
