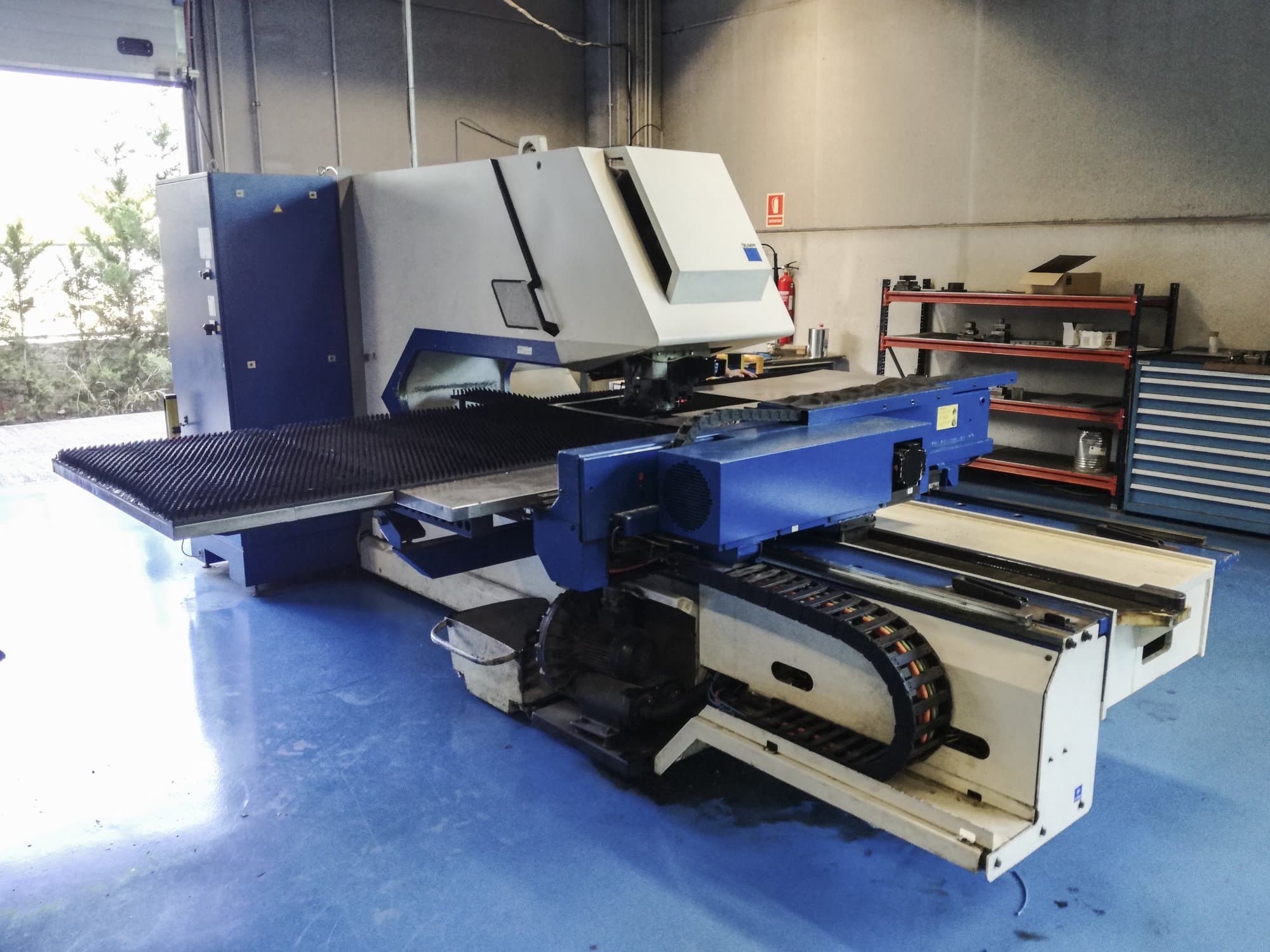

Left view of Trumpf Trumatic 2000 R Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 2000 R

TRUMPF - Trumatic 2000 RES-PUN-TRU-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 2000 R Turret Punching Machine

This Trumpf Trumatic 2000 R Turret Punching Machine from 2003 was manufactured in Germany and has a total of approximately 38000 production hours. Operated through a Trumpf Control unit, this machine has mainly worked with steel and aluminium sheets with up to 2 mm of thickness.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic 2000 R
production hours: 38000
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 2000 R

General Data

Measurements width: 5530 mm
Measurements depth: 2300 mm
Measurements height: 2250 mm
Machine weight: 9200 kg

Control Unit

Brand: TRUMPF

Main drive

Punching force: 180 kN
Maximum sheet thickness: 4 mm

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1250 mm

Table

Outer length: 4000 mm
Outer width: 1250 mm

Max Material thickness

Steel: 4 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
