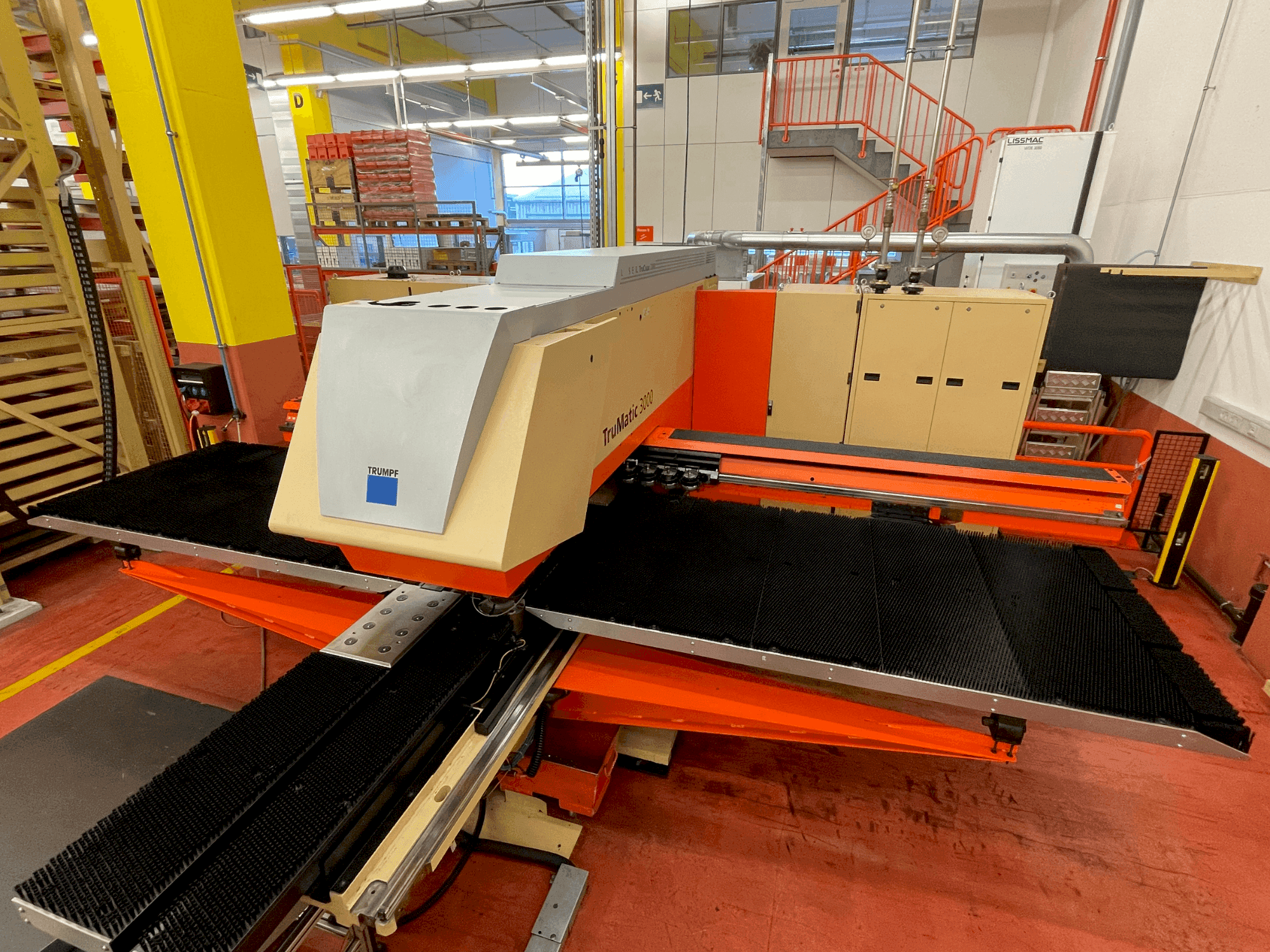

Front view of TRUMPF TruMatic 3000  machine

TRUMPF - TruMatic 3000DE-BEN-TRU-2009-00001

29,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This TRUMPF TruMatic 3000 was manufactured in 2009. A versatile punch-laser combination, it features a stable C-frame, high-precision coordinate guidance, and a linear magazine with 19 tool positions. It supports a maximum sheet thickness of 4 mm and punching force of 165 kN. Ideal for operations requiring repositioning, it offers a working area up to 2500 x 1250 mm. A great opportunity for those needing robust and precise machining capabilities. Contact us for further details regarding this punch-laser combination.

Overview

  • brand: TRUMPF
  • year: 2009
  • MODEL: TruMatic 3000
  • application type: Punching
  • Location: Germany
  • machine type: Punch-Laser Combination
  • availability: Immediately
  • control unit brand: BOSCH

Technical Information - TRUMPF TruMatic 3000

Control Unit

  • Model: PNC-P
  • Brand: BOSCH

    Additional Equipment

    • - Linear magazine with 19 tool positions and 2 clamps // Parts flap 300 mm x 500 mm // Good parts box
    • - Chip container // TRUMPF laser TruCoax 2000 CO2 laser // Cooling by means of plate heat exchanger
    • - Laser cutting head with 7.5’ lens // Quick-change cutting head system // FocusLine, NitroLine, SprintLine, ContourLine
    • - Hydraulic punching head // Mono tool holder // Tool spray lubrication // Punch slug extraction // Multi-beam light barriers
    • - Compact dedusting system // 38 RTC cassettes including die plate // Quickset

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X-axis working area: 2500 mm // y-axis working area: 1250 mm
        • - Max. Sheet thickness: 4 mm // max. Punching force: 165 kn
        • - Number of tools: 19 - 190 tools with multitool // max. Punching speed: 600 strokes/min
        • - Stable, easily accessible c-frame // coordinate guidance for high-precision machining // drives with maintenance-free three-phase servomotors
        • - Repositioning device with programmable hold-down device // brush tables // programmable cutting gas pressure
        • - 360° rotation of all tools // tool length compensation // adaptive stroke calibration // deburring and rolling technology
        • - Extended machine equipment // vibration-damped installation

      Extra information

      • - Beam on: 13485 hours Laser on: 49048 hours Max. workpiece weight: 120 kg Max. passage height: Punching mode 35 mm, Laser operation 22 mm Max. speeds: X-axis 90 m/min, Y-axis 60 m/min, Simultaneous 108 m/min Tool change time: Single tool approx. 4.4 sec, MultiTool approx. 2.2 sec Max. punching diameter (single stroke): 76.2 mm on all tool positions Max. forming height: 25 mm Control system: Open control system based on Bosch PNC-P Operating panel with 15’ TFT touch colour screen Programme management, Online help / realisation via VPN Diagnostic functions incl. laser logbook Integrated technology data Teleservice via VPN Data transmission: USB interface and network connection Network connection incl. installation by Teleservice Ethernet: 10 MBit/s or 100 MBit/s Network connection: RJ45 or BNC (via additional adapter) Network protocols: NetBeui, TCP/IP or NFS

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
