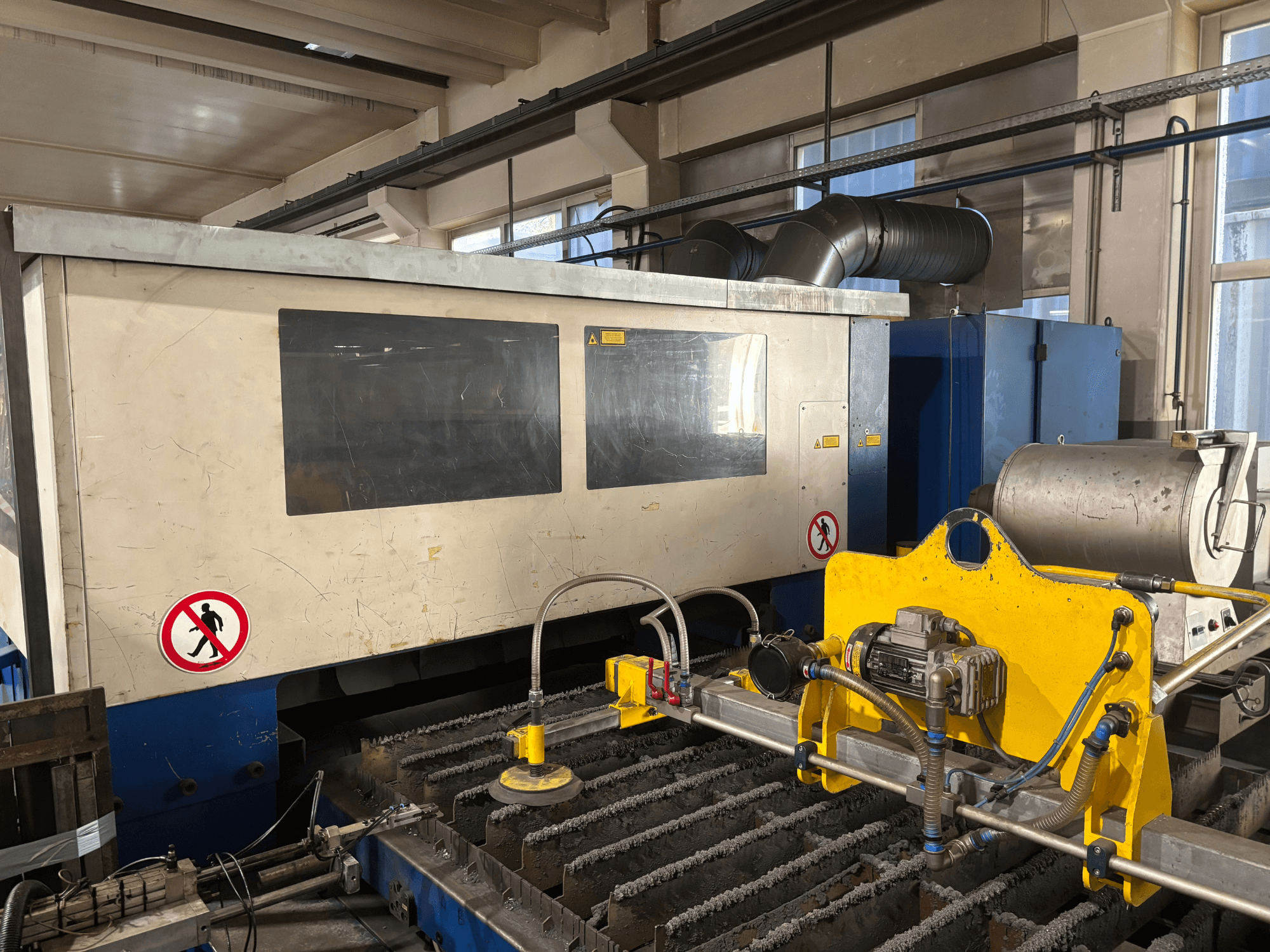

CO2 laser cutting machine manufactured in 2001. This TRUMPF Trumatic L3030 features a laser power of up to 3208 W in CW mode, providing efficient cutting capabilities. It includes a robust control system (TASC3) and operates on a 3-phase AC supply. If you are looking to get high-quality cutting capabilities, consider the TRUMPF Trumatic L3030 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: Trumatic L3030
- production hours: 65000
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - TRUMPF Trumatic L3030
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 3.2 kW
Additional Information
Electrical
Supply voltage: 400 V
Phases: 3-phase AC
Frequency: 50 Hz
Rated power: 73 kVA
Rated current: 105 A
Maximum fuse protection: 125 A
Control voltage: 24 V DC
Control
Control system: TASC3
Control software version: 2.4
Laser performance
CW mode power:
100%: 3208 W
85%: 2756 W
75%: 2407 W
Pulsed (5 kHz) power:
100%: 3208 W
75%: 2416 W
50%: 1610 W
25%: 810 W
10%: 328 W
5%: 157 W
1%: 0 W
RF/drive
Reflected RF power: 0.3 kW
Maximum CW RF amplitude: 100%
Switching frequency (CW): 50 kHz
Maximum pulse voltage: 10,000 V
Pressure and leakage
Operating pressure limits: 20.01–27.00 kPa
Maximum turbine pressure: 200 hPa
Leakage rate: 0.04 hPa/min
Thermal/CPU
Maximum CPU temperature: 49 °C
Actual CPU temperature: 43 °C
Optics/Alignment
Maximum beam alignment time: 600 s
Hours
Spindle hours: 65,000 h
Additional equipment
RIEDEL chiller (cooling system) (2001), Type: L 15/21 TR3
Supply voltage: 400 V
Phases: 3-phase
Frequency: 50 Hz
Nominal current: 42 A
Protection class: IP54
Refrigerant: R134a
Refrigerant charge: 11.5 kg
Maximum water pressure: 20.2 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
