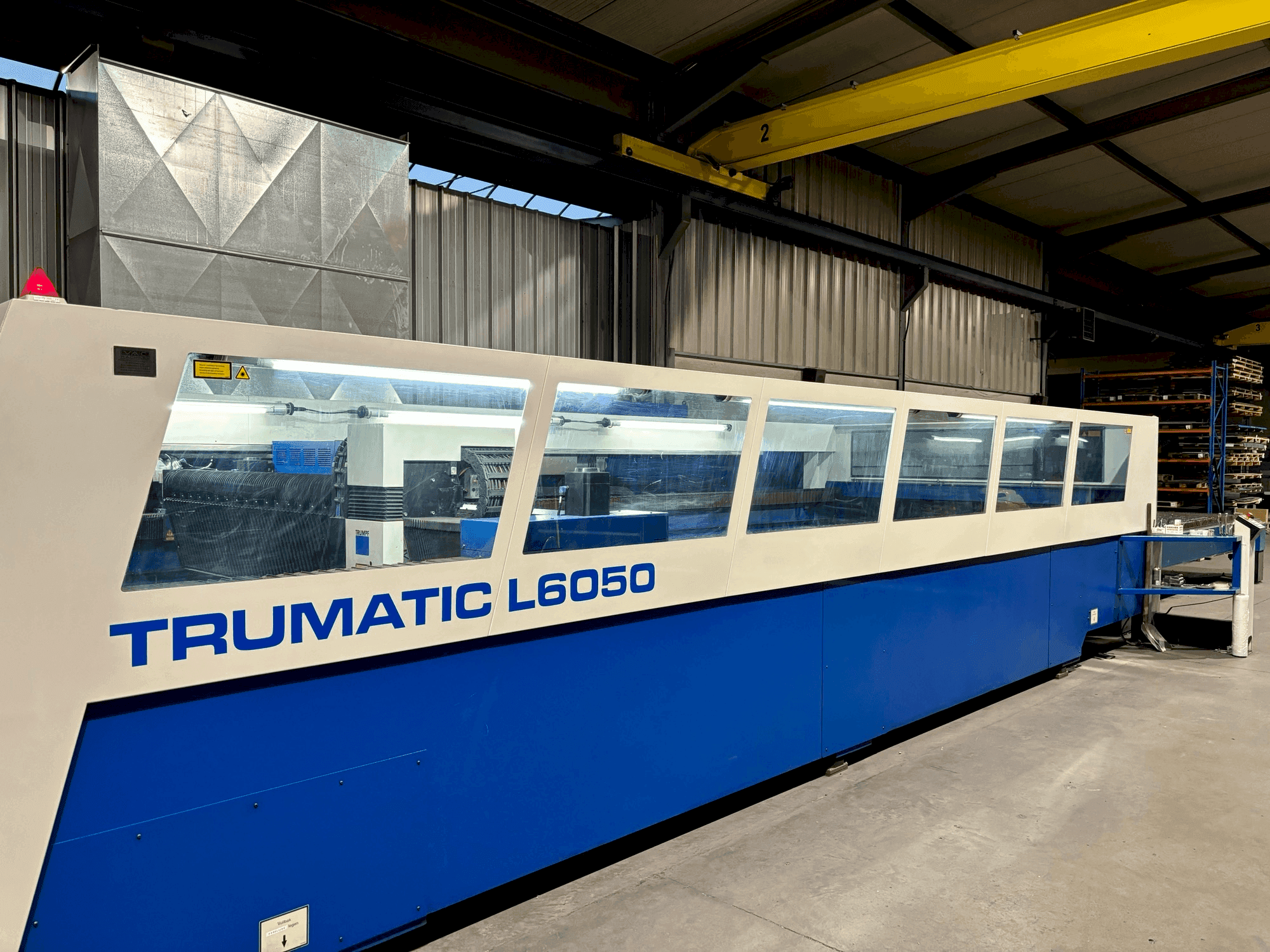

Front view of TRUMPF Trumatic L6050  machine

TRUMPF - Trumatic L6050BE-LAS-TRU-2006-00002

40,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This TRUMPF Trumatic L6050 was manufactured in 2006. A robust laser cutting machine featuring a SIEMENS SINUMERIK 840D controller, it handles a maximum workpiece weight of 1.900 kg. It efficiently cuts through mild steel up to 20 mm, stainless steel up to 15 mm, and aluminium up to 10 mm. Ideal for large-scale operations with a working area of 6.000 x 2.000 mm. For more information about this laser cutting machine, please reach out to us.

Overview

  • brand: TRUMPF
  • year: 2006
  • MODEL: Trumatic L6050
  • application type: Laser Cutting
  • Location: Belgium
  • machine type: Laser Cutting Machines (CO2)
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - TRUMPF Trumatic L6050

General Data

  • Measurements width: 5200 mm
  • Measurements depth: 16100 mm
  • Measurements height: 2000 mm
  • Machine weight: 21500 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumerik 840D

Main drive

  • Laserpower: 5 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 6000 mm
  • Y-AXIS Movement: 2000 mm
  • Z-AXIS Movement: 115 mm

Workpiece

  • Workpiece weight: 1900 kg

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 15 mm
  • Aluminum: 10 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Laser type: co2
      • - Beam on hours: 25,354
      • - Laser on hours: 39,358
      • - Positioning speed x/y: 60 m/min
      • - Simultaneous positioning speed: 85 x+y m/min

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
