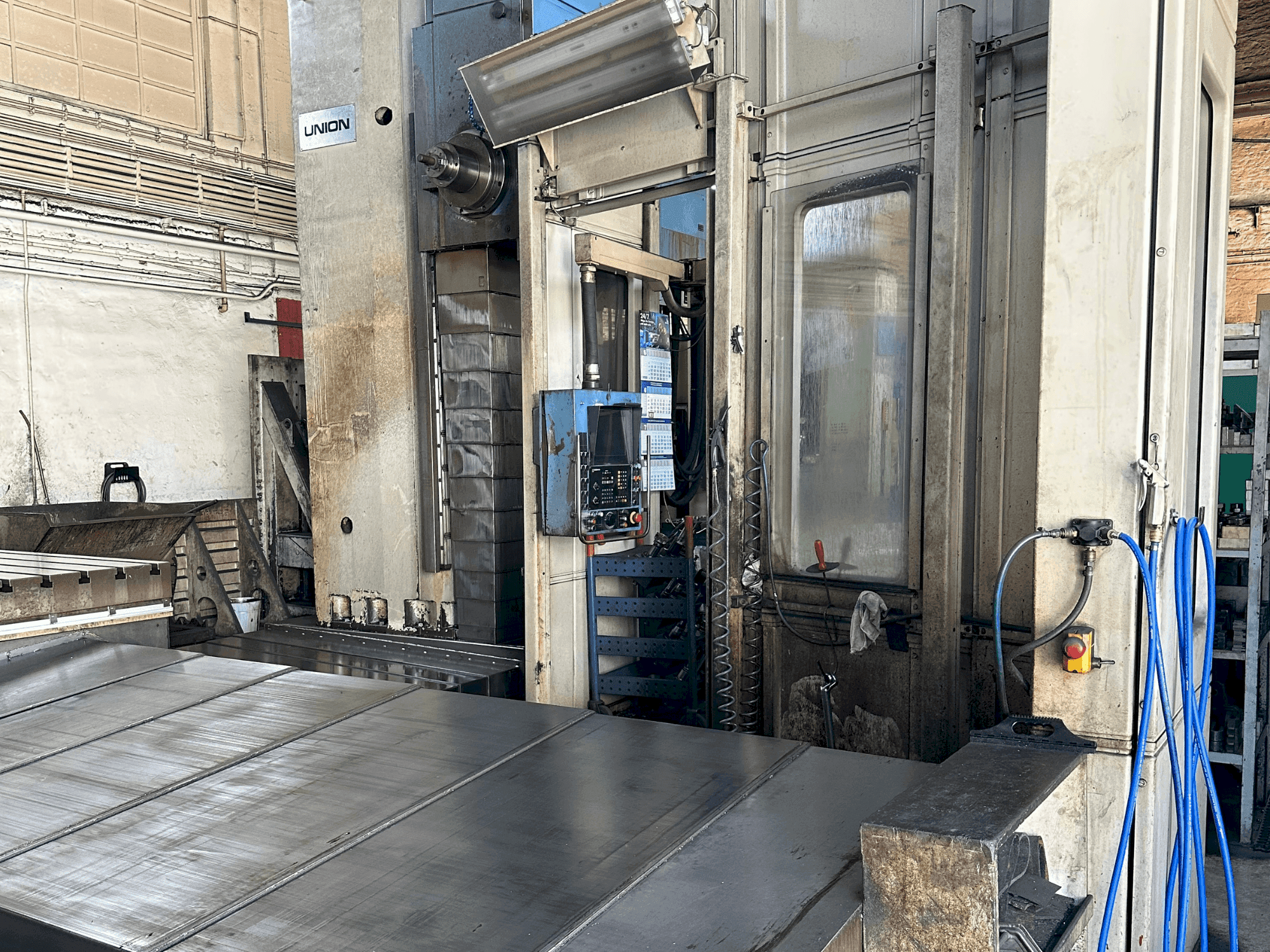

UNION - BFK 150/2DE-MIL-UNI-1991-00001

Extra Information

Travel Paths: Vertical movement of the spindle head (Y-axis): 1600 mm (2000). Longitudinal movement of the stand (Z-axis): 1000 mm (1600). Boring spindle movement (W-axis): 700 mm. Feed Rates: Continuous feed for Y and Z axes: 1 to 7099 mm/min. Spindle: Tool clamping force: 25000 N. Maximum drilling diameter: 500 mm. Electrical System: Mains voltage: 380 VAC ± 10% (other voltages are possible). Frequency: 50 Hz ± 2%. Connection power: BFK-size 130: 80 kW. BFK-size 150: 100 kW. Primary fuse protection: 200 A (at 380 VAC). Hydraulic System: Contains the complete pressure flow generation, treatment, and distribution. It is housed in a separate hydraulic unit with a storage station. Clamping Surface: 1250 x 1600 mm. 1600 x 2000 mm. Max. Clamping Load: Even load distribution: 8000 kg and 12500 kg, respectively. Uneven load distribution (on half the table surface): 4000 kg and 6000 kg, respectively. Max. Mass Moment of Inertia: 3000 kgm² and 7000 kgm². Max. Loading Torque: 19000 N and 35000 N when the clamping table is locked. Feed and Rapid Traverse: Continuous feed (X-axis): 1 to 7099 mm/min. Rapid traverse (X-axis): 7100 mm/min. Interpolation: Linear and circular. 3D interpolation. Helical interpolation. Cylinder interpolation. Programming: Input precision: 0.001 mm for linear axes and 0.001° for rotary axes. Central program memory: 3100 NC sentences. Additional Features: Tool correction for 99 pairs (length and radius). 8 machining cycles and 200 free subprograms. Program simulation and I/O parallel to machining. Extensive diagnostic system for service and troubleshooting.
