UT.MA LC 35E

UT.MA - LC 35EPT-GRI-UT.-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

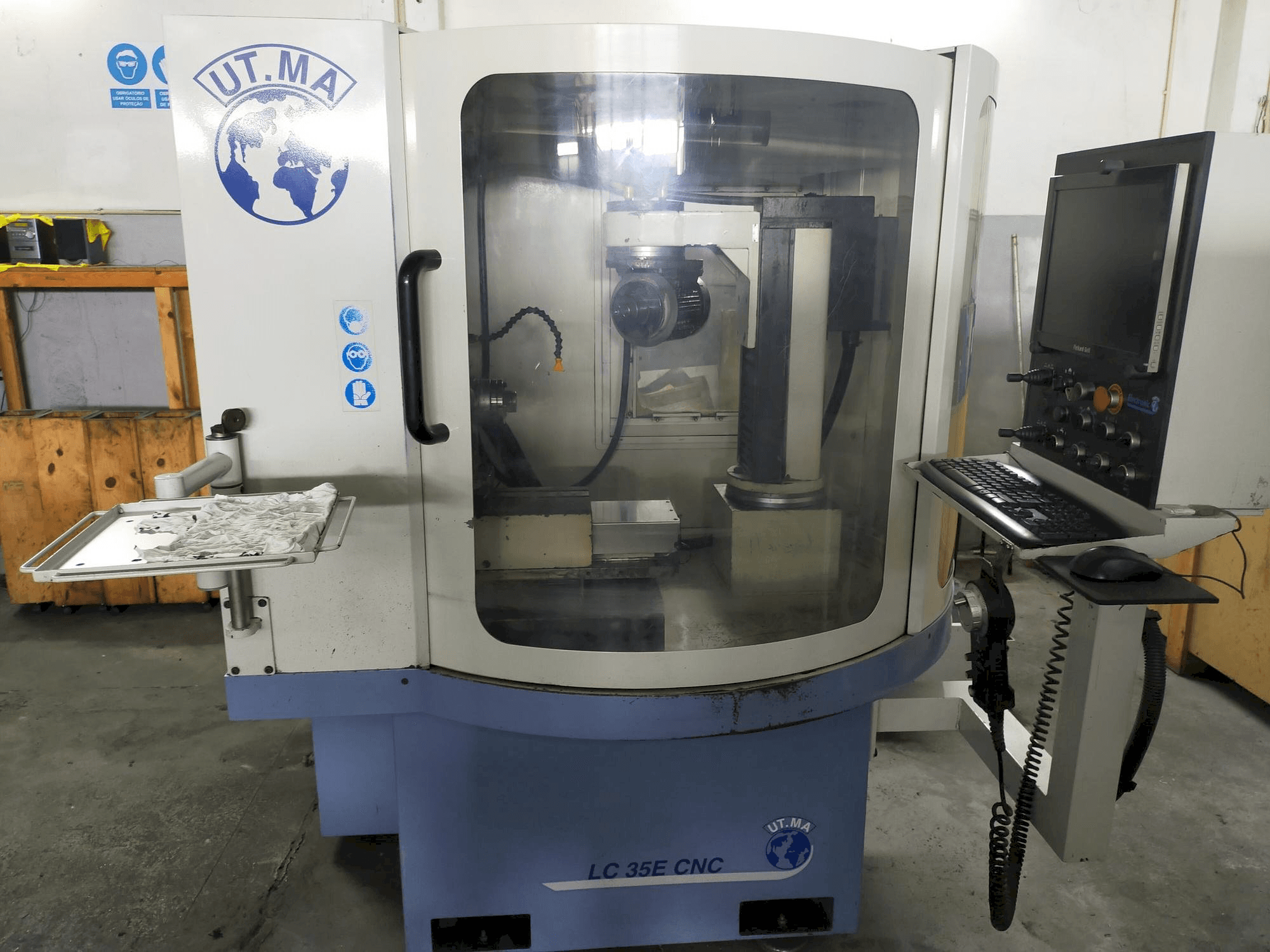

UT.MA LC 35E Grinding machine

This UT.MA LC 35E Grinding machine was built in the year 2009. It is equipped with a Packard Bell control unit. It operates with a grinding spindle speed range between 0 - 6000 rpm. This 4 axis machine includes an exhaustion system, a water tank and a measuring probe by Renishaw.

Overview

brand: UT.MA
year: 2009
MODEL: LC 35E
application type: Grinding
Location: Portugal
machine type: Grinding Machine
availability: Sold

Technical Information - UT.MA LC 35E

General Data

Measurements width: 1800 mm
Measurements depth: 2500 mm
Measurements height: 2000 mm
Machine weight: 1500 KG

Main drive

Tool taper: ISO50
Number of axis: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Exhaustion system
- - Water tank
- - Measuring probe (renishaw)
- - Table movement - x axis: 350 mm
- - Wheel movement - y axis: 300 mm
- - Column movement - z axis: 250 mm
- - Axes movements a - x - (y) - (z) through brushless servo motors
- - Brushless motors: 3. 4 nm
- - Maximium swing over centres: 305 mm
- - Horizontal swivel of grinding spindle: +/-270°
Qualitative Machine Benefits:
- - Grinding motor: 4. 1 kw
- - Grinding spindle speed: 0 - 6000 rpm
- - Maximum wheel diameter: 175 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
